Adjusting The Side Panels

CHASSIS

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲                            ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
ET3P61035
                                                            ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

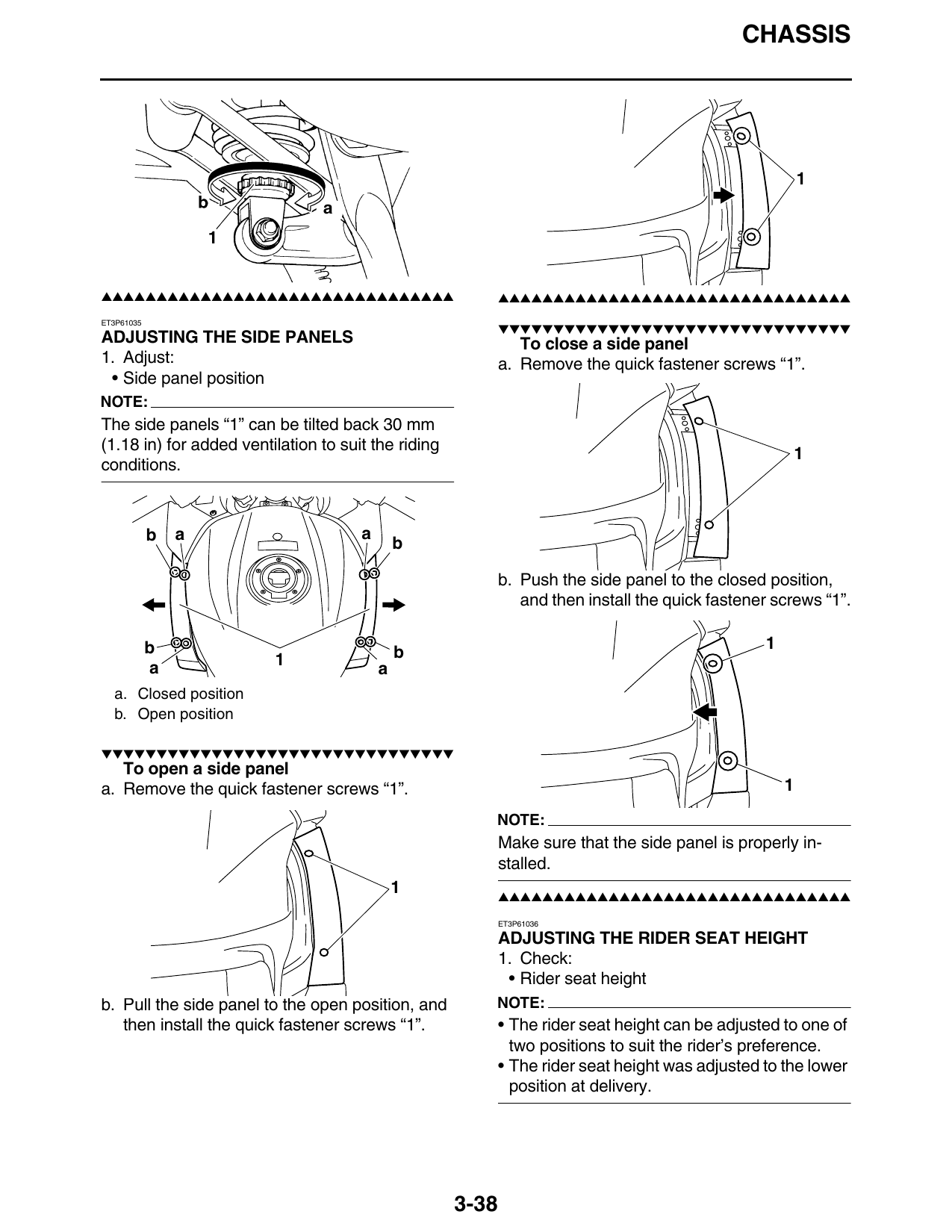

ADJUSTING THE SIDE PANELS                                      To close a side panel
1. Adjust:                                                  a. Remove the quick fastener screws “1”.
 • Side panel position
NOTE:
The side panels “1” can be tilted back 30 mm
(1.18 in) for added ventilation to suit the riding
conditions.

            b   a                     a
                                              b

                                                            b. Push the side panel to the closed position,
                                                               and then install the quick fastener screws “1”.

            b                                                                                    1
                         1                    b
            a                             a
  a. Closed position
  b. Open position

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
   To open a side panel
a. Remove the quick fastener screws “1”.                                                             1

                                                        NOTE:
                                                            Make sure that the side panel is properly in-
                                                            stalled.
                                              1             ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

                                                            ET3P61036

                                                            ADJUSTING THE RIDER SEAT HEIGHT
                                                            1. Check:
                                                             • Rider seat height
b. Pull the side panel to the open position, and        NOTE:
   then install the quick fastener screws “1”.              • The rider seat height can be adjusted to one of
                                                              two positions to suit the rider’s preference.
                                                            • The rider seat height was adjusted to the lower
                                                              position at delivery.

                                                     3-38
                                                                                                 CHASSIS

                    b      a

                                                                                                    a

                                                                                                    b

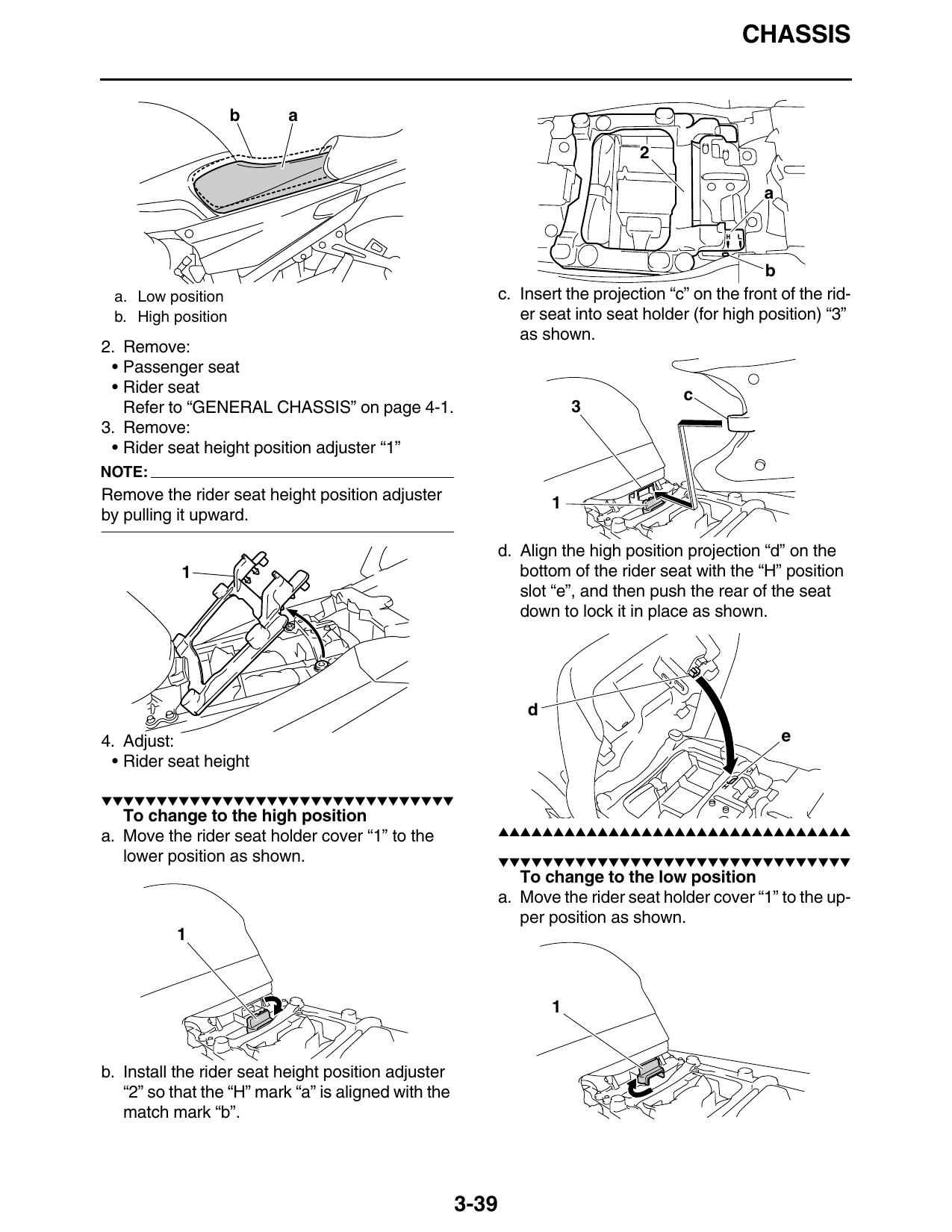

 a. Low position                                             c. Insert the projection “c” on the front of the rid-
 b. High position                                               er seat into seat holder (for high position) “3”
                                                                as shown.
2. Remove:
 • Passenger seat
 • Rider seat                                                                           c
   Refer to “GENERAL CHASSIS” on page 4-1.                               3
3. Remove:
 • Rider seat height position adjuster “1”
NOTE:
Remove the rider seat height position adjuster
by pulling it upward.

                                                             d. Align the high position projection “d” on the
           1                                                    bottom of the rider seat with the “H” position
                                                                slot “e”, and then push the rear of the seat
                                                                down to lock it in place as shown.

                                                                 d
4. Adjust:                                                                                              e
 • Rider seat height

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
   To change to the high position
a. Move the rider seat holder cover “1” to the               ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

   lower position as shown.                                  ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
                                                                To change to the low position
                                                             a. Move the rider seat holder cover “1” to the up-
                                                                per position as shown.

b. Install the rider seat height position adjuster
   “2” so that the “H” mark “a” is aligned with the
   match mark “b”.

                                                      3-39
