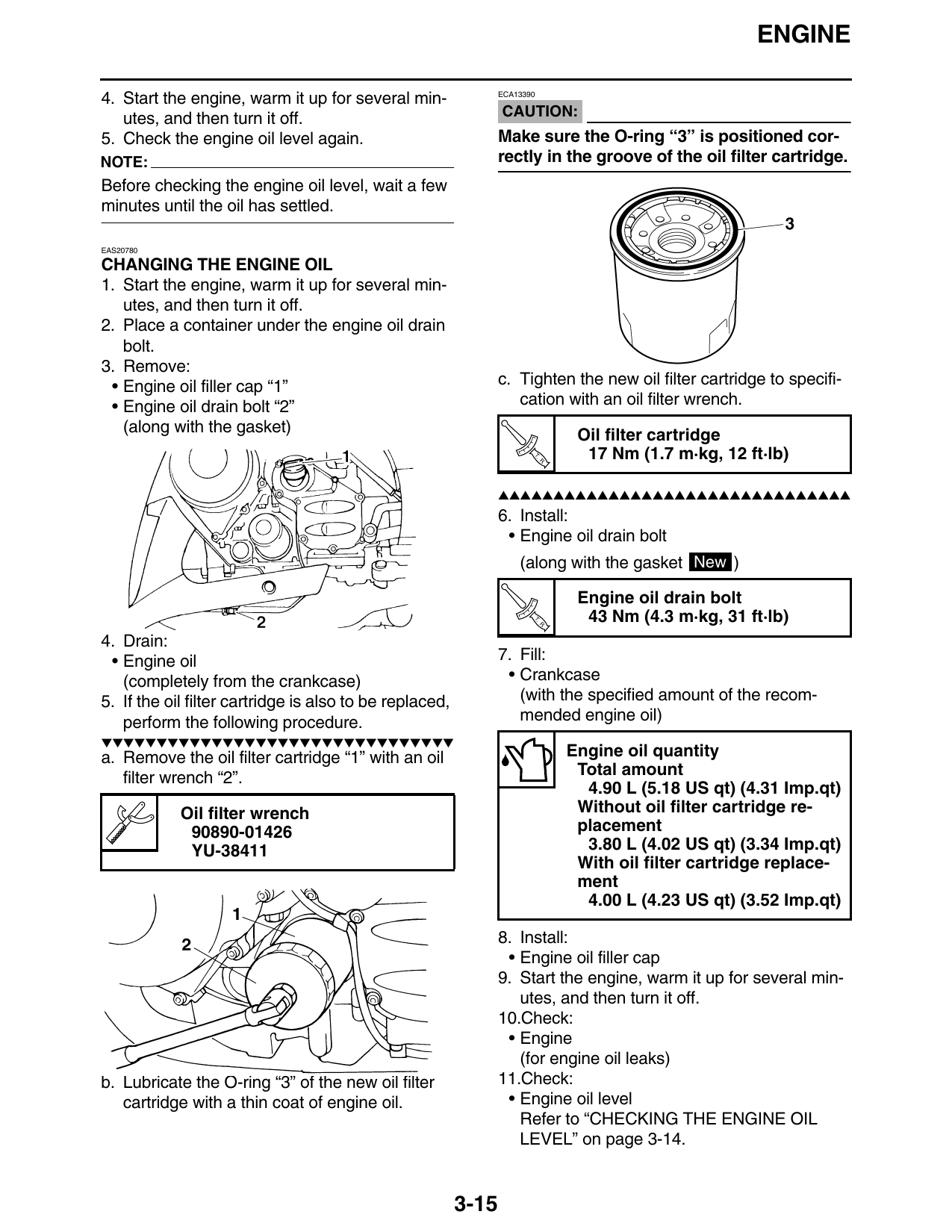

Changing The Engine Oil

ENGINE

4. Start the engine, warm it up for several min-                ECA13390

   utes, and then turn it off.                                  CAUTION:
5. Check the engine oil level again.                            Make sure the O-ring “3” is positioned cor-
NOTE:                                                           rectly in the groove of the oil filter cartridge.
Before checking the engine oil level, wait a few
minutes until the oil has settled.

EAS20780

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
   utes, and then turn it off.
2. Place a container under the engine oil drain
   bolt.
3. Remove:
 • Engine oil filler cap “1”                                    c. Tighten the new oil filter cartridge to specifi-
 • Engine oil drain bolt “2”                                       cation with an oil filter wrench.
   (along with the gasket)                                                       Oil filter cartridge
                                                                       T.
                                                                           R.
                                                                                  17 Nm (1.7 m·kg, 12 ft·lb)

                                                                ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
                                                                6. Install:
                                                                 • Engine oil drain bolt
                                                                    (along with the gasket New )

                                                                                 Engine oil drain bolt
                                                                       T.
                                                                           R.
                                                                                  43 Nm (4.3 m·kg, 31 ft·lb)
4. Drain:
 • Engine oil                                                   7. Fill:
   (completely from the crankcase)                               • Crankcase
5. If the oil filter cartridge is also to be replaced,             (with the specified amount of the recom-
   perform the following procedure.                                mended engine oil)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the oil filter cartridge “1” with an oil                              Engine oil quantity
                                                                                 Total amount
   filter wrench “2”.
                                                                                  4.90 L (5.18 US qt) (4.31 Imp.qt)
            Oil filter wrench                                                    Without oil filter cartridge re-
             90890-01426                                                         placement
             YU-38411                                                             3.80 L (4.02 US qt) (3.34 Imp.qt)
                                                                                 With oil filter cartridge replace-
                                                                                 ment
                                                                                  4.00 L (4.23 US qt) (3.52 Imp.qt)

                                                                8. Install:
                                                                 • Engine oil filler cap
                                                                9. Start the engine, warm it up for several min-
                                                                   utes, and then turn it off.
                                                                10.Check:
                                                                 • Engine
                                                                   (for engine oil leaks)
b. Lubricate the O-ring “3” of the new oil filter               11.Check:
   cartridge with a thin coat of engine oil.                     • Engine oil level
                                                                   Refer to “CHECKING THE ENGINE OIL
                                                                   LEVEL” on page 3-14.
