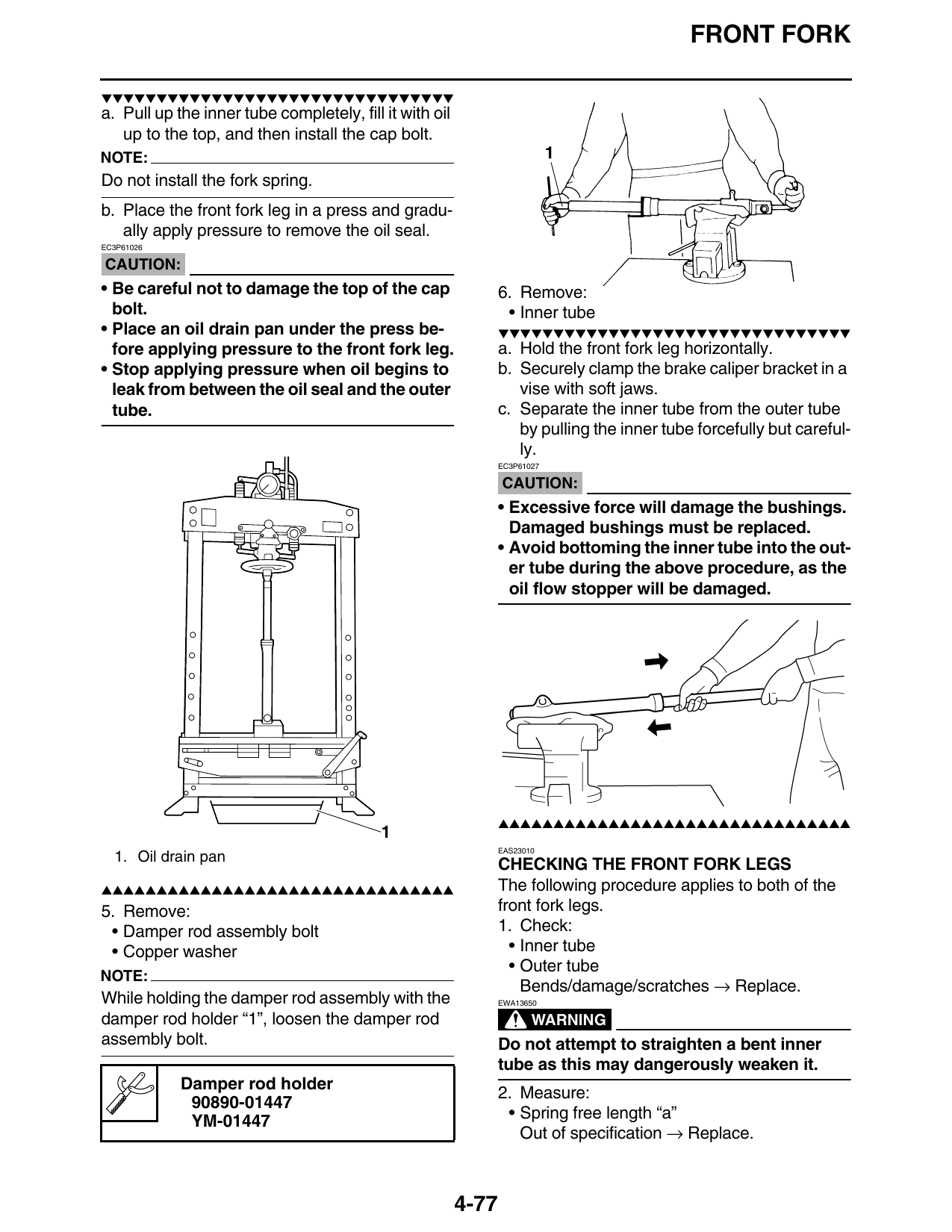

Checking The Front Fork Legs

FRONT FORK

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Pull up the inner tube completely, fill it with oil
   up to the top, and then install the cap bolt.
NOTE:
Do not install the fork spring.
b. Place the front fork leg in a press and gradu-
   ally apply pressure to remove the oil seal.
EC3P61026

CAUTION:
• Be careful not to damage the top of the cap                   6. Remove:
  bolt.                                                          • Inner tube
• Place an oil drain pan under the press be-                    ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
  fore applying pressure to the front fork leg.                 a. Hold the front fork leg horizontally.
• Stop applying pressure when oil begins to                     b. Securely clamp the brake caliper bracket in a
  leak from between the oil seal and the outer                     vise with soft jaws.
  tube.                                                         c. Separate the inner tube from the outer tube
                                                                   by pulling the inner tube forcefully but careful-
                                                                   ly.
                                                                EC3P61027

                                                                CAUTION:
                                                                • Excessive force will damage the bushings.
                                                                  Damaged bushings must be replaced.
                                                                • Avoid bottoming the inner tube into the out-
                                                                  er tube during the above procedure, as the
                                                                  oil flow stopper will be damaged.

                                                                ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
                                                                EAS23010
  1. Oil drain pan
                                                                CHECKING THE FRONT FORK LEGS
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲                                The following procedure applies to both of the
5. Remove:                                                      front fork legs.
 • Damper rod assembly bolt                                     1. Check:
 • Copper washer                                                  • Inner tube
                                                                  • Outer tube
NOTE:
                                                                    Bends/damage/scratches → Replace.
While holding the damper rod assembly with the                  EWA13650

damper rod holder “1”, loosen the damper rod                           WARNING
assembly bolt.                                                  Do not attempt to straighten a bent inner
                                                                tube as this may dangerously weaken it.
            Damper rod holder
                                                                2. Measure:
             90890-01447
             YM-01447                                            • Spring free length “a”
                                                                   Out of specification → Replace.

                                                         4-77
