Maintenance Of The Front Wheel Sensor And Sensor Rotor

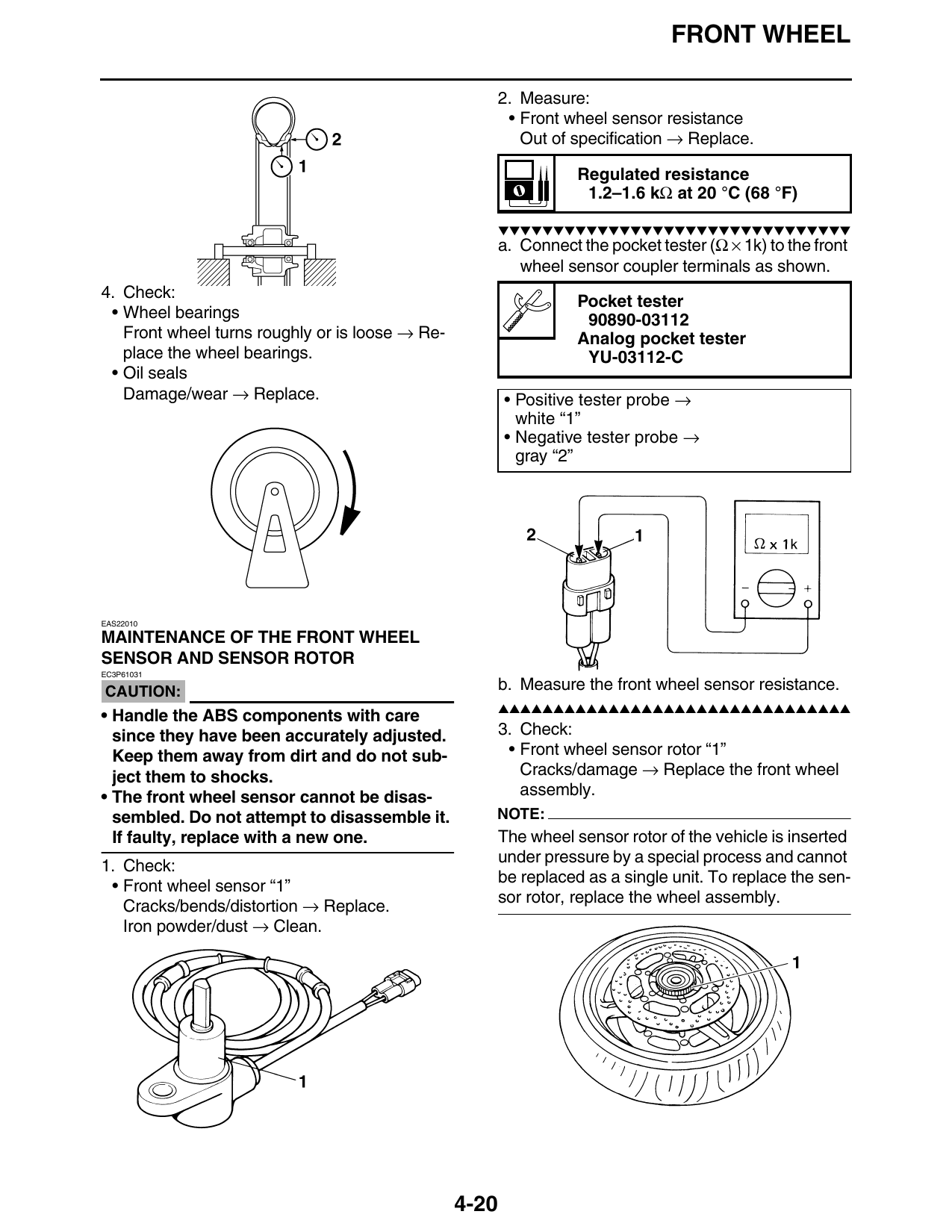

Fragment manuala — str. 207
📋 Tekst do skopiowania / wyszukiwania
FRONT WHEEL
2. Measure:
• Front wheel sensor resistance
Out of specification → Replace.
Regulated resistance
1.2–1.6 kΩ at 20 °C (68 °F)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 1k) to the front
wheel sensor coupler terminals as shown.
4. Check:
Pocket tester
• Wheel bearings 90890-03112
Front wheel turns roughly or is loose → Re- Analog pocket tester
place the wheel bearings. YU-03112-C
• Oil seals
Damage/wear → Replace. • Positive tester probe →
white “1”
• Negative tester probe →
gray “2”
EAS22010
MAINTENANCE OF THE FRONT WHEEL
SENSOR AND SENSOR ROTOR
EC3P61031
CAUTION: b. Measure the front wheel sensor resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
• Handle the ABS components with care
since they have been accurately adjusted. 3. Check:
Keep them away from dirt and do not sub- • Front wheel sensor rotor “1”
ject them to shocks. Cracks/damage → Replace the front wheel
• The front wheel sensor cannot be disas- assembly.
sembled. Do not attempt to disassemble it. NOTE:
If faulty, replace with a new one. The wheel sensor rotor of the vehicle is inserted
under pressure by a special process and cannot
1. Check:
be replaced as a single unit. To replace the sen-
• Front wheel sensor “1”
sor rotor, replace the wheel assembly.
Cracks/bends/distortion → Replace.
Iron powder/dust → Clean.
4-20
