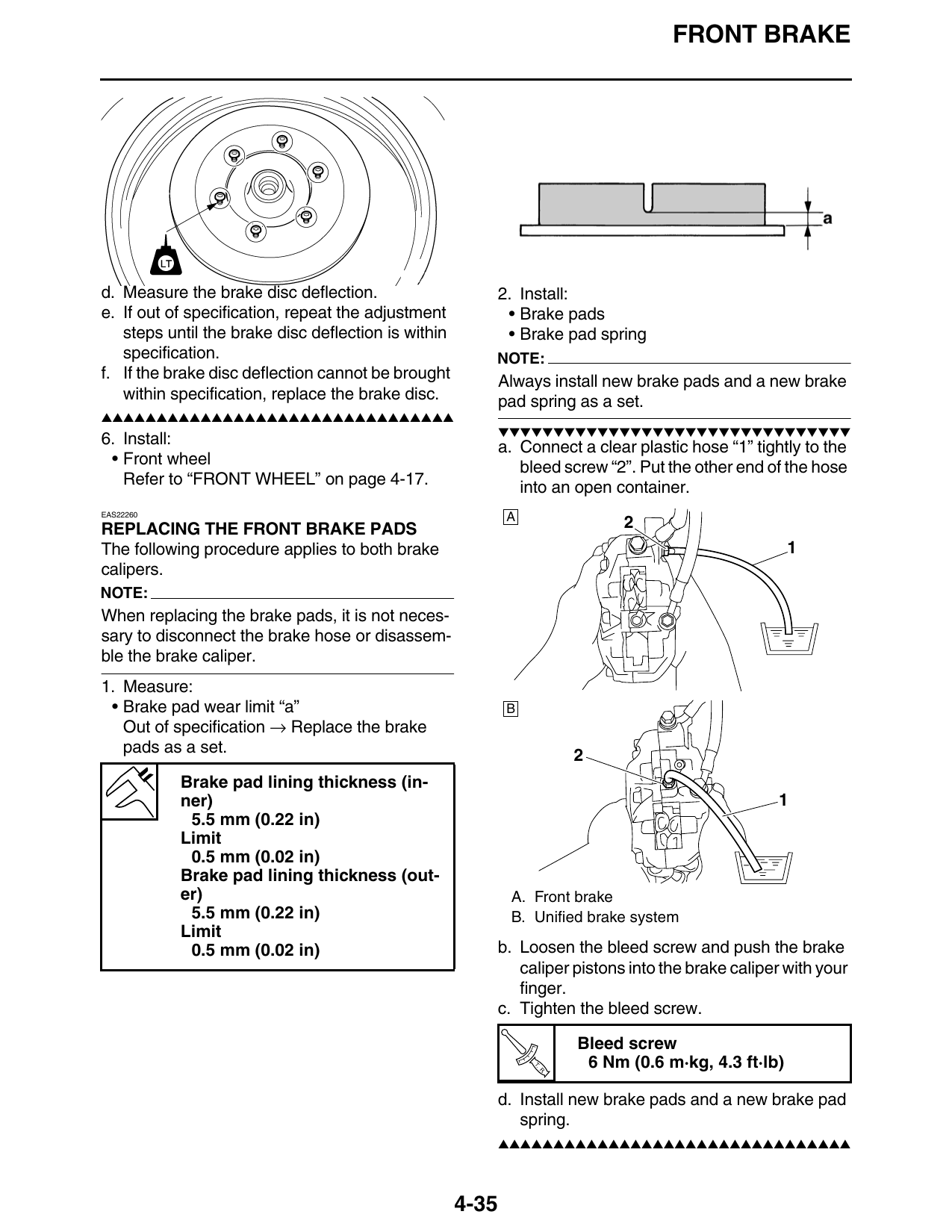

FRONT BRAKE
d. Measure the brake disc deflection. 2. Install:
e. If out of specification, repeat the adjustment • Brake pads
steps until the brake disc deflection is within • Brake pad spring
specification. NOTE:
f. If the brake disc deflection cannot be brought Always install new brake pads and a new brake
within specification, replace the brake disc. pad spring as a set.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
6. Install: a. Connect a clear plastic hose “1” tightly to the
• Front wheel bleed screw “2”. Put the other end of the hose
Refer to “FRONT WHEEL” on page 4-17. into an open container.
EAS22260
A 2
REPLACING THE FRONT BRAKE PADS
The following procedure applies to both brake 1
calipers.
NOTE:
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disassem-
ble the brake caliper.
1. Measure:
• Brake pad wear limit “a” B
Out of specification → Replace the brake
pads as a set. 2
Brake pad lining thickness (in-
ner) 1
5.5 mm (0.22 in)
Limit
0.5 mm (0.02 in)
Brake pad lining thickness (out-
er) A. Front brake
5.5 mm (0.22 in) B. Unified brake system
Limit
0.5 mm (0.02 in) b. Loosen the bleed screw and push the brake
caliper pistons into the brake caliper with your
finger.
c. Tighten the bleed screw.
Bleed screw
T.
R.
6 Nm (0.6 m·kg, 4.3 ft·lb)
d. Install new brake pads and a new brake pad
spring.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4-35
