TRANSMISSION

                                                    5. Check:
           Main axle runout limit                    • Transmission gear movement
            0.08 mm (0.0032 in)                        Rough movement → Replace the defective
                                                       part(s).
                                                    6. Check:
                                                     • Circlips
                                                       Bends/damage/looseness → Replace.
                                                    ET3P61030

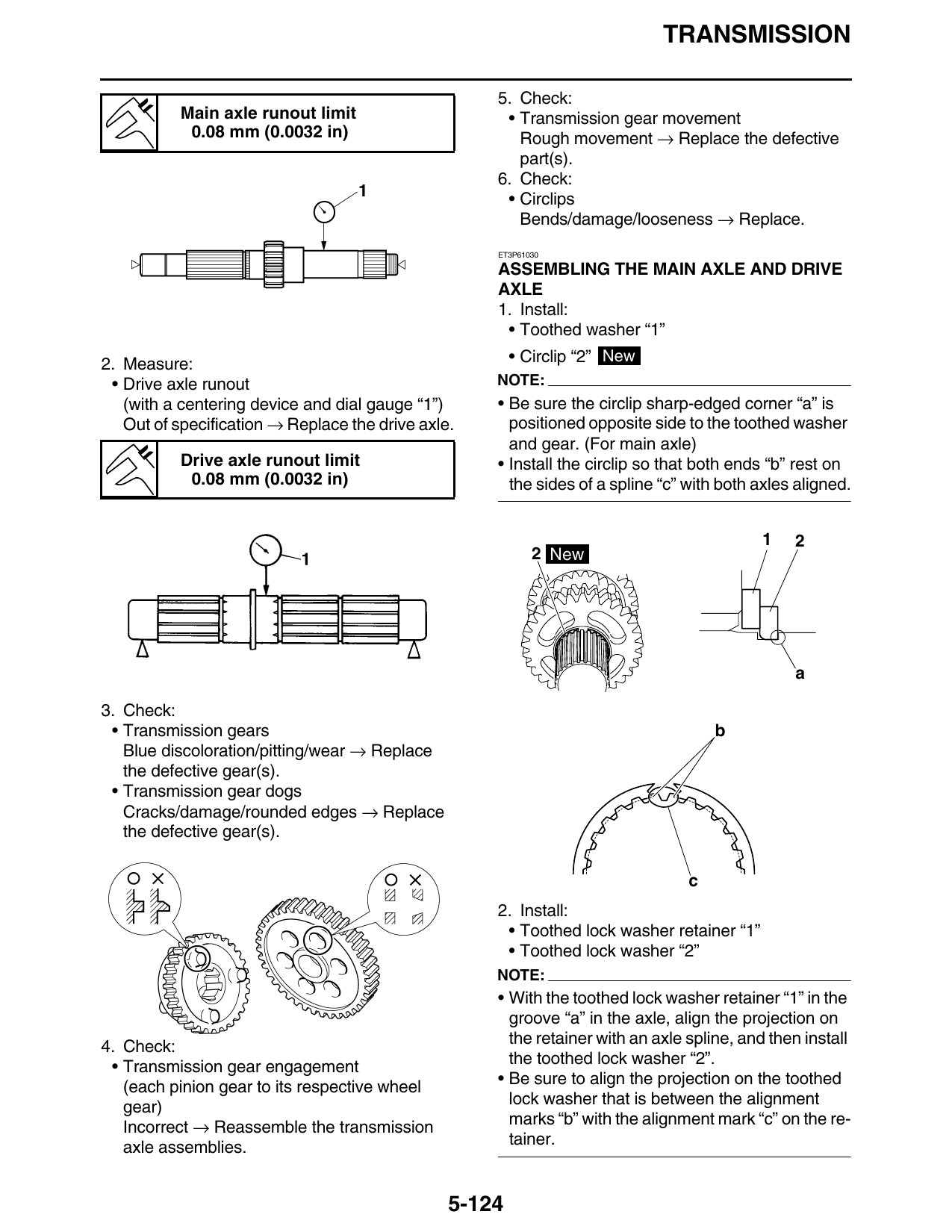

                                                    ASSEMBLING THE MAIN AXLE AND DRIVE
                                                    AXLE
                                                    1. Install:
                                                     • Toothed washer “1”
2. Measure:                                             • Circlip “2” New
 • Drive axle runout                                NOTE:
   (with a centering device and dial gauge “1”)     • Be sure the circlip sharp-edged corner “a” is
   Out of specification → Replace the drive axle.     positioned opposite side to the toothed washer
                                                      and gear. (For main axle)
           Drive axle runout limit                  • Install the circlip so that both ends “b” rest on
            0.08 mm (0.0032 in)                       the sides of a spline “c” with both axles aligned.

                                                                                          1    2
                                                           2 New

                                                                                               a

3. Check:
 • Transmission gears                                                               b
   Blue discoloration/pitting/wear → Replace
   the defective gear(s).
 • Transmission gear dogs
   Cracks/damage/rounded edges → Replace
   the defective gear(s).

                                                                                c
                                                    2. Install:
                                                     • Toothed lock washer retainer “1”
                                                     • Toothed lock washer “2”
                                                    NOTE:
                                                    • With the toothed lock washer retainer “1” in the
                                                      groove “a” in the axle, align the projection on
4. Check:                                             the retainer with an axle spline, and then install
 • Transmission gear engagement                       the toothed lock washer “2”.
   (each pinion gear to its respective wheel        • Be sure to align the projection on the toothed
   gear)                                              lock washer that is between the alignment
   Incorrect → Reassemble the transmission            marks “b” with the alignment mark “c” on the re-
   axle assemblies.                                   tainer.

                                                5-124
