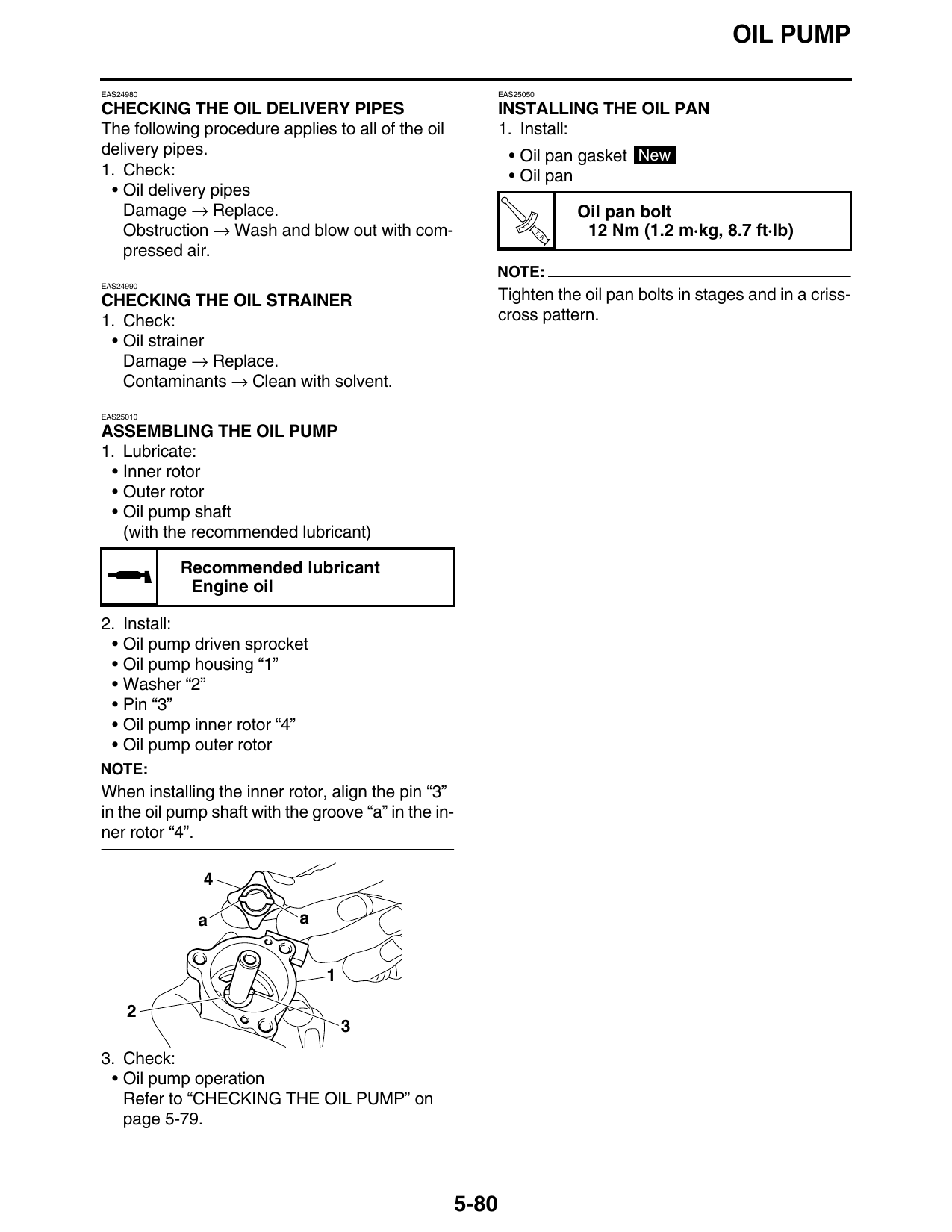

Assembling The Oil Pump

OIL PUMP

EAS24980                                                      EAS25050

CHECKING THE OIL DELIVERY PIPES                               INSTALLING THE OIL PAN
The following procedure applies to all of the oil             1. Install:
delivery pipes.                                                 • Oil pan gasket New
1. Check:                                                       • Oil pan
 • Oil delivery pipes
   Damage → Replace.                                                          Oil pan bolt
   Obstruction → Wash and blow out with com-                         T.
                                                                         R.
                                                                               12 Nm (1.2 m·kg, 8.7 ft·lb)
   pressed air.
                                                          NOTE:
EAS24990

CHECKING THE OIL STRAINER                                     Tighten the oil pan bolts in stages and in a criss-
1. Check:                                                     cross pattern.
 • Oil strainer
   Damage → Replace.
   Contaminants → Clean with solvent.
EAS25010

ASSEMBLING THE OIL PUMP
1. Lubricate:
 • Inner rotor
 • Outer rotor
 • Oil pump shaft
   (with the recommended lubricant)

           Recommended lubricant
            Engine oil

2. Install:
 • Oil pump driven sprocket
 • Oil pump housing “1”
 • Washer “2”
 • Pin “3”
 • Oil pump inner rotor “4”
 • Oil pump outer rotor
NOTE:
When installing the inner rotor, align the pin “3”
in the oil pump shaft with the groove “a” in the in-
ner rotor “4”.

              a              a

3. Check:
 • Oil pump operation
   Refer to “CHECKING THE OIL PUMP” on
   page 5-79.
