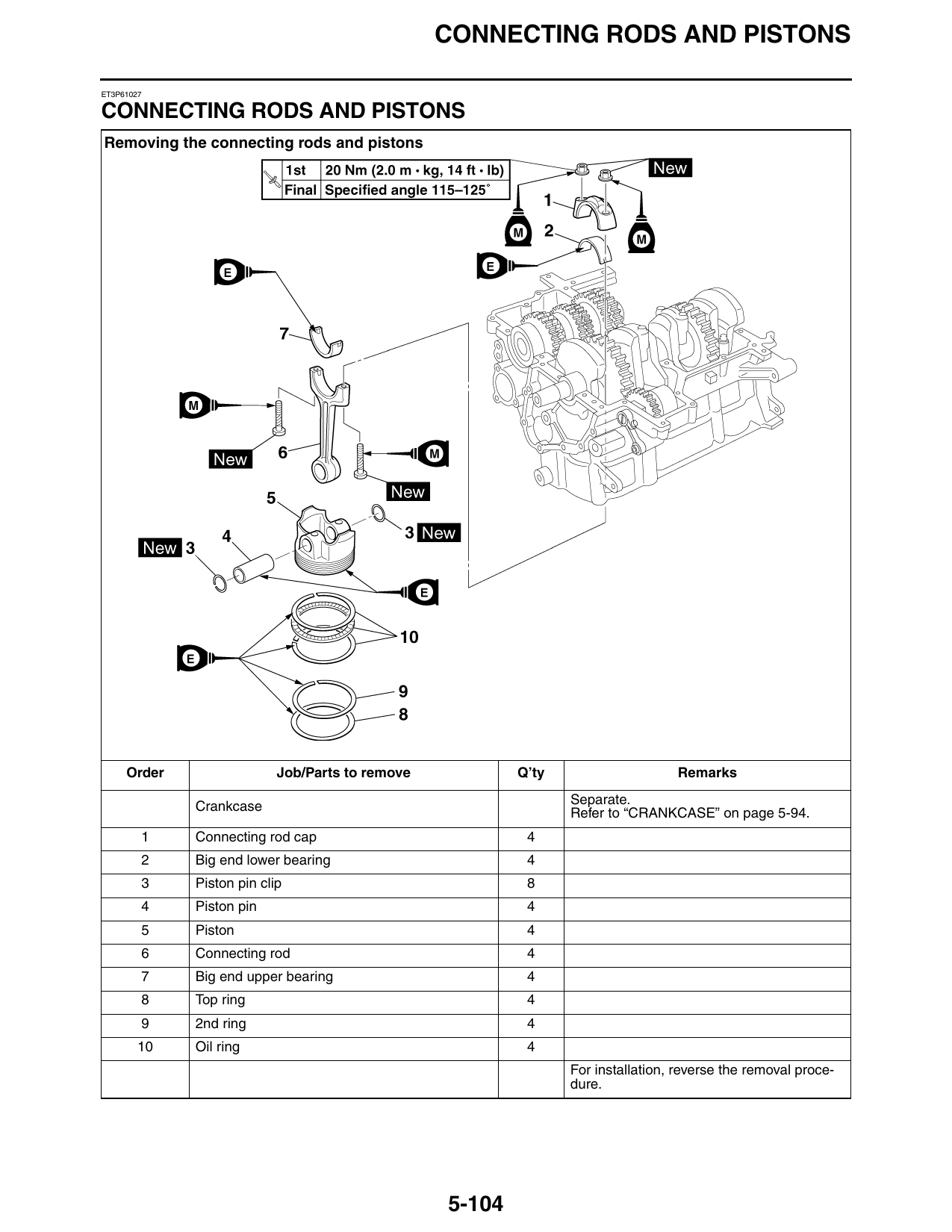

CONNECTING RODS AND PISTONS

ET3P61027

CONNECTING RODS AND PISTONS
Removing the connecting rods and pistons

     Order                 Job/Parts to remove           Q’ty                    Remarks
                                                                Separate.
             Crankcase                                          Refer to “CRANKCASE” on page 5-94.
        1    Connecting rod cap                           4
        2    Big end lower bearing                        4
        3    Piston pin clip                              8
        4    Piston pin                                   4
        5    Piston                                       4
        6    Connecting rod                               4
        7    Big end upper bearing                        4
        8    Top ring                                     4
        9    2nd ring                                     4
        10   Oil ring                                     4
                                                                For installation, reverse the removal proce-
                                                                dure.

                                                 5-104
