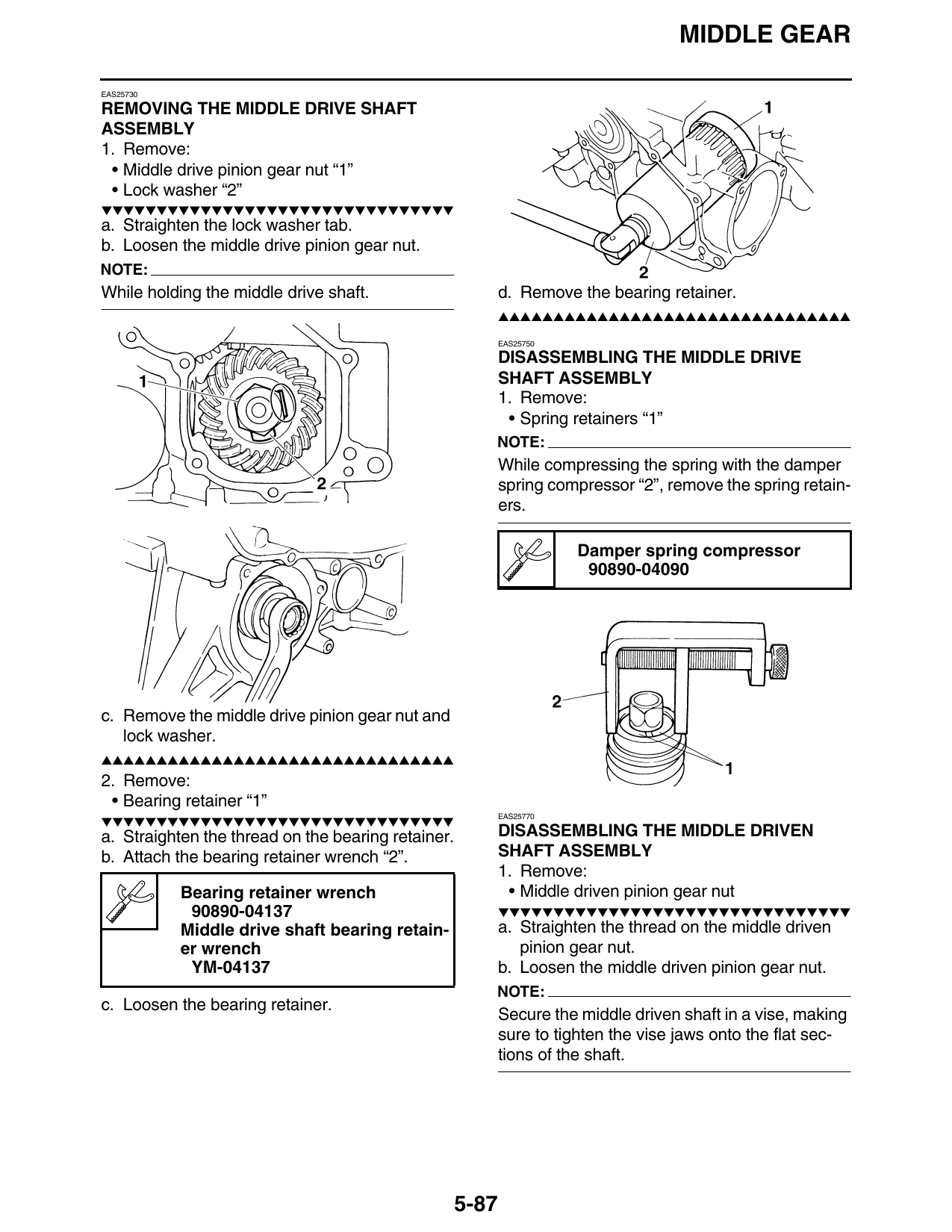

MIDDLE GEAR
EAS25730
REMOVING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Remove:
• Middle drive pinion gear nut “1”
• Lock washer “2”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Straighten the lock washer tab.
b. Loosen the middle drive pinion gear nut.
NOTE:
While holding the middle drive shaft. d. Remove the bearing retainer.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS25750
DISASSEMBLING THE MIDDLE DRIVE
SHAFT ASSEMBLY
1. Remove:
• Spring retainers “1”
NOTE:
While compressing the spring with the damper
spring compressor “2”, remove the spring retain-
ers.
Damper spring compressor
90890-04090
c. Remove the middle drive pinion gear nut and
lock washer.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Remove:
• Bearing retainer “1”
EAS25770
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Straighten the thread on the bearing retainer. DISASSEMBLING THE MIDDLE DRIVEN
b. Attach the bearing retainer wrench “2”. SHAFT ASSEMBLY
1. Remove:
Bearing retainer wrench • Middle driven pinion gear nut
90890-04137 ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Middle drive shaft bearing retain- a. Straighten the thread on the middle driven
er wrench pinion gear nut.
YM-04137 b. Loosen the middle driven pinion gear nut.
NOTE:
c. Loosen the bearing retainer.
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft.
5-87
