Electric Starter

ELECTRIC STARTER

EAS24780

ELECTRIC STARTER

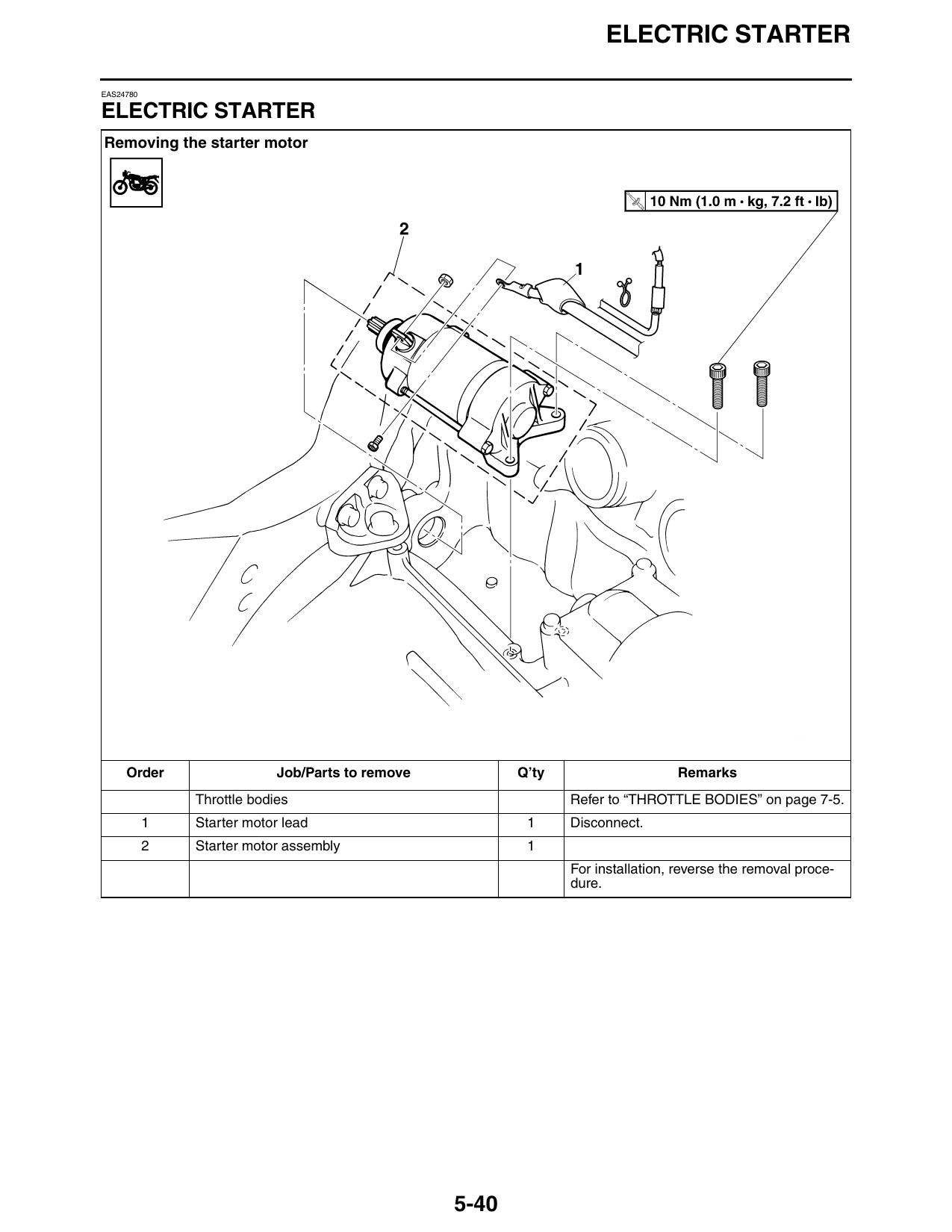

Removing the starter motor

     Order                  Job/Parts to remove          Q’ty                    Remarks
               Throttle bodies                                  Refer to “THROTTLE BODIES” on page 7-5.
           1   Starter motor lead                         1     Disconnect.
           2   Starter motor assembly                     1
                                                                For installation, reverse the removal proce-
                                                                dure.

                                                  5-40
                                                                  ELECTRIC STARTER

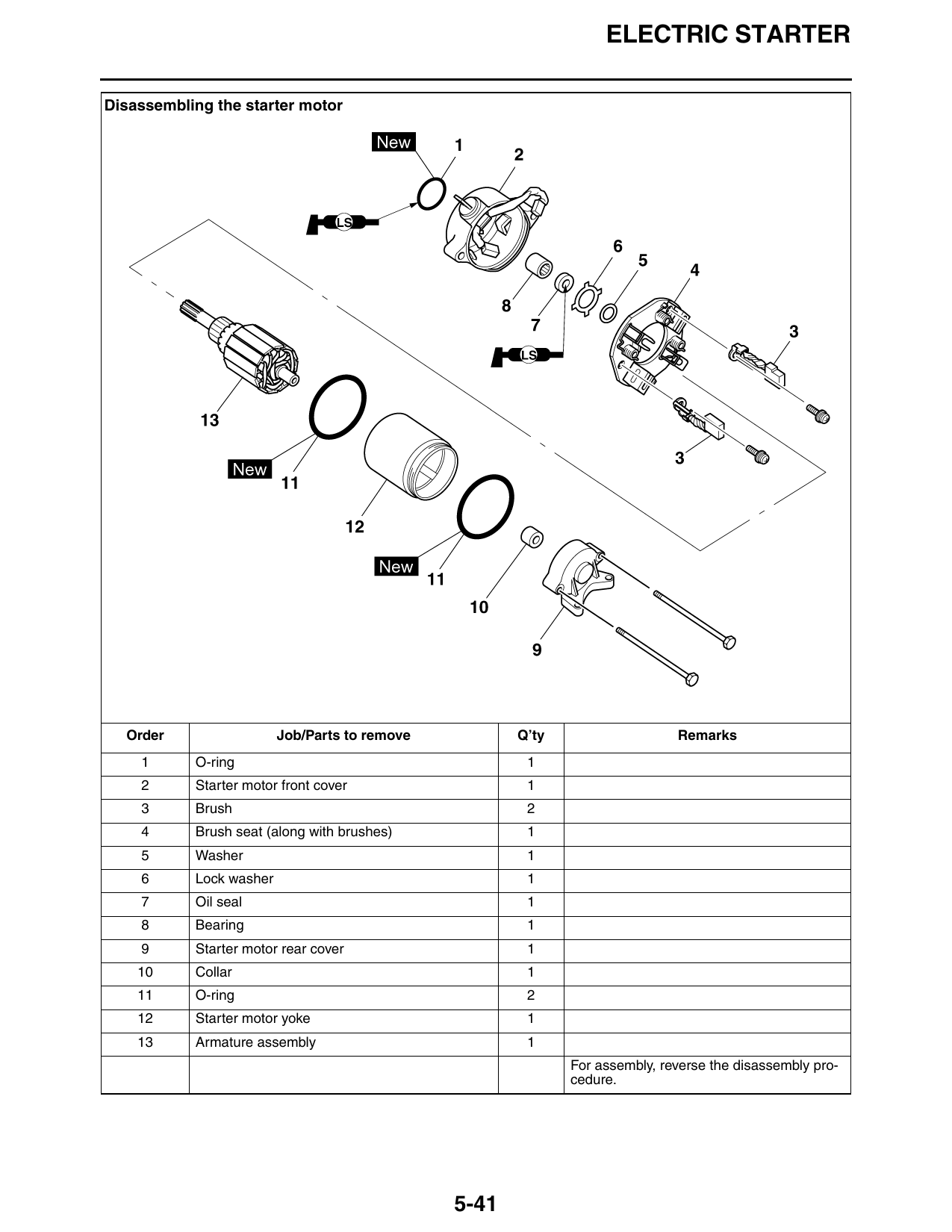

Disassembling the starter motor

  Order                  Job/Parts to remove          Q’ty                   Remarks
    1      O-ring                                      1
    2      Starter motor front cover                   1
    3      Brush                                       2
    4      Brush seat (along with brushes)             1
    5      Washer                                      1
    6      Lock washer                                 1
    7      Oil seal                                    1
    8      Bearing                                     1
    9      Starter motor rear cover                    1
    10     Collar                                      1
    11     O-ring                                      2
    12     Starter motor yoke                          1
    13     Armature assembly                           1
                                                             For assembly, reverse the disassembly pro-
                                                             cedure.
