MIDDLE GEAR

EAS25710

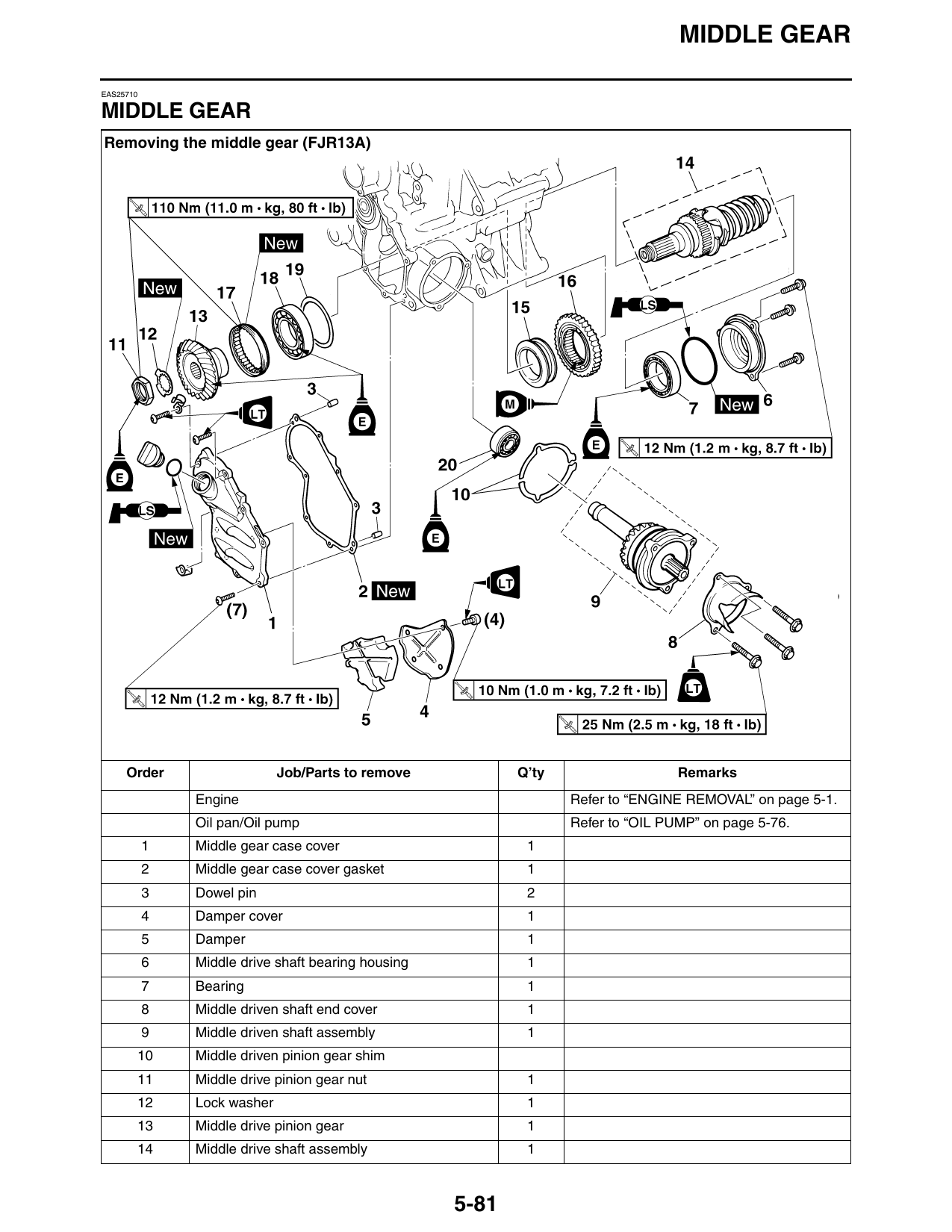

MIDDLE GEAR
Removing the middle gear (FJR13A)

     Order                   Job/Parts to remove           Q’ty                   Remarks
               Engine                                             Refer to “ENGINE REMOVAL” on page 5-1.
               Oil pan/Oil pump                                   Refer to “OIL PUMP” on page 5-76.
           1   Middle gear case cover                       1
           2   Middle gear case cover gasket                1
           3   Dowel pin                                    2
           4   Damper cover                                 1
           5   Damper                                       1
           6   Middle drive shaft bearing housing           1
           7   Bearing                                      1
           8   Middle driven shaft end cover                1
           9   Middle driven shaft assembly                 1
       10      Middle driven pinion gear shim
       11      Middle drive pinion gear nut                 1
       12      Lock washer                                  1
       13      Middle drive pinion gear                     1
       14      Middle drive shaft assembly                  1

                                                    5-81

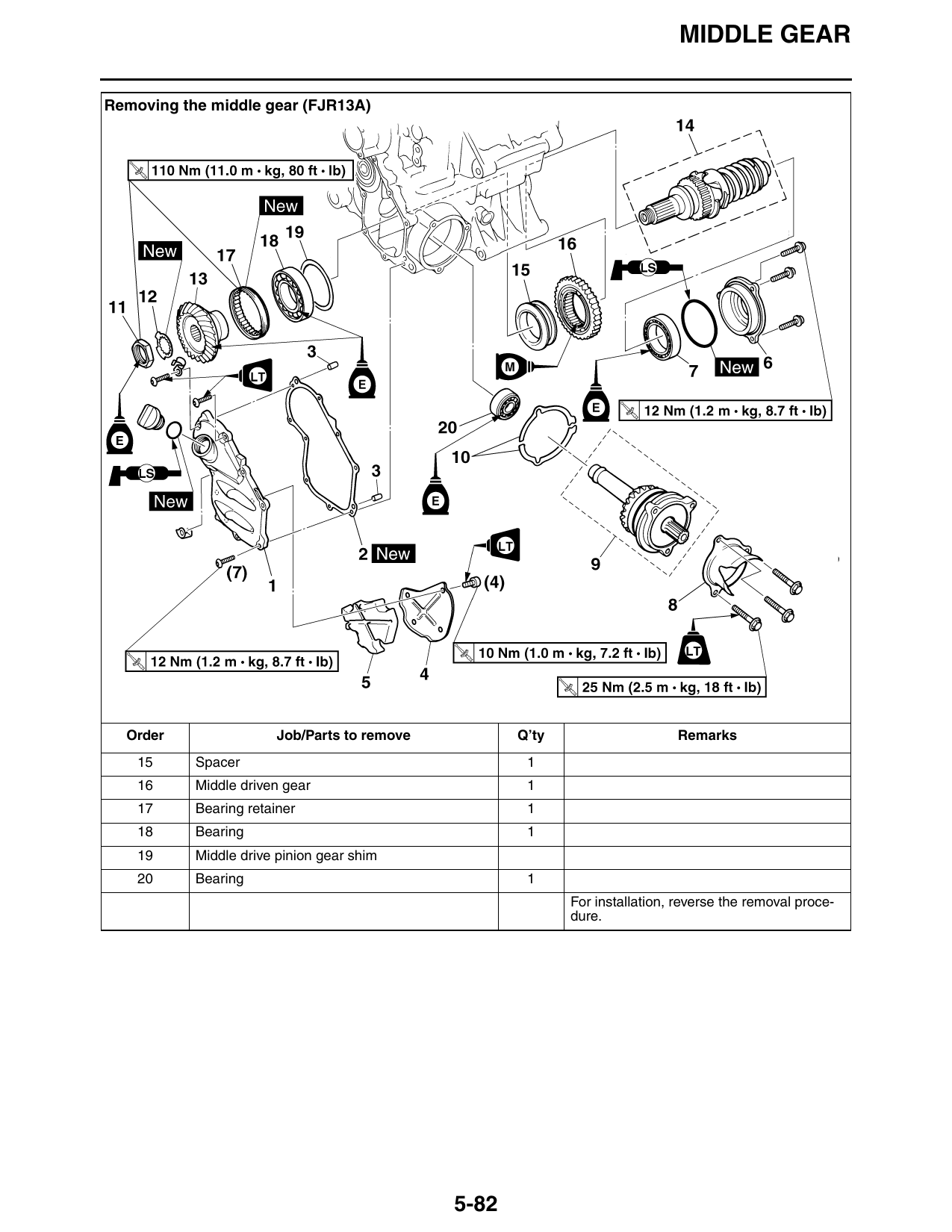

                                                                              MIDDLE GEAR

Removing the middle gear (FJR13A)

  Order                 Job/Parts to remove          Q’ty                    Remarks
    15     Spacer                                     1
    16     Middle driven gear                         1
    17     Bearing retainer                           1
    18     Bearing                                    1
    19     Middle drive pinion gear shim
    20     Bearing                                    1
                                                            For installation, reverse the removal proce-
                                                            dure.

                                              5-82
                                                                              MIDDLE GEAR

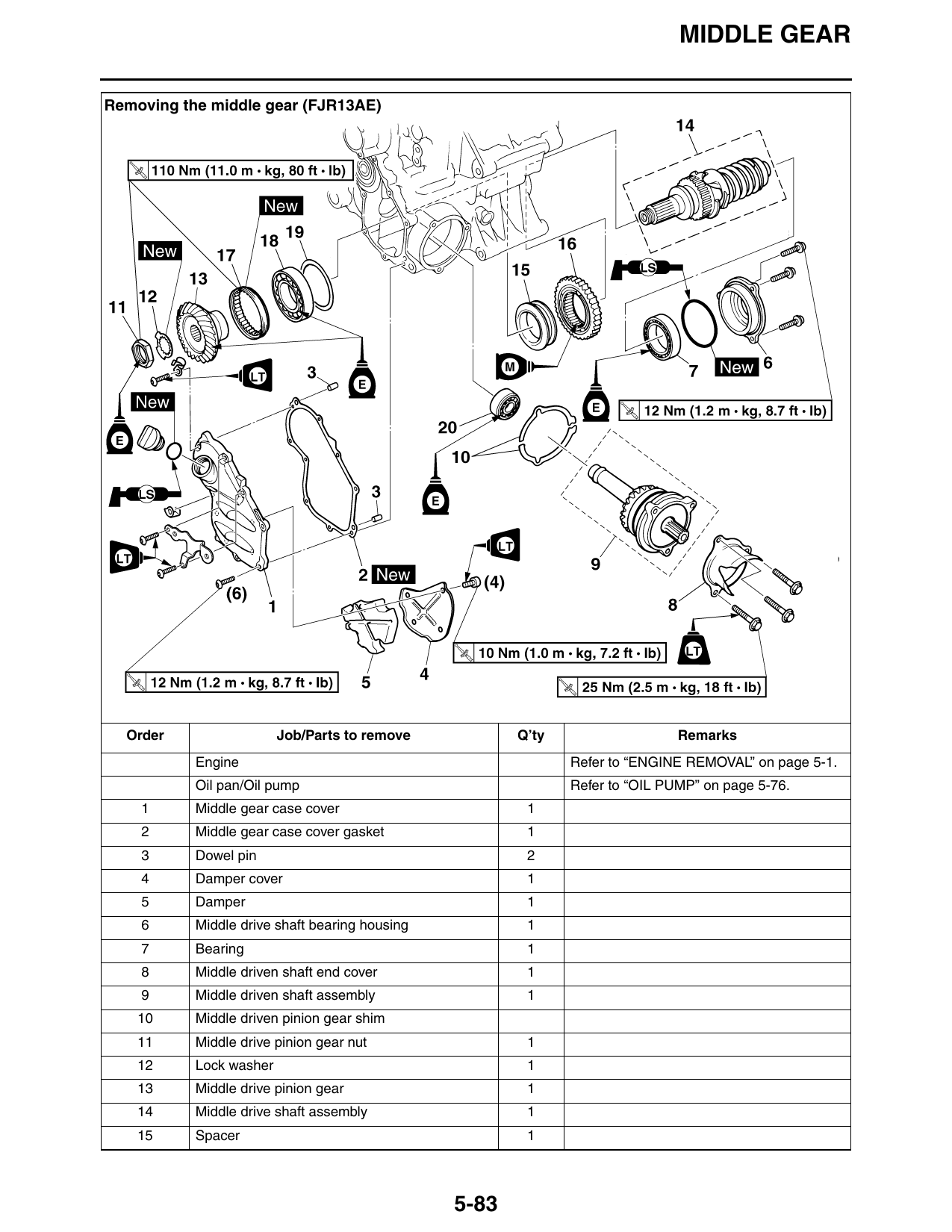

Removing the middle gear (FJR13AE)

  Order                  Job/Parts to remove           Q’ty                   Remarks
           Engine                                             Refer to “ENGINE REMOVAL” on page 5-1.
           Oil pan/Oil pump                                   Refer to “OIL PUMP” on page 5-76.
    1      Middle gear case cover                       1
    2      Middle gear case cover gasket                1
    3      Dowel pin                                    2
    4      Damper cover                                 1
    5      Damper                                       1
    6      Middle drive shaft bearing housing           1
    7      Bearing                                      1
    8      Middle driven shaft end cover                1
    9      Middle driven shaft assembly                 1
    10     Middle driven pinion gear shim
    11     Middle drive pinion gear nut                 1
    12     Lock washer                                  1
    13     Middle drive pinion gear                     1
    14     Middle drive shaft assembly                  1
    15     Spacer                                       1

                                                5-83

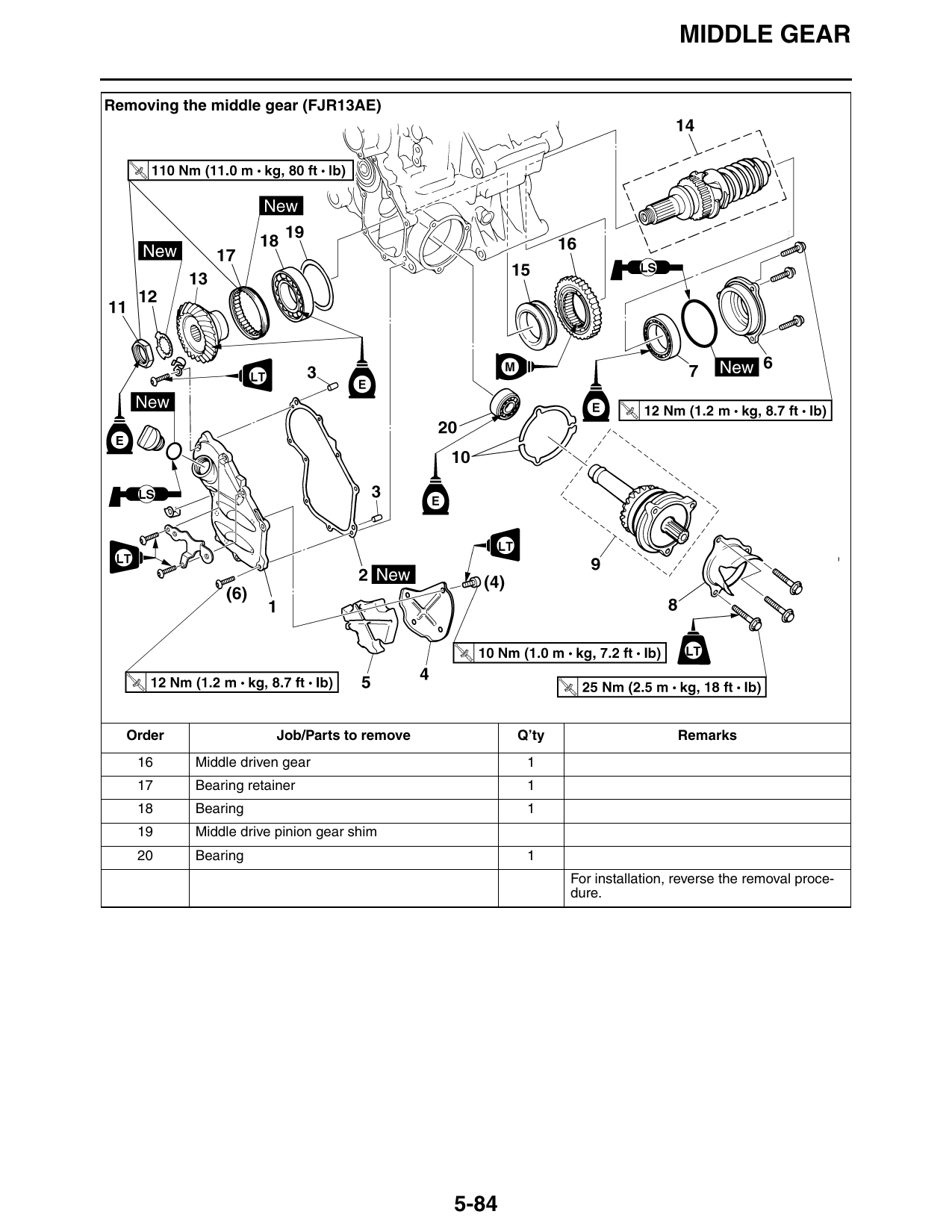

                                                                              MIDDLE GEAR

Removing the middle gear (FJR13AE)

  Order                 Job/Parts to remove          Q’ty                    Remarks
    16     Middle driven gear                         1
    17     Bearing retainer                           1
    18     Bearing                                    1
    19     Middle drive pinion gear shim
    20     Bearing                                    1
                                                            For installation, reverse the removal proce-
                                                            dure.

                                              5-84
                                                                               MIDDLE GEAR

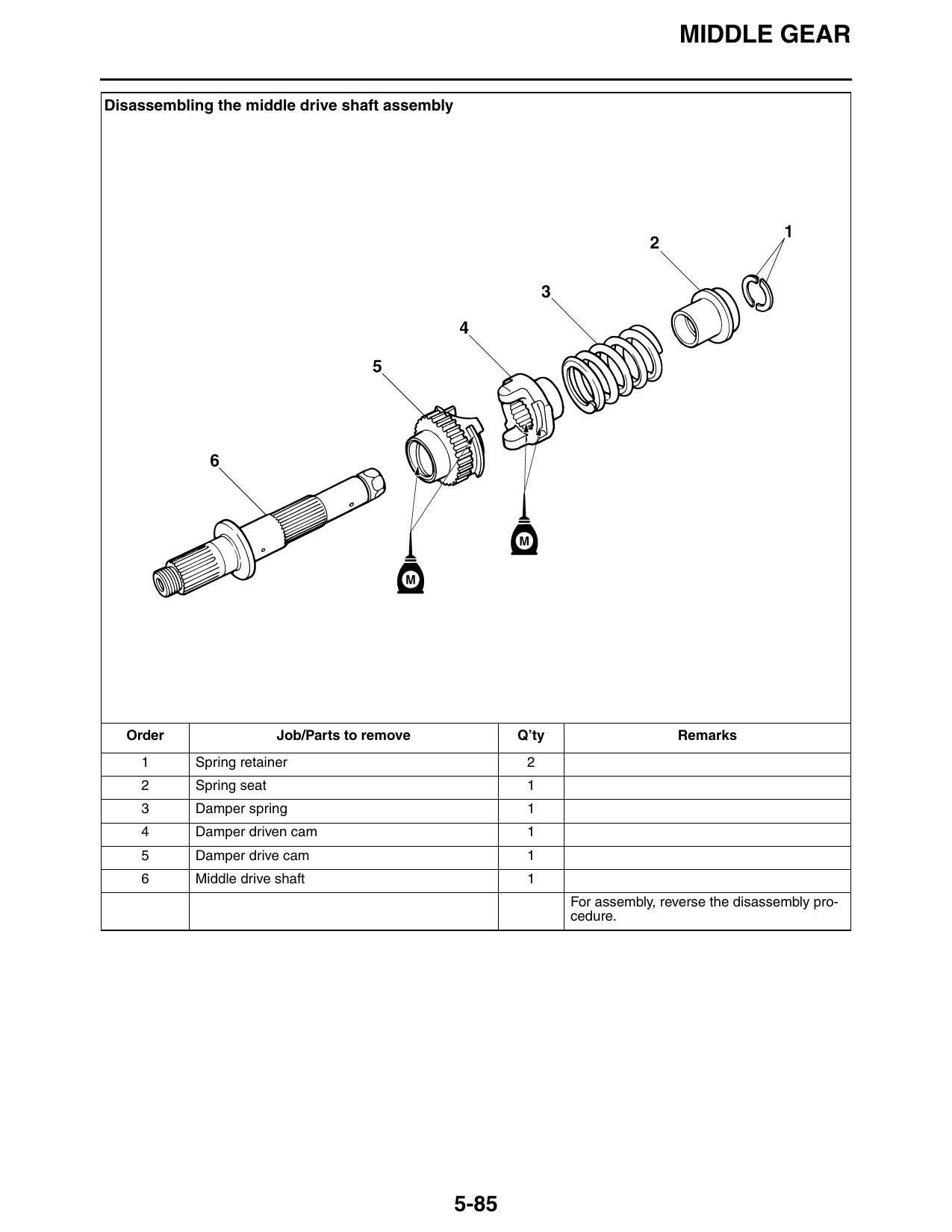

Disassembling the middle drive shaft assembly

  Order                  Job/Parts to remove           Q’ty                   Remarks
    1      Spring retainer                              2
    2      Spring seat                                  1
    3      Damper spring                                1
    4      Damper driven cam                            1
    5      Damper drive cam                             1
    6      Middle drive shaft                           1
                                                              For assembly, reverse the disassembly pro-
                                                              cedure.

                                                5-85
                                                                                MIDDLE GEAR

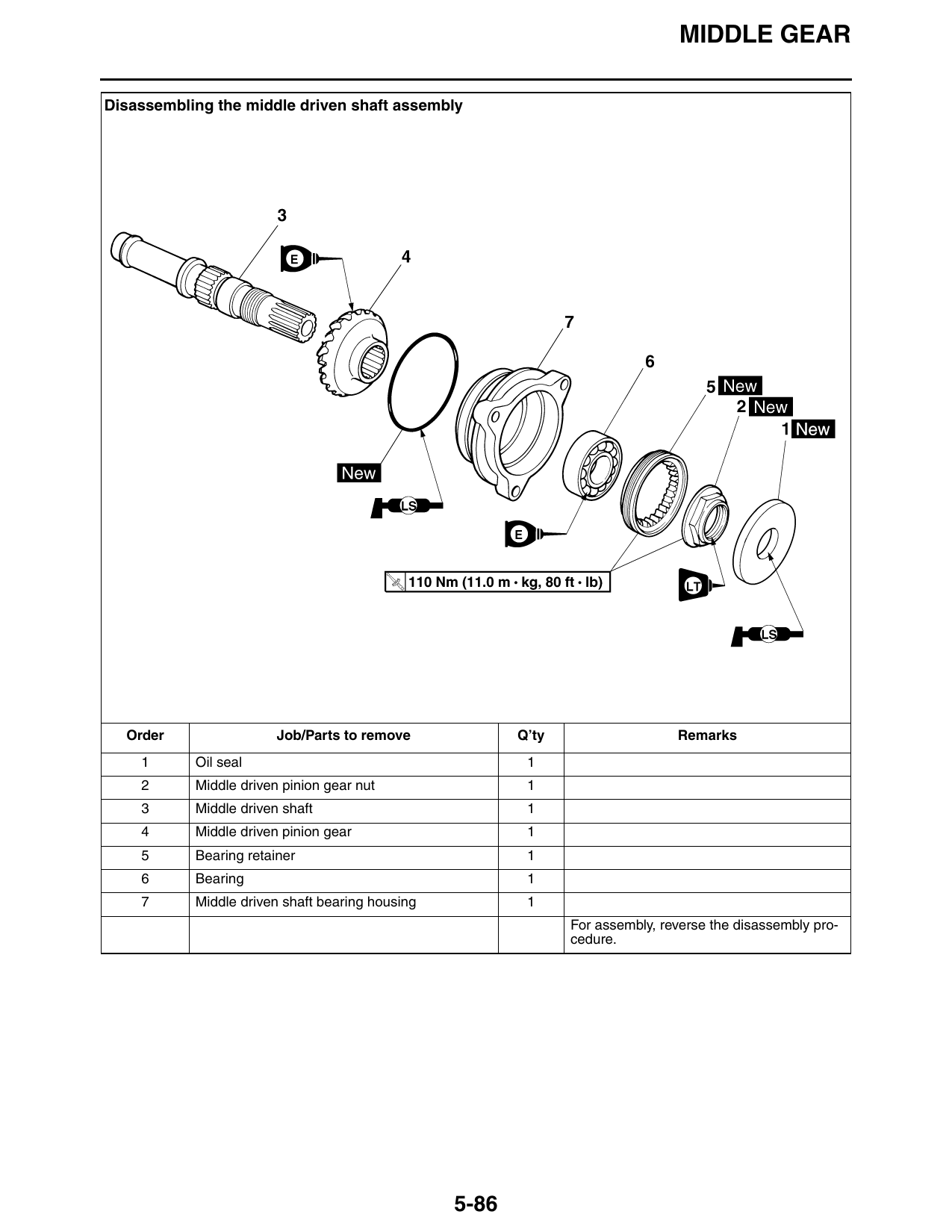

Disassembling the middle driven shaft assembly

  Order                 Job/Parts to remove             Q’ty                   Remarks
    1      Oil seal                                      1
    2      Middle driven pinion gear nut                 1
    3      Middle driven shaft                           1
    4      Middle driven pinion gear                     1
    5      Bearing retainer                              1
    6      Bearing                                       1
    7      Middle driven shaft bearing housing           1
                                                               For assembly, reverse the disassembly pro-
                                                               cedure.

                                                 5-86
