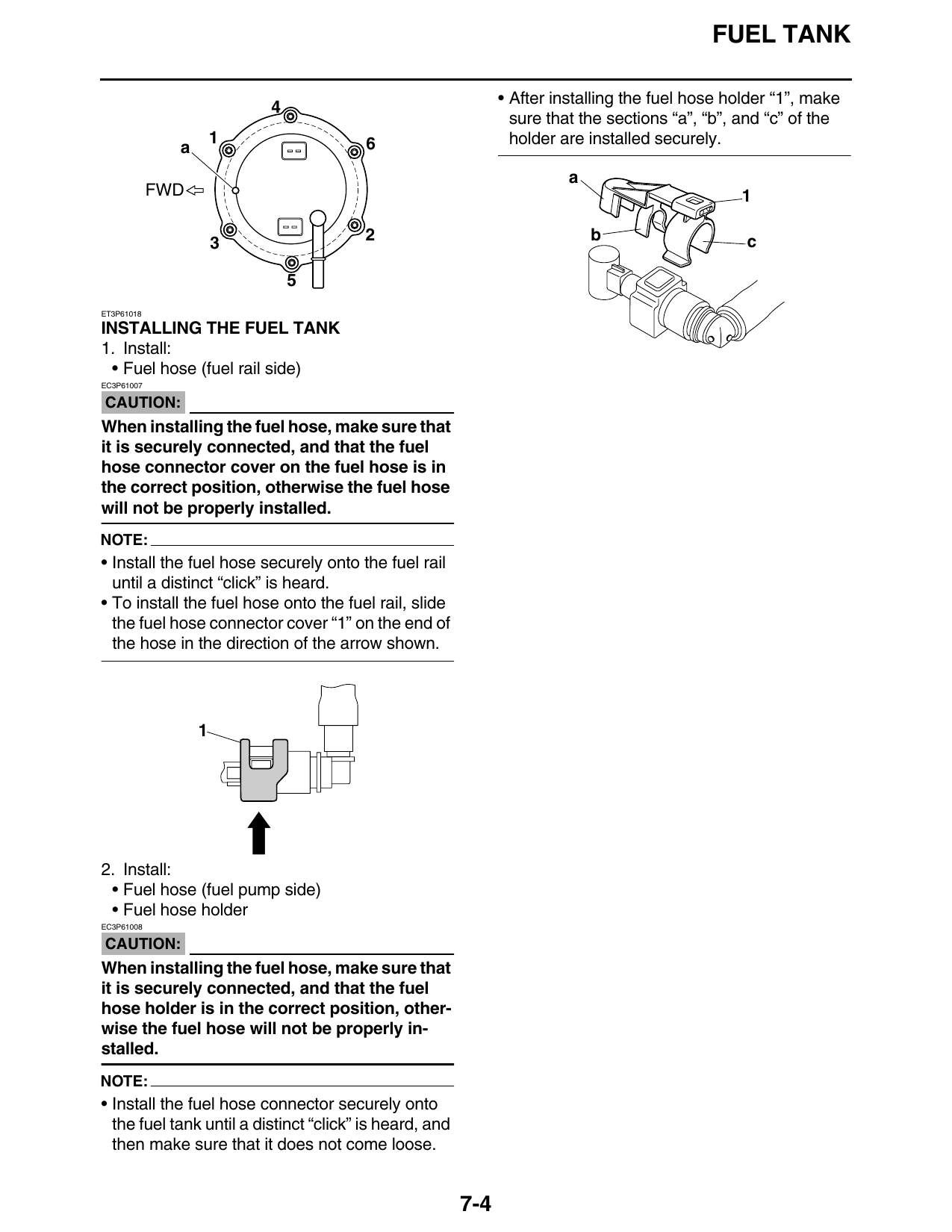

Installing The Fuel Tank

FUEL TANK

                                                               • After installing the fuel hose holder “1”, make
                                                                 sure that the sections “a”, “b”, and “c” of the
                      1                 6                        holder are installed securely.
              a
                                                                         a
            FWD                                                                                  1

                      3                 2                                    b                    c

ET3P61018

INSTALLING THE FUEL TANK
1. Install:
  • Fuel hose (fuel rail side)
EC3P61007

CAUTION:
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose connector cover on the fuel hose is in
the correct position, otherwise the fuel hose
will not be properly installed.
NOTE:
• Install the fuel hose securely onto the fuel rail
  until a distinct “click” is heard.
• To install the fuel hose onto the fuel rail, slide
  the fuel hose connector cover “1” on the end of
  the hose in the direction of the arrow shown.

2. Install:
 • Fuel hose (fuel pump side)
 • Fuel hose holder
EC3P61008

CAUTION:
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose holder is in the correct position, other-
wise the fuel hose will not be properly in-
stalled.
NOTE:
• Install the fuel hose connector securely onto
  the fuel tank until a distinct “click” is heard, and
  then make sure that it does not come loose.

                                                         7-4
