ABS (ANTI-LOCK BRAKE SYSTEM)

EAS27740

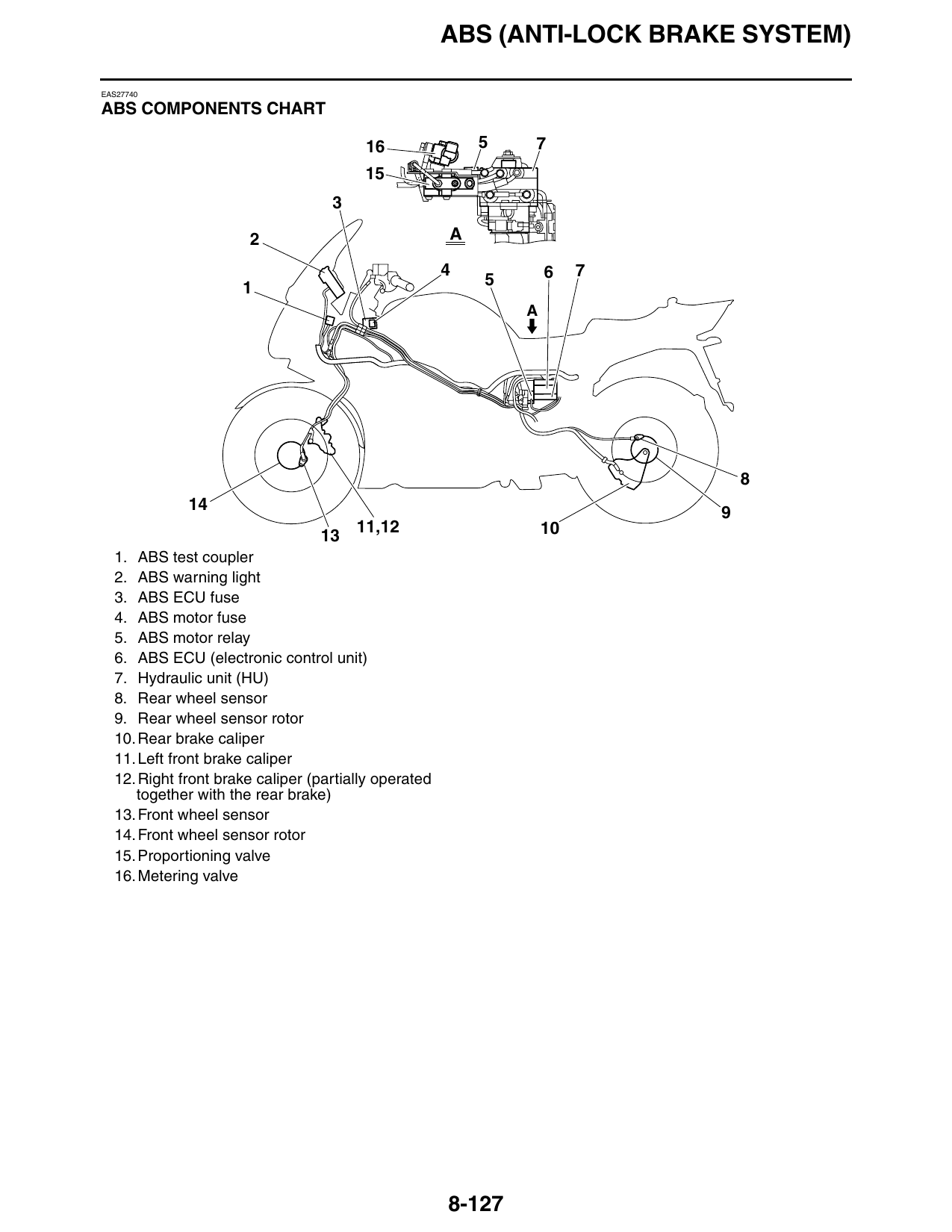

ABS COMPONENTS CHART

                                        16                5   7

                      2                               A

                                                      4           6    7
                     1                                    5
                                                              A

             14                                                            9
                                       11,12                      10
  1. ABS test coupler
  2. ABS warning light
  3. ABS ECU fuse
  4. ABS motor fuse
  5. ABS motor relay
  6. ABS ECU (electronic control unit)
  7. Hydraulic unit (HU)
  8. Rear wheel sensor
  9. Rear wheel sensor rotor
  10. Rear brake caliper
  11. Left front brake caliper
  12. Right front brake caliper (partially operated
     together with the rear brake)
  13. Front wheel sensor
  14. Front wheel sensor rotor
  15. Proportioning valve
  16. Metering valve

                                                      8-127
