ABS (ANTI-LOCK BRAKE SYSTEM)

EAS27760

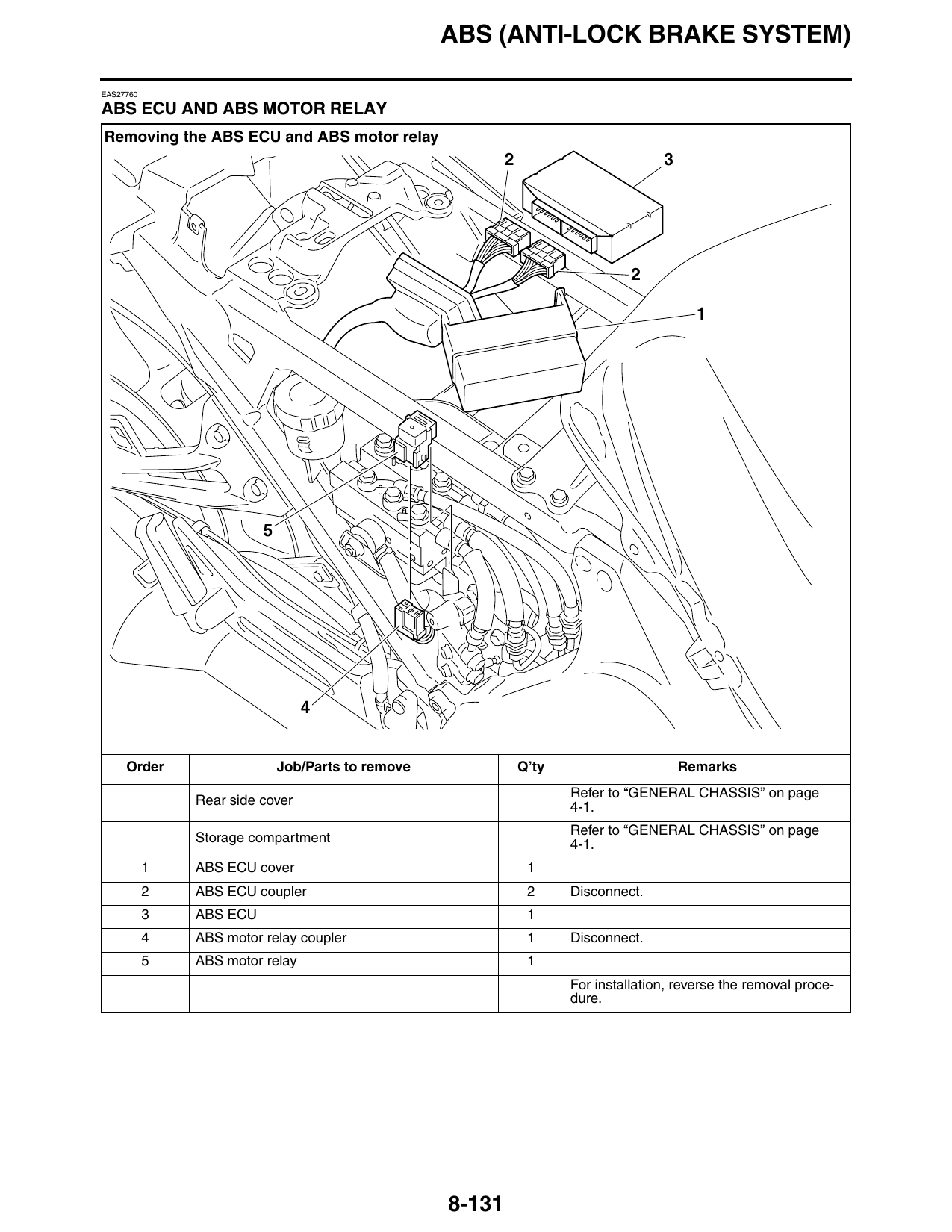

ABS ECU AND ABS MOTOR RELAY
Removing the ABS ECU and ABS motor relay
                                                           2                         3

     Order                   Job/Parts to remove               Q’ty                      Remarks
                                                                      Refer to “GENERAL CHASSIS” on page
               Rear side cover                                        4-1.
                                                                      Refer to “GENERAL CHASSIS” on page
               Storage compartment                                    4-1.
           1   ABS ECU cover                                    1
           2   ABS ECU coupler                                  2     Disconnect.
           3   ABS ECU                                          1
           4   ABS motor relay coupler                          1     Disconnect.
           5   ABS motor relay                                  1
                                                                      For installation, reverse the removal proce-
                                                                      dure.
