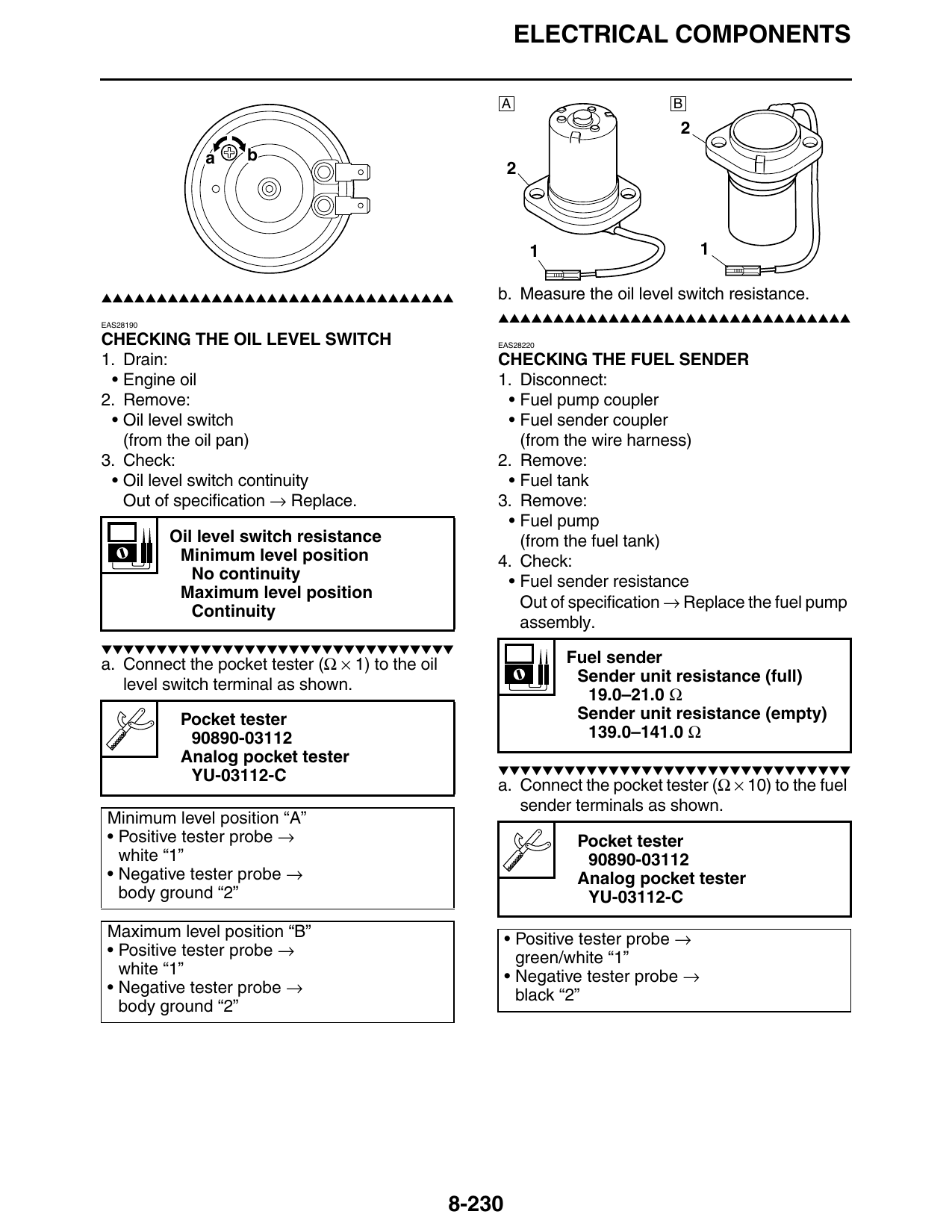

ELECTRICAL COMPONENTS
A B
a b
1 1
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲ b. Measure the oil level switch resistance.
EAS28190
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
CHECKING THE OIL LEVEL SWITCH EAS28220
1. Drain: CHECKING THE FUEL SENDER
• Engine oil 1. Disconnect:
2. Remove: • Fuel pump coupler
• Oil level switch • Fuel sender coupler
(from the oil pan) (from the wire harness)
3. Check: 2. Remove:
• Oil level switch continuity • Fuel tank
Out of specification → Replace. 3. Remove:
• Fuel pump
Oil level switch resistance (from the fuel tank)
Minimum level position 4. Check:
No continuity • Fuel sender resistance
Maximum level position
Out of specification → Replace the fuel pump
Continuity
assembly.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 1) to the oil Fuel sender
level switch terminal as shown. Sender unit resistance (full)
19.0–21.0 Ω
Pocket tester Sender unit resistance (empty)
90890-03112 139.0–141.0 Ω
Analog pocket tester
YU-03112-C ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 10) to the fuel
sender terminals as shown.
Minimum level position “A”
• Positive tester probe → Pocket tester
white “1” 90890-03112
• Negative tester probe → Analog pocket tester
body ground “2” YU-03112-C
Maximum level position “B” • Positive tester probe →
• Positive tester probe → green/white “1”
white “1” • Negative tester probe →
• Negative tester probe → black “2”
body ground “2”
8-230
