Checking The Switches

ELECTRICAL COMPONENTS

EAS27980

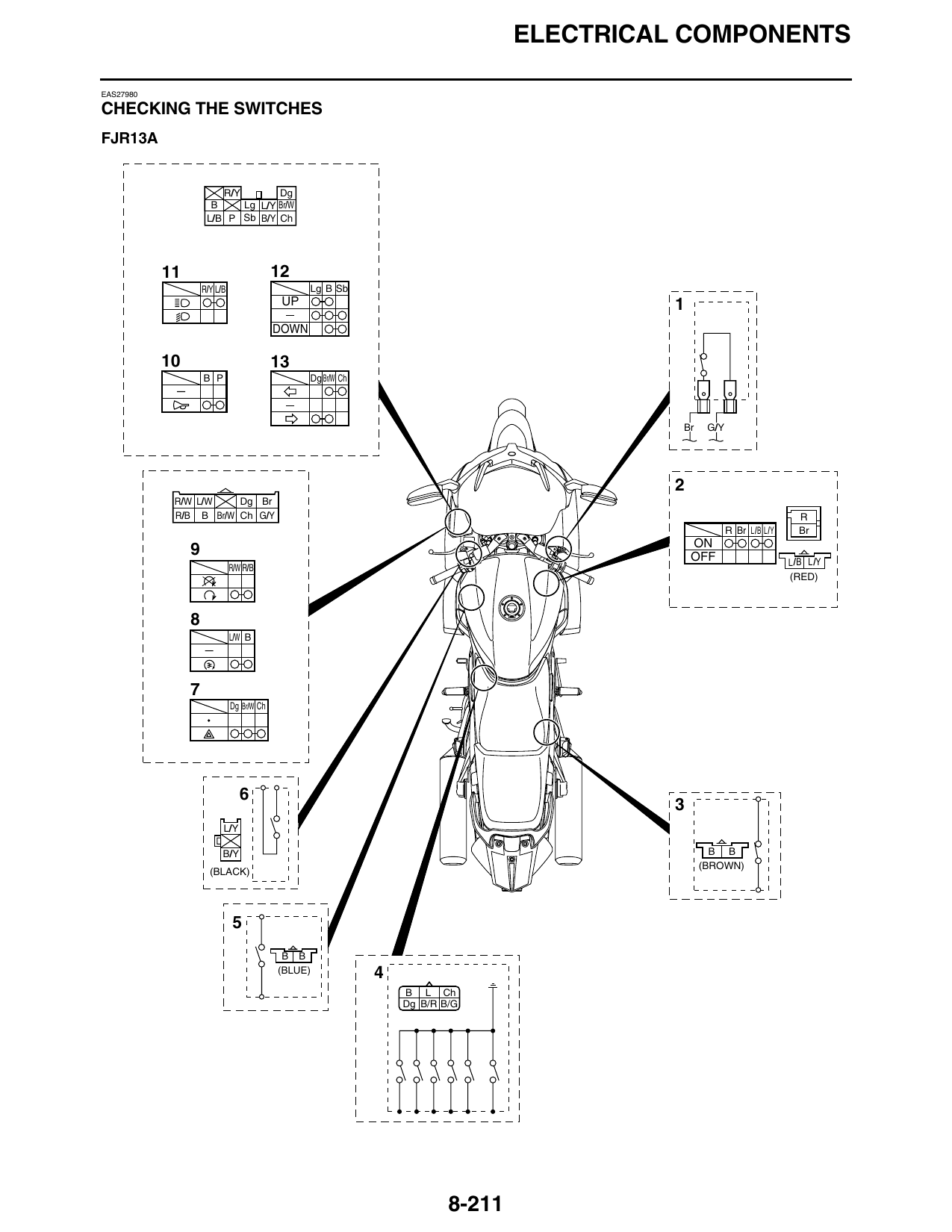

CHECKING THE SWITCHES
FJR13A

                        R/Y        Dg
                      B     Lg L/Y Br/W
                     L/B P Sb B/Y Ch

           11                              12
                    R/Y L/B                       Lg B Sb
                                            UP                                               1
                                           DOWN

           10                              13
                    B P                           Dg Br/W Ch

                                                                                             Br    G/Y

            R/W L/W    Dg Br
            R/B B Br/W Ch G/Y                                                                                             R
                                                                                                         R Br L/B L/Y     Br
                                                                                                 ON
                9                                                                                OFF                    L/B L/Y
                              R/W R/B
                                                                                                                        (RED)

                              L/W B

                              Dg Br/W Ch

                          L/Y

                          B/Y                                                                       B B
                                                                                                  (BROWN)
                      (BLACK)

                                            B B
                                           (BLUE)              4
                                                                   B L Ch
                                                                   Dg B/R B/G

                                                                           8-211
                                         ELECTRICAL COMPONENTS

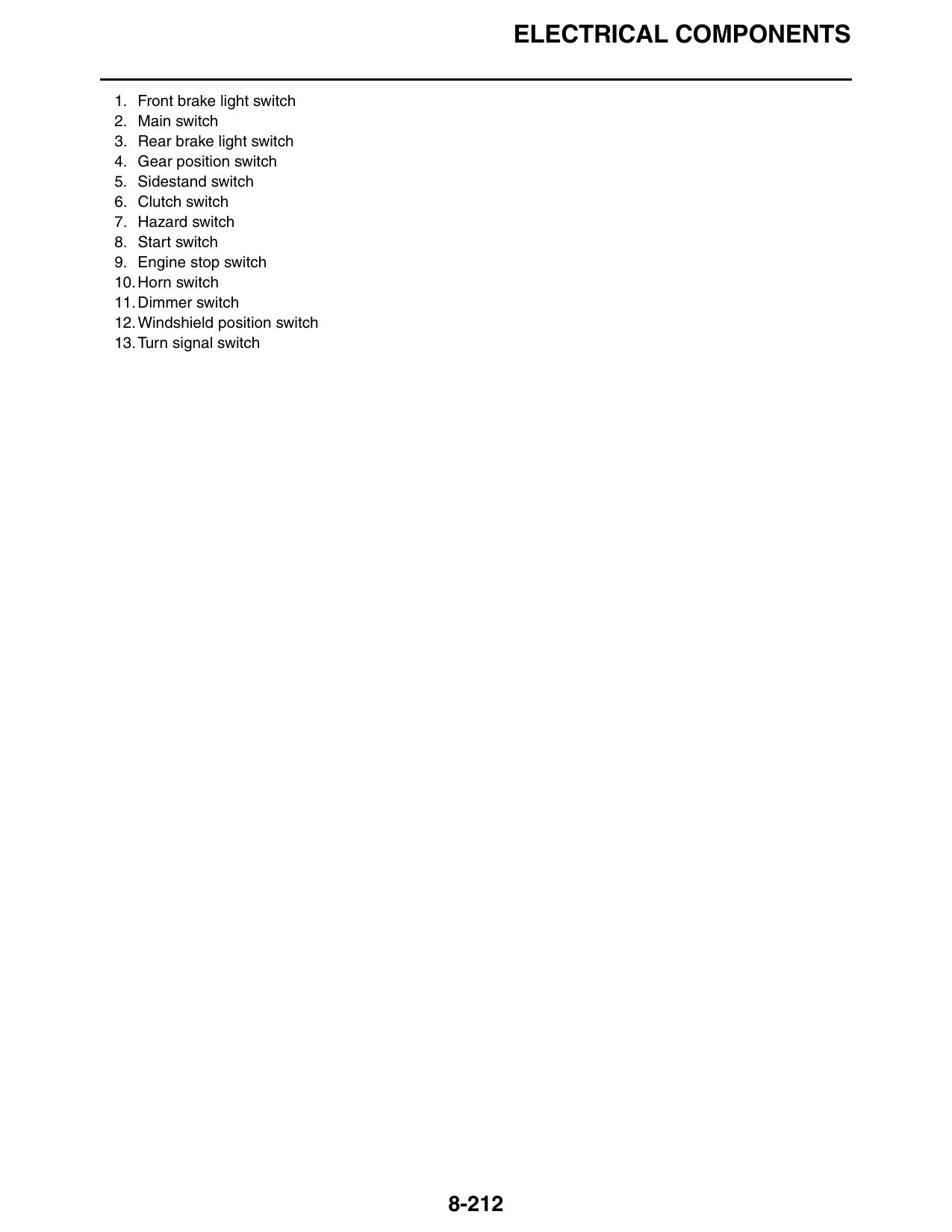

1. Front brake light switch
2. Main switch
3. Rear brake light switch
4. Gear position switch
5. Sidestand switch
6. Clutch switch
7. Hazard switch
8. Start switch
9. Engine stop switch
10. Horn switch
11. Dimmer switch
12. Windshield position switch
13. Turn signal switch

                                 8-212
