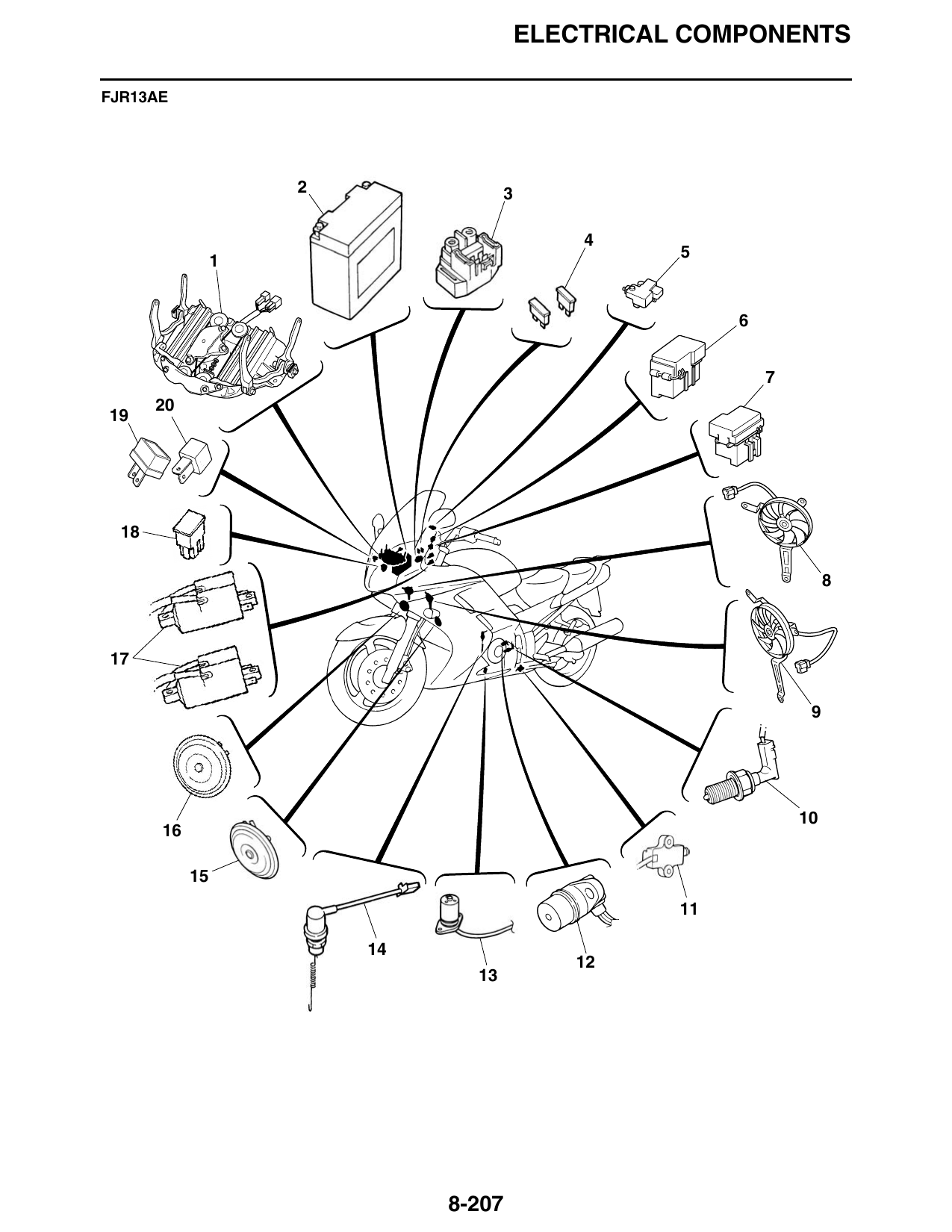

ELECTRICAL COMPONENTS

FJR13AE

                     2               3

                              8-207

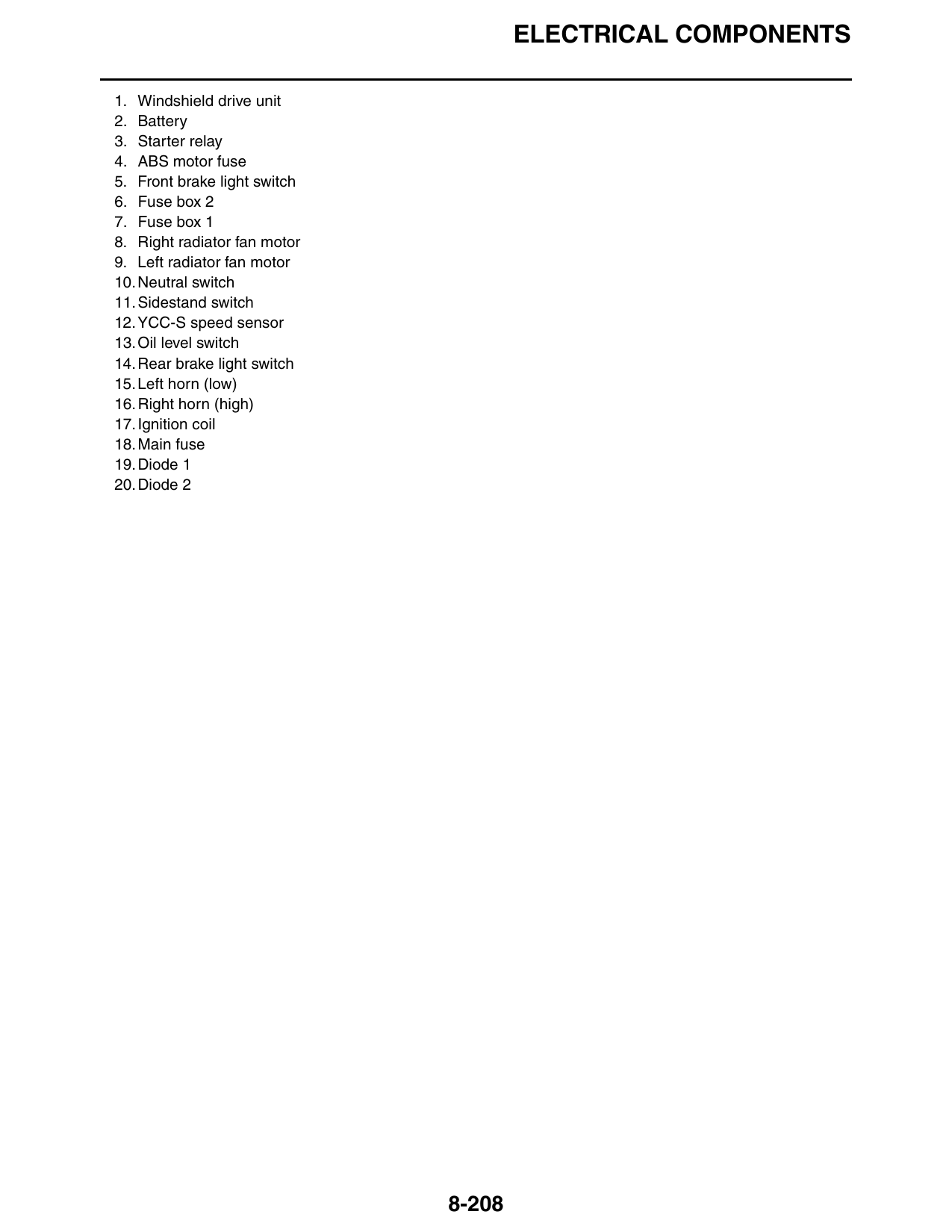

                                      ELECTRICAL COMPONENTS

1. Windshield drive unit
2. Battery
3. Starter relay
4. ABS motor fuse
5. Front brake light switch
6. Fuse box 2
7. Fuse box 1
8. Right radiator fan motor
9. Left radiator fan motor
10. Neutral switch
11. Sidestand switch
12. YCC-S speed sensor
13. Oil level switch
14. Rear brake light switch
15. Left horn (low)
16. Right horn (high)
17. Ignition coil
18. Main fuse
19. Diode 1
20. Diode 2

                              8-208
