Starting Circuit Cut-off System Operation (FJR13A)

ELECTRIC STARTING SYSTEM

EAS27180

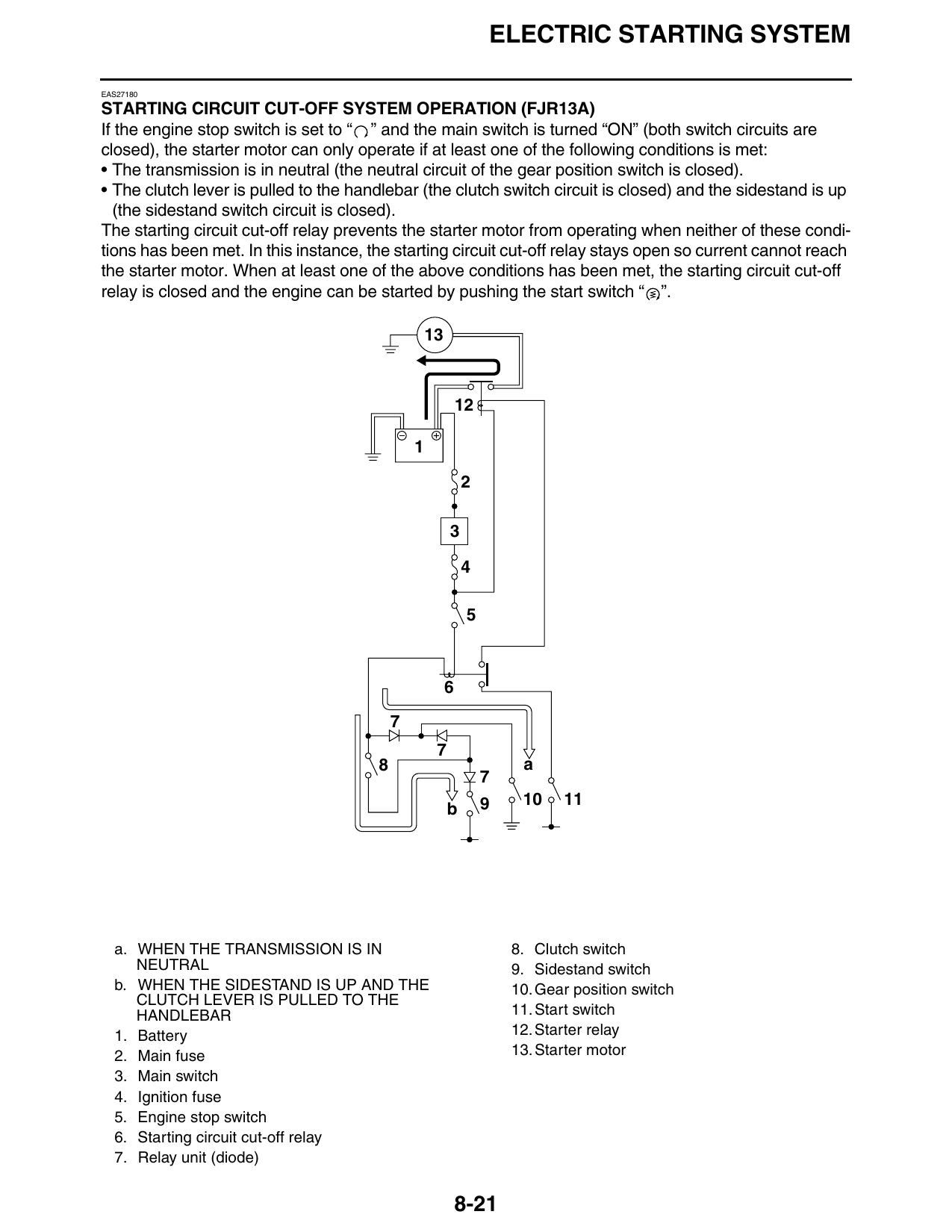

STARTING CIRCUIT CUT-OFF SYSTEM OPERATION (FJR13A)
If the engine stop switch is set to “ ” and the main switch is turned “ON” (both switch circuits are
closed), the starter motor can only operate if at least one of the following conditions is met:
• The transmission is in neutral (the neutral circuit of the gear position switch is closed).
• The clutch lever is pulled to the handlebar (the clutch switch circuit is closed) and the sidestand is up
  (the sidestand switch circuit is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay stays open so current cannot reach
the starter motor. When at least one of the above conditions has been met, the starting circuit cut-off
relay is closed and the engine can be started by pushing the start switch “ ”.

                                       8                              a
                                                                 9    10    11
                                                        b

  a. WHEN THE TRANSMISSION IS IN                                     8. Clutch switch
     NEUTRAL                                                         9. Sidestand switch
  b. WHEN THE SIDESTAND IS UP AND THE                                10. Gear position switch
     CLUTCH LEVER IS PULLED TO THE
     HANDLEBAR                                                       11. Start switch
  1. Battery                                                         12. Starter relay
  2. Main fuse                                                       13. Starter motor
  3. Main switch
  4. Ignition fuse
  5. Engine stop switch
  6. Starting circuit cut-off relay
  7. Relay unit (diode)

                                                            8-21
