LIGHTING SYSTEM

EAS27260

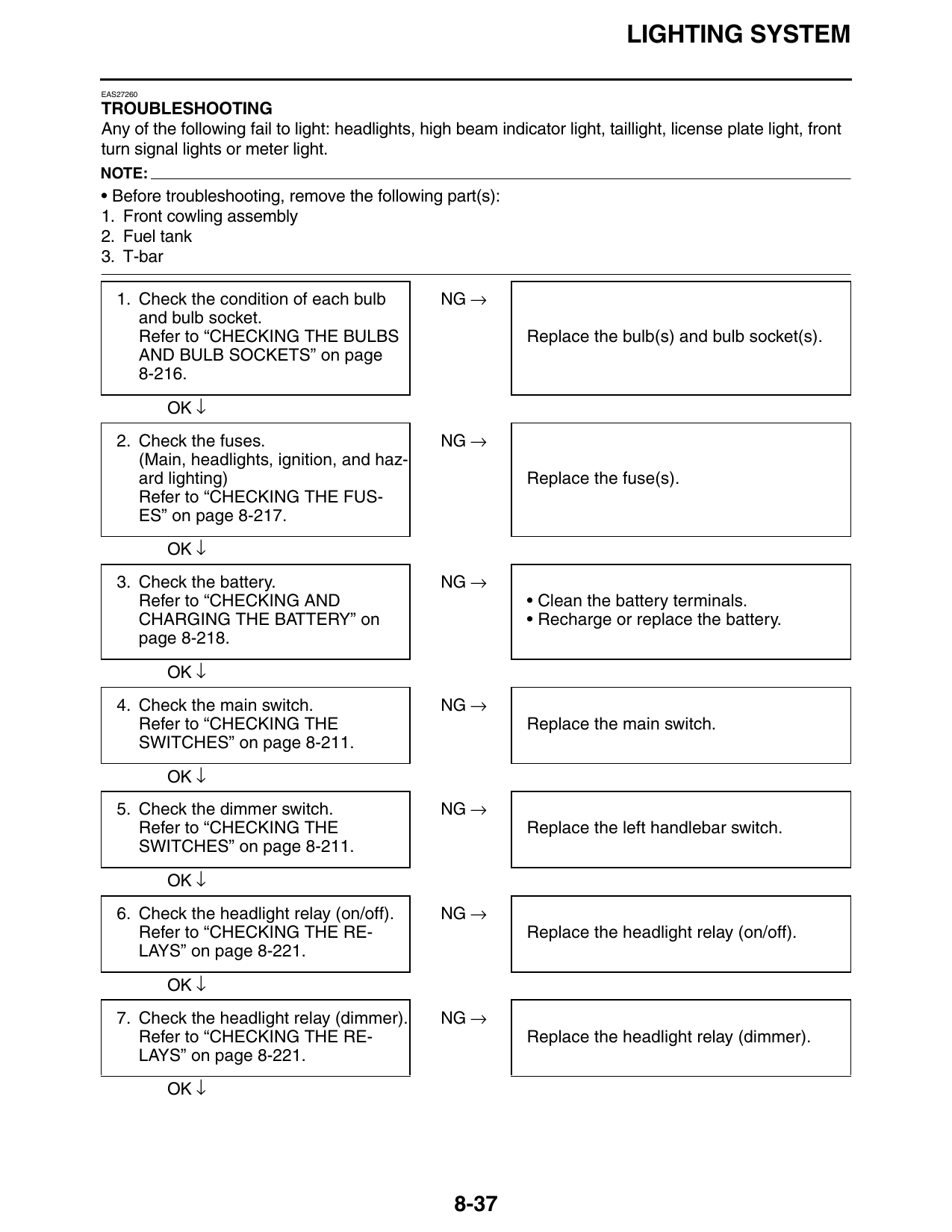

TROUBLESHOOTING
Any of the following fail to light: headlights, high beam indicator light, taillight, license plate light, front
turn signal lights or meter light.
NOTE:
• Before troubleshooting, remove the following part(s):
1. Front cowling assembly
2. Fuel tank
3. T-bar

   1. Check the condition of each bulb             NG →
      and bulb socket.
      Refer to “CHECKING THE BULBS                              Replace the bulb(s) and bulb socket(s).
      AND BULB SOCKETS” on page
      8-216.
           OK ↓
   2. Check the fuses.                             NG →
      (Main, headlights, ignition, and haz-
      ard lighting)                                             Replace the fuse(s).
      Refer to “CHECKING THE FUS-
      ES” on page 8-217.

           OK ↓
   3. Check the battery.                           NG →
      Refer to “CHECKING AND                                    • Clean the battery terminals.
      CHARGING THE BATTERY” on                                  • Recharge or replace the battery.
      page 8-218.

           OK ↓
   4. Check the main switch.                       NG →
      Refer to “CHECKING THE                                    Replace the main switch.
      SWITCHES” on page 8-211.
           OK ↓
   5. Check the dimmer switch.                     NG →
      Refer to “CHECKING THE                                    Replace the left handlebar switch.
      SWITCHES” on page 8-211.

           OK ↓
   6. Check the headlight relay (on/off).          NG →
      Refer to “CHECKING THE RE-                                Replace the headlight relay (on/off).
      LAYS” on page 8-221.

           OK ↓
   7. Check the headlight relay (dimmer).          NG →
      Refer to “CHECKING THE RE-                                Replace the headlight relay (dimmer).
      LAYS” on page 8-221.

           OK ↓

                                                     8-37
                                                           LIGHTING SYSTEM

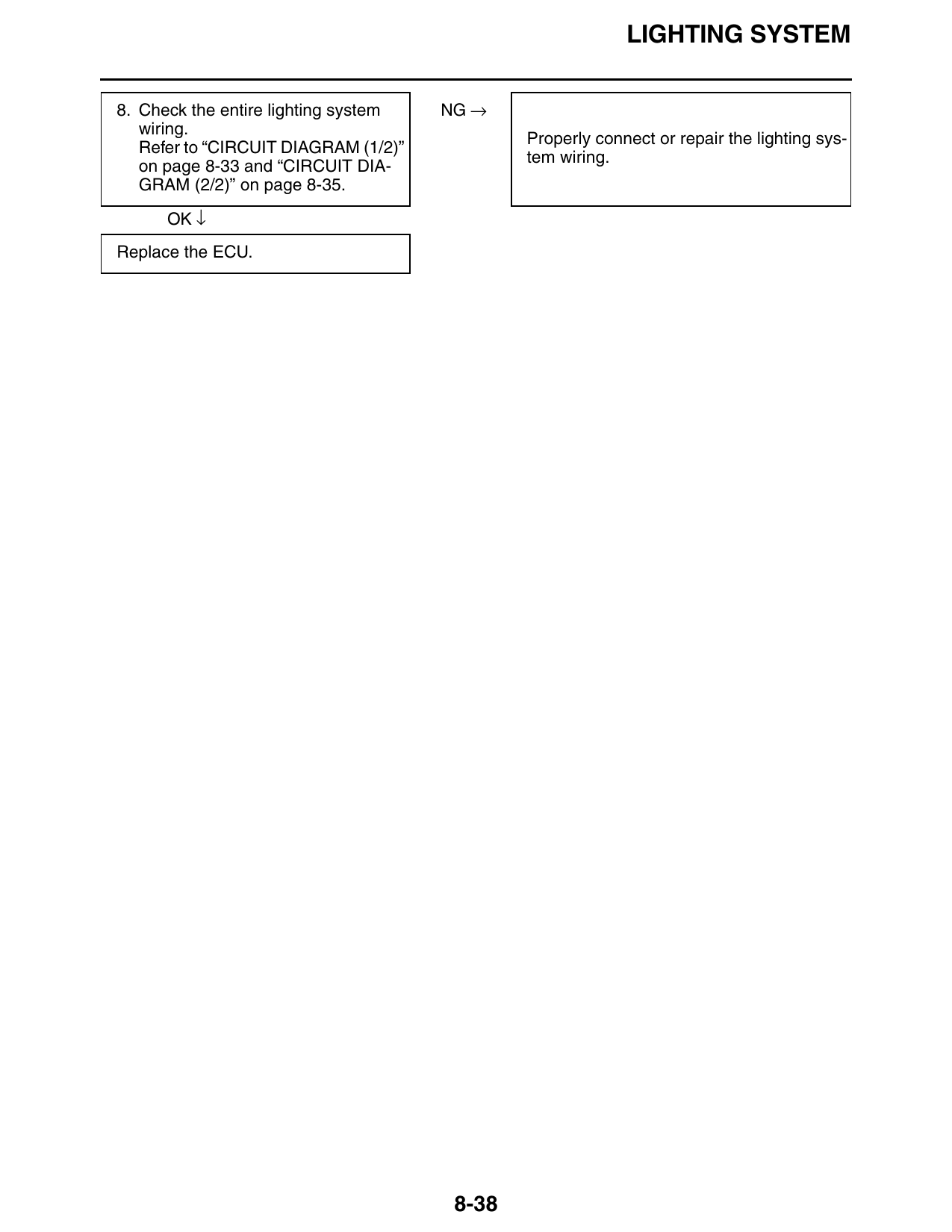

8. Check the entire lighting system   NG →
   wiring.
                                              Properly connect or repair the lighting sys-
   Refer to “CIRCUIT DIAGRAM (1/2)”
                                              tem wiring.
   on page 8-33 and “CIRCUIT DIA-
   GRAM (2/2)” on page 8-35.

      OK ↓
Replace the ECU.
