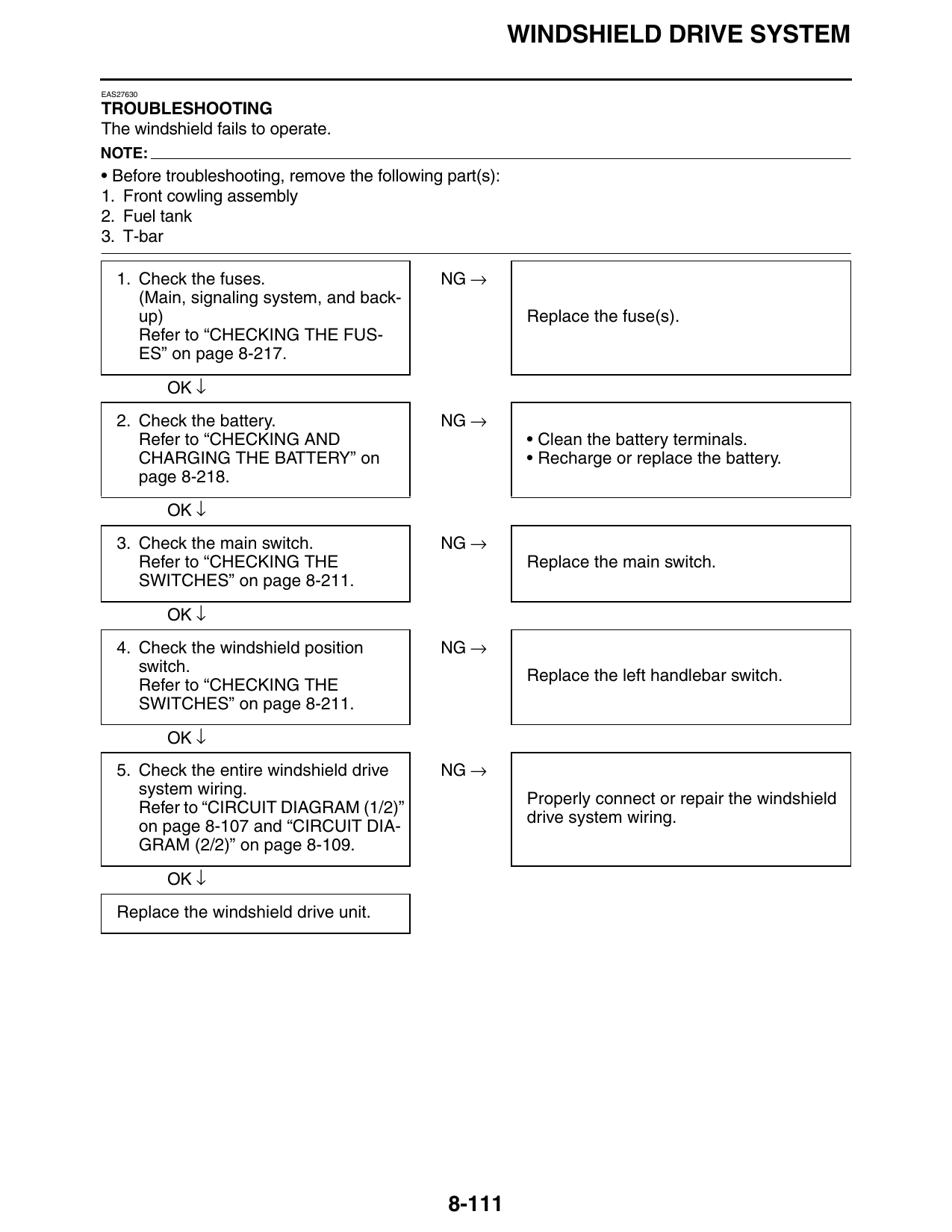

WINDSHIELD DRIVE SYSTEM

EAS27630

TROUBLESHOOTING
The windshield fails to operate.
NOTE:
• Before troubleshooting, remove the following part(s):
1. Front cowling assembly
2. Fuel tank
3. T-bar

   1. Check the fuses.                        NG →
      (Main, signaling system, and back-
      up)                                                  Replace the fuse(s).
      Refer to “CHECKING THE FUS-
      ES” on page 8-217.

           OK ↓
   2. Check the battery.                      NG →
      Refer to “CHECKING AND                               • Clean the battery terminals.
      CHARGING THE BATTERY” on                             • Recharge or replace the battery.
      page 8-218.
           OK ↓
   3. Check the main switch.                  NG →
      Refer to “CHECKING THE                               Replace the main switch.
      SWITCHES” on page 8-211.

           OK ↓
   4. Check the windshield position           NG →
      switch.
                                                           Replace the left handlebar switch.
      Refer to “CHECKING THE
      SWITCHES” on page 8-211.

           OK ↓
   5. Check the entire windshield drive       NG →
      system wiring.
                                                           Properly connect or repair the windshield
      Refer to “CIRCUIT DIAGRAM (1/2)”
                                                           drive system wiring.
      on page 8-107 and “CIRCUIT DIA-
      GRAM (2/2)” on page 8-109.
           OK ↓
   Replace the windshield drive unit.
