Troubleshooting

ACCESSORY BOX SYSTEM

ET3P61012

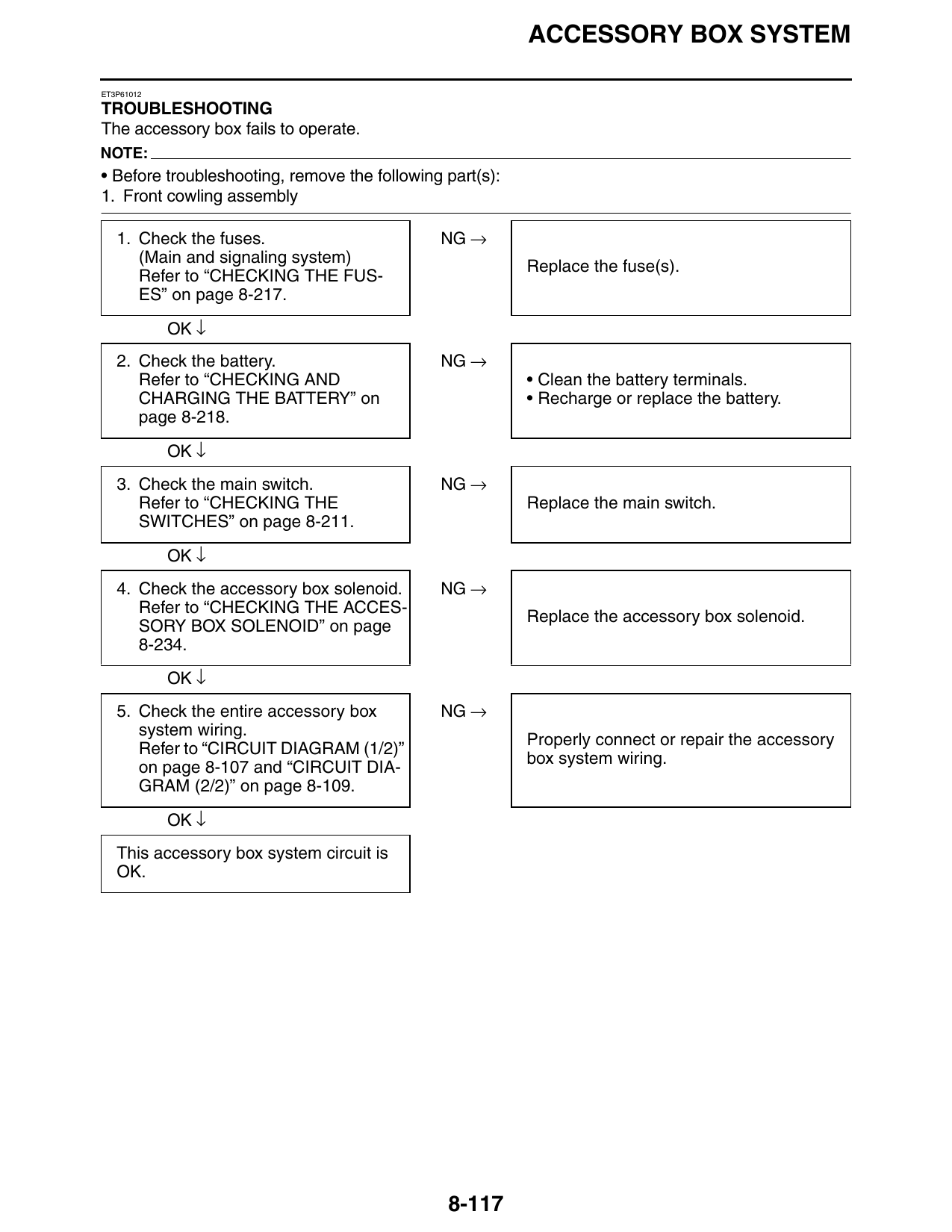

TROUBLESHOOTING
The accessory box fails to operate.
NOTE:
• Before troubleshooting, remove the following part(s):
1. Front cowling assembly

   1. Check the fuses.                        NG →
      (Main and signaling system)
                                                          Replace the fuse(s).
      Refer to “CHECKING THE FUS-
      ES” on page 8-217.

            OK ↓
   2. Check the battery.                      NG →
      Refer to “CHECKING AND                              • Clean the battery terminals.
      CHARGING THE BATTERY” on                            • Recharge or replace the battery.
      page 8-218.

            OK ↓
   3. Check the main switch.                  NG →
      Refer to “CHECKING THE                              Replace the main switch.
      SWITCHES” on page 8-211.

            OK ↓
   4. Check the accessory box solenoid.       NG →
      Refer to “CHECKING THE ACCES-
                                                          Replace the accessory box solenoid.
      SORY BOX SOLENOID” on page
      8-234.
            OK ↓
   5. Check the entire accessory box          NG →
      system wiring.
                                                          Properly connect or repair the accessory
      Refer to “CIRCUIT DIAGRAM (1/2)”
                                                          box system wiring.
      on page 8-107 and “CIRCUIT DIA-
      GRAM (2/2)” on page 8-109.

            OK ↓
   This accessory box system circuit is
   OK.
