Troubleshooting (FJR13A)

ELECTRIC STARTING SYSTEM

EAS27190

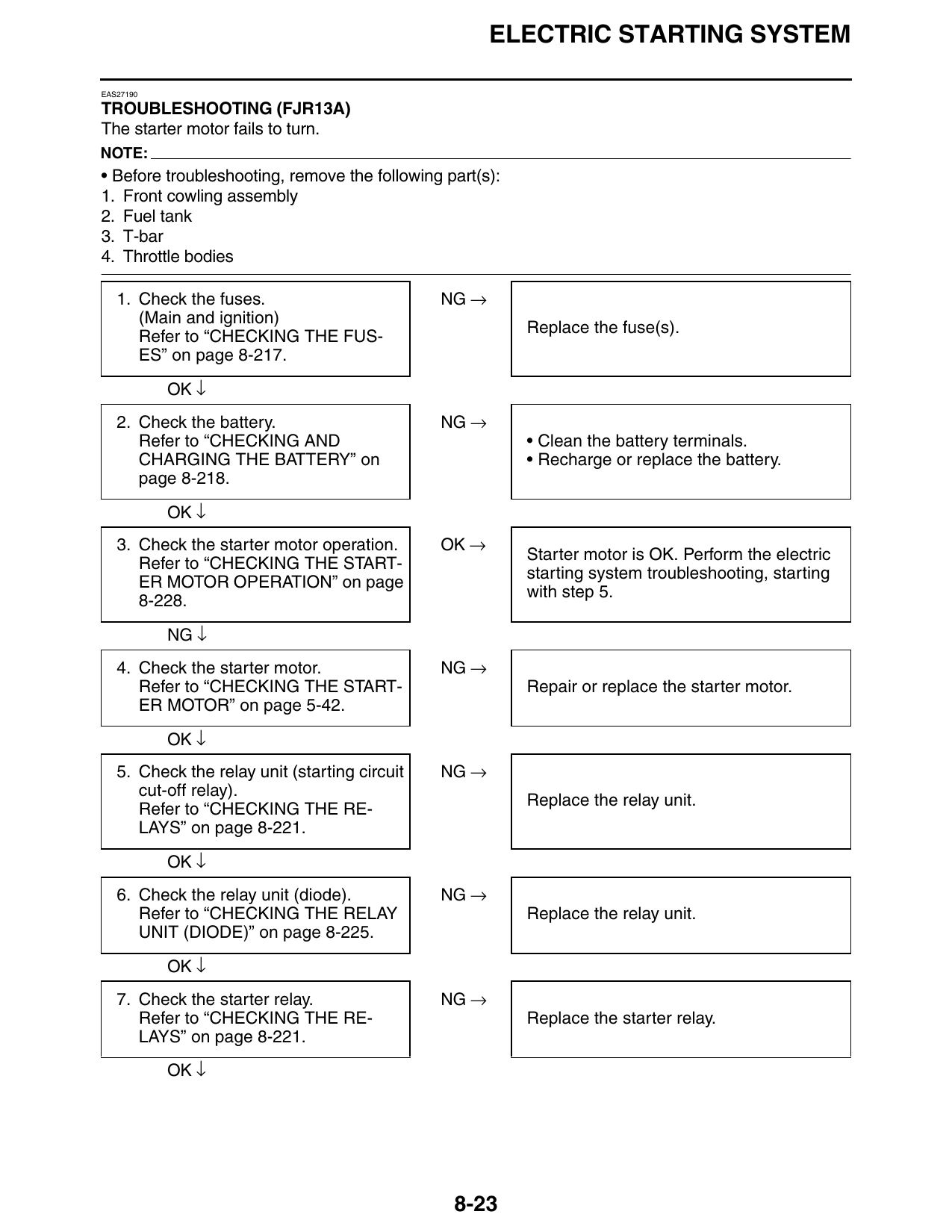

TROUBLESHOOTING (FJR13A)
The starter motor fails to turn.
NOTE:
• Before troubleshooting, remove the following part(s):
1. Front cowling assembly
2. Fuel tank
3. T-bar
4. Throttle bodies

   1. Check the fuses.                         NG →
      (Main and ignition)
                                                          Replace the fuse(s).
      Refer to “CHECKING THE FUS-
      ES” on page 8-217.
           OK ↓
   2. Check the battery.                       NG →
      Refer to “CHECKING AND                              • Clean the battery terminals.
      CHARGING THE BATTERY” on                            • Recharge or replace the battery.
      page 8-218.

           OK ↓
   3. Check the starter motor operation.       OK →
                                                          Starter motor is OK. Perform the electric
      Refer to “CHECKING THE START-
                                                          starting system troubleshooting, starting
      ER MOTOR OPERATION” on page
                                                          with step 5.
      8-228.

           NG ↓
   4. Check the starter motor.                 NG →
      Refer to “CHECKING THE START-                       Repair or replace the starter motor.
      ER MOTOR” on page 5-42.
           OK ↓
   5. Check the relay unit (starting circuit   NG →
      cut-off relay).
                                                          Replace the relay unit.
      Refer to “CHECKING THE RE-
      LAYS” on page 8-221.

           OK ↓
   6. Check the relay unit (diode).            NG →
      Refer to “CHECKING THE RELAY                        Replace the relay unit.
      UNIT (DIODE)” on page 8-225.

           OK ↓
   7. Check the starter relay.                 NG →
      Refer to “CHECKING THE RE-                          Replace the starter relay.
      LAYS” on page 8-221.
           OK ↓

                                                8-23

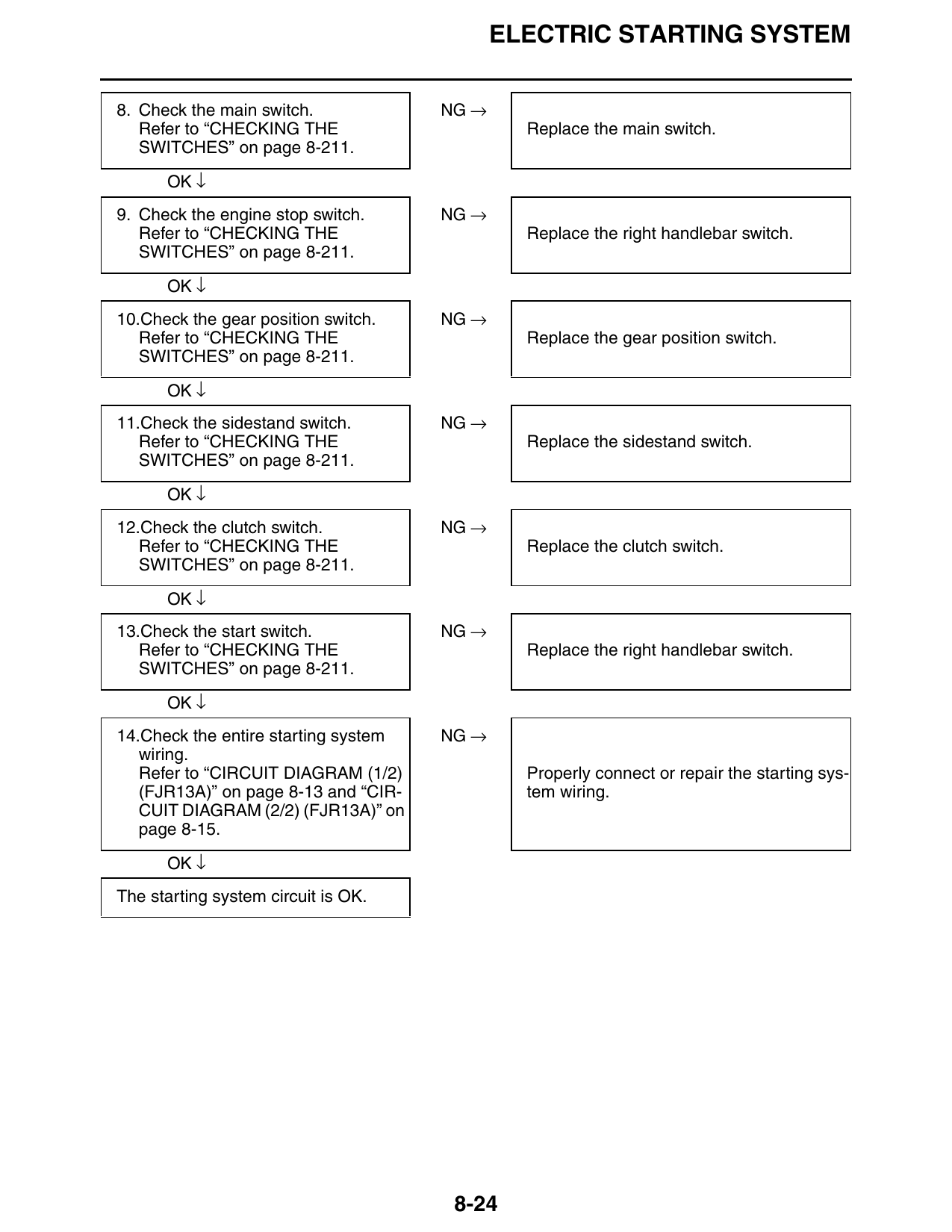

                                             ELECTRIC STARTING SYSTEM

8. Check the main switch.             NG →
   Refer to “CHECKING THE                      Replace the main switch.
   SWITCHES” on page 8-211.

      OK ↓
9. Check the engine stop switch.      NG →
   Refer to “CHECKING THE                      Replace the right handlebar switch.
   SWITCHES” on page 8-211.

      OK ↓
10.Check the gear position switch.    NG →
   Refer to “CHECKING THE                      Replace the gear position switch.
   SWITCHES” on page 8-211.

      OK ↓
11.Check the sidestand switch.        NG →
   Refer to “CHECKING THE                      Replace the sidestand switch.
   SWITCHES” on page 8-211.
      OK ↓
12.Check the clutch switch.           NG →
   Refer to “CHECKING THE                      Replace the clutch switch.
   SWITCHES” on page 8-211.

      OK ↓
13.Check the start switch.            NG →
   Refer to “CHECKING THE                      Replace the right handlebar switch.
   SWITCHES” on page 8-211.

      OK ↓
14.Check the entire starting system   NG →
   wiring.
   Refer to “CIRCUIT DIAGRAM (1/2)             Properly connect or repair the starting sys-
   (FJR13A)” on page 8-13 and “CIR-            tem wiring.
   CUIT DIAGRAM (2/2) (FJR13A)” on
   page 8-15.

      OK ↓
The starting system circuit is OK.

                                       8-24
