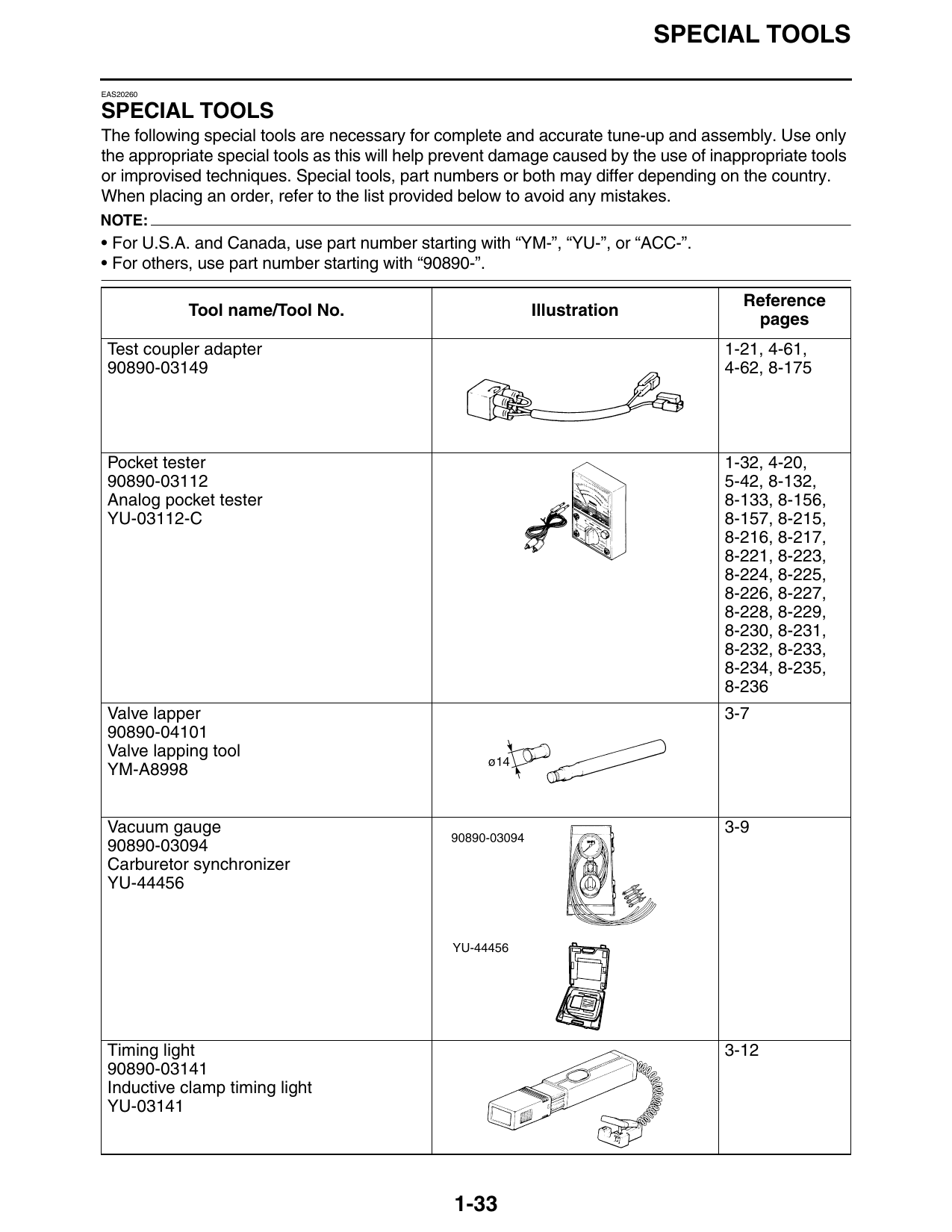

SPECIAL TOOLS
EAS20260
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use only
the appropriate special tools as this will help prevent damage caused by the use of inappropriate tools
or improvised techniques. Special tools, part numbers or both may differ depending on the country.
When placing an order, refer to the list provided below to avoid any mistakes.
NOTE:
• For U.S.A. and Canada, use part number starting with “YM-”, “YU-”, or “ACC-”.
• For others, use part number starting with “90890-”.
Reference
Tool name/Tool No. Illustration
pages
Test coupler adapter 1-21, 4-61,
90890-03149 4-62, 8-175
Pocket tester 1-32, 4-20,
90890-03112 5-42, 8-132,
Analog pocket tester 8-133, 8-156,
YU-03112-C 8-157, 8-215,
8-216, 8-217,
8-221, 8-223,
8-224, 8-225,
8-226, 8-227,
8-228, 8-229,
8-230, 8-231,
8-232, 8-233,
8-234, 8-235,
8-236
Valve lapper 3-7
90890-04101
Valve lapping tool
YM-A8998
Vacuum gauge 3-9
90890-03094
Carburetor synchronizer
YU-44456
YU-44456
Timing light 3-12
90890-03141
Inductive clamp timing light
YU-03141
1-33
SPECIAL TOOLS

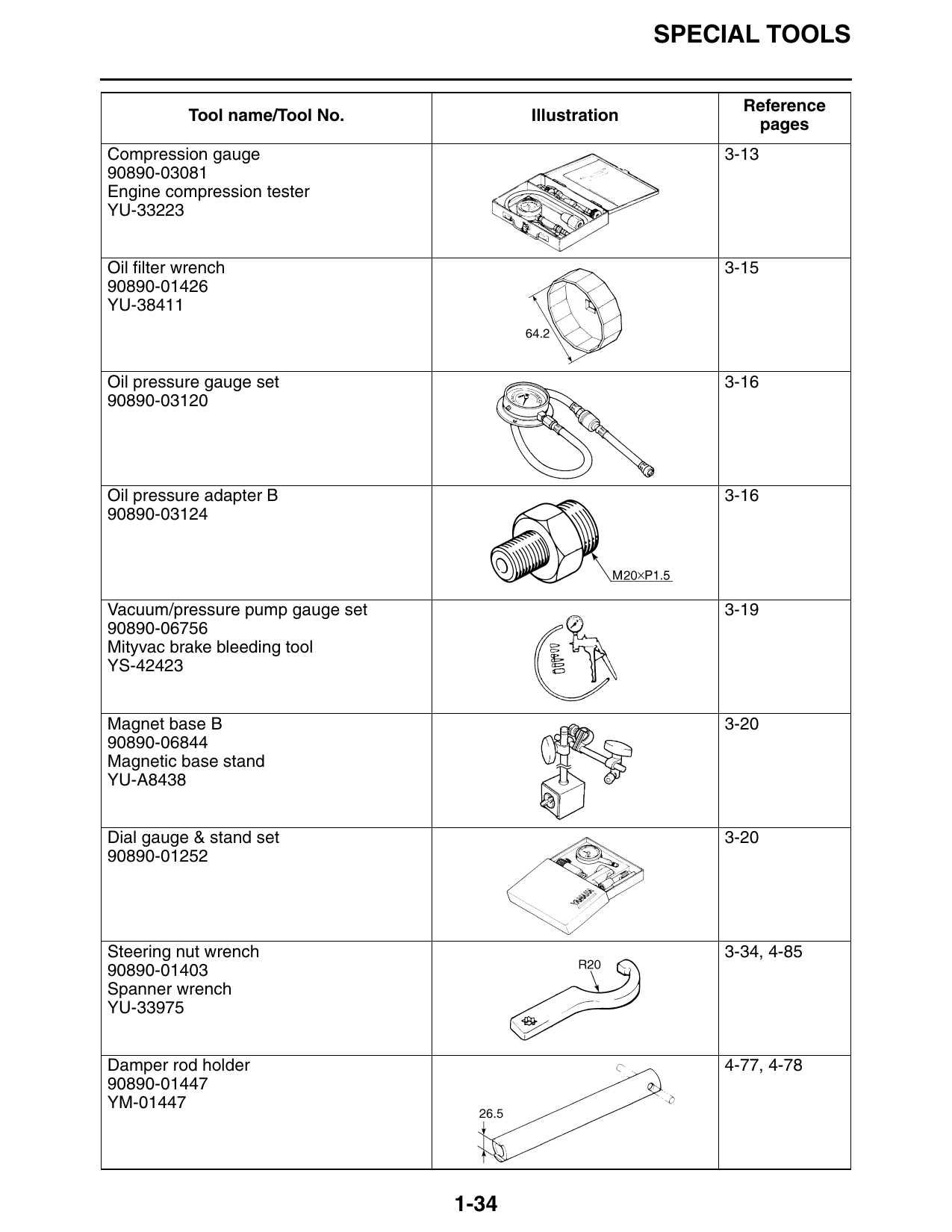

Reference
Tool name/Tool No. Illustration
pages
Compression gauge 3-13
90890-03081
Engine compression tester
YU-33223
Oil filter wrench 3-15
90890-01426
YU-38411
Oil pressure gauge set 3-16
90890-03120
Oil pressure adapter B 3-16
90890-03124
Vacuum/pressure pump gauge set 3-19
90890-06756
Mityvac brake bleeding tool
YS-42423
Magnet base B 3-20
90890-06844
Magnetic base stand
YU-A8438
Dial gauge & stand set 3-20
90890-01252
Steering nut wrench 3-34, 4-85
90890-01403
Spanner wrench
YU-33975
Damper rod holder 4-77, 4-78
90890-01447
YM-01447
1-34
SPECIAL TOOLS

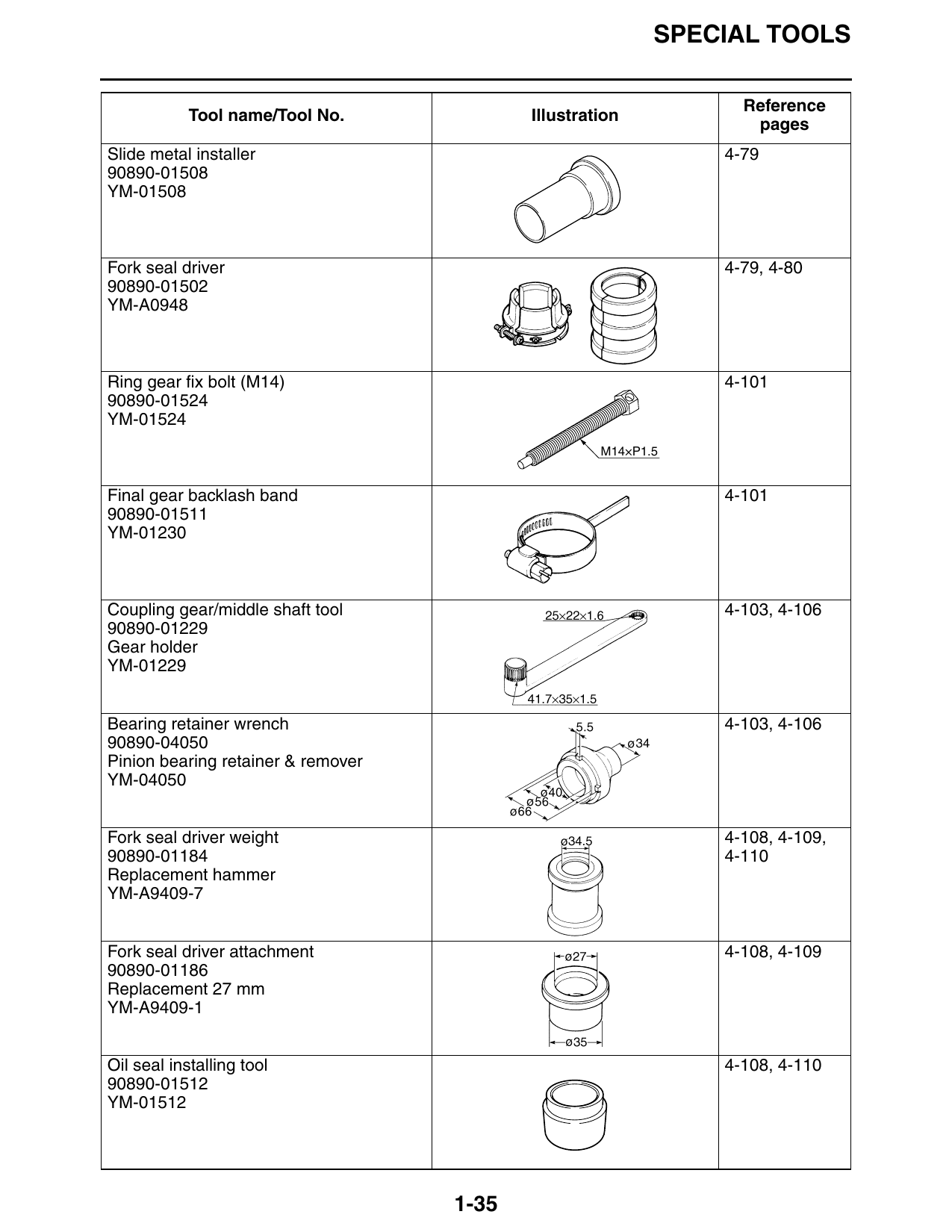

Reference
Tool name/Tool No. Illustration
pages
Slide metal installer 4-79
90890-01508
YM-01508
Fork seal driver 4-79, 4-80
90890-01502
YM-A0948
Ring gear fix bolt (M14) 4-101
90890-01524
YM-01524
M14×P1.5
Final gear backlash band 4-101
90890-01511
YM-01230
Coupling gear/middle shaft tool 4-103, 4-106
90890-01229
Gear holder
YM-01229
Bearing retainer wrench 4-103, 4-106
90890-04050
Pinion bearing retainer & remover
YM-04050
Fork seal driver weight 4-108, 4-109,
90890-01184 4-110
Replacement hammer
YM-A9409-7
Fork seal driver attachment 4-108, 4-109
90890-01186
Replacement 27 mm
YM-A9409-1
Oil seal installing tool 4-108, 4-110
90890-01512
YM-01512
1-35
SPECIAL TOOLS

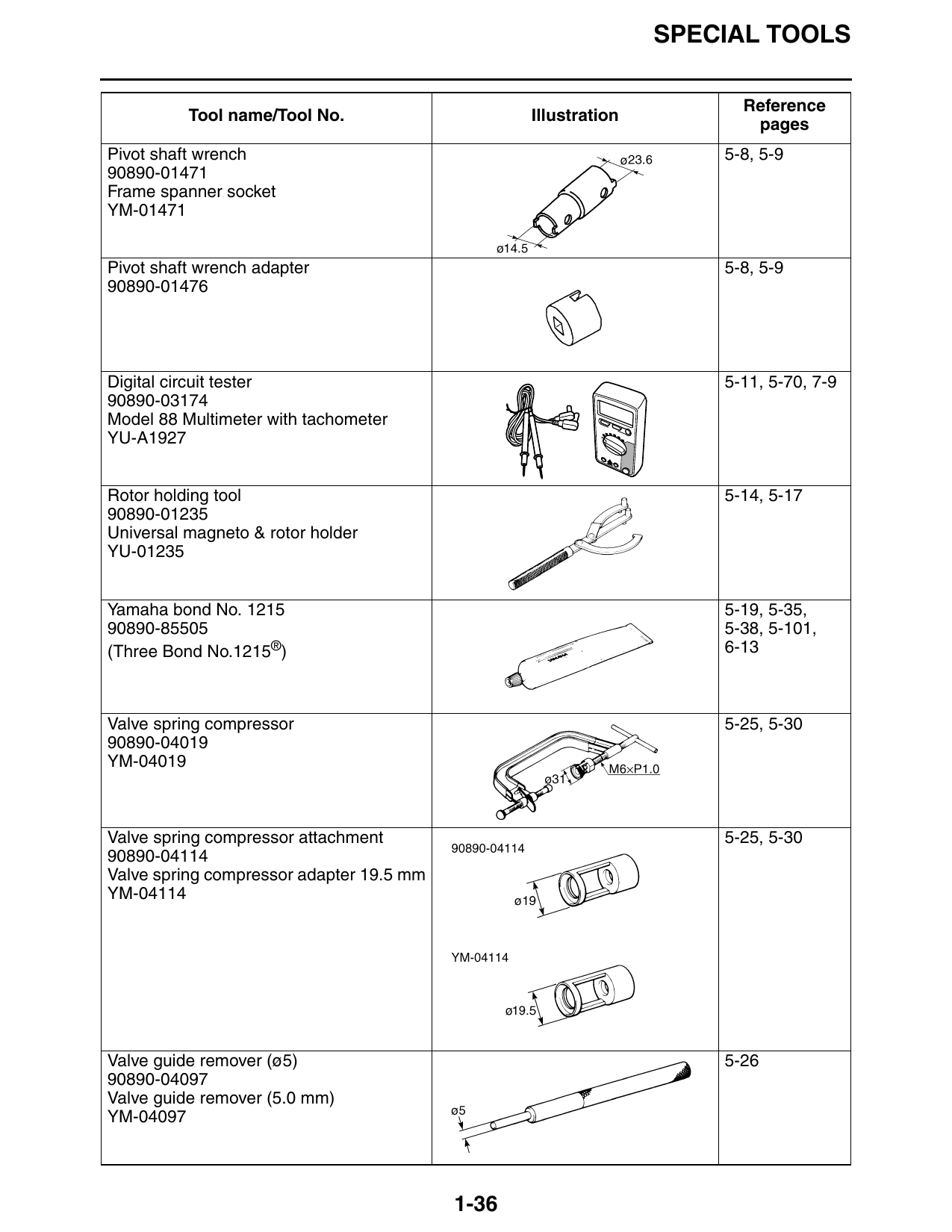

Reference
Tool name/Tool No. Illustration
pages
Pivot shaft wrench 5-8, 5-9
90890-01471
Frame spanner socket
YM-01471
Pivot shaft wrench adapter 5-8, 5-9
90890-01476
Digital circuit tester 5-11, 5-70, 7-9
90890-03174
Model 88 Multimeter with tachometer
YU-A1927
Rotor holding tool 5-14, 5-17
90890-01235
Universal magneto & rotor holder
YU-01235
Yamaha bond No. 1215 5-19, 5-35,
90890-85505 5-38, 5-101,
(Three Bond No.1215®) 6-13
Valve spring compressor 5-25, 5-30
90890-04019
YM-04019
Valve spring compressor attachment 5-25, 5-30
90890-04114
Valve spring compressor adapter 19.5 mm
YM-04114
Valve guide remover (ø5) 5-26
90890-04097
Valve guide remover (5.0 mm)
YM-04097
1-36
SPECIAL TOOLS

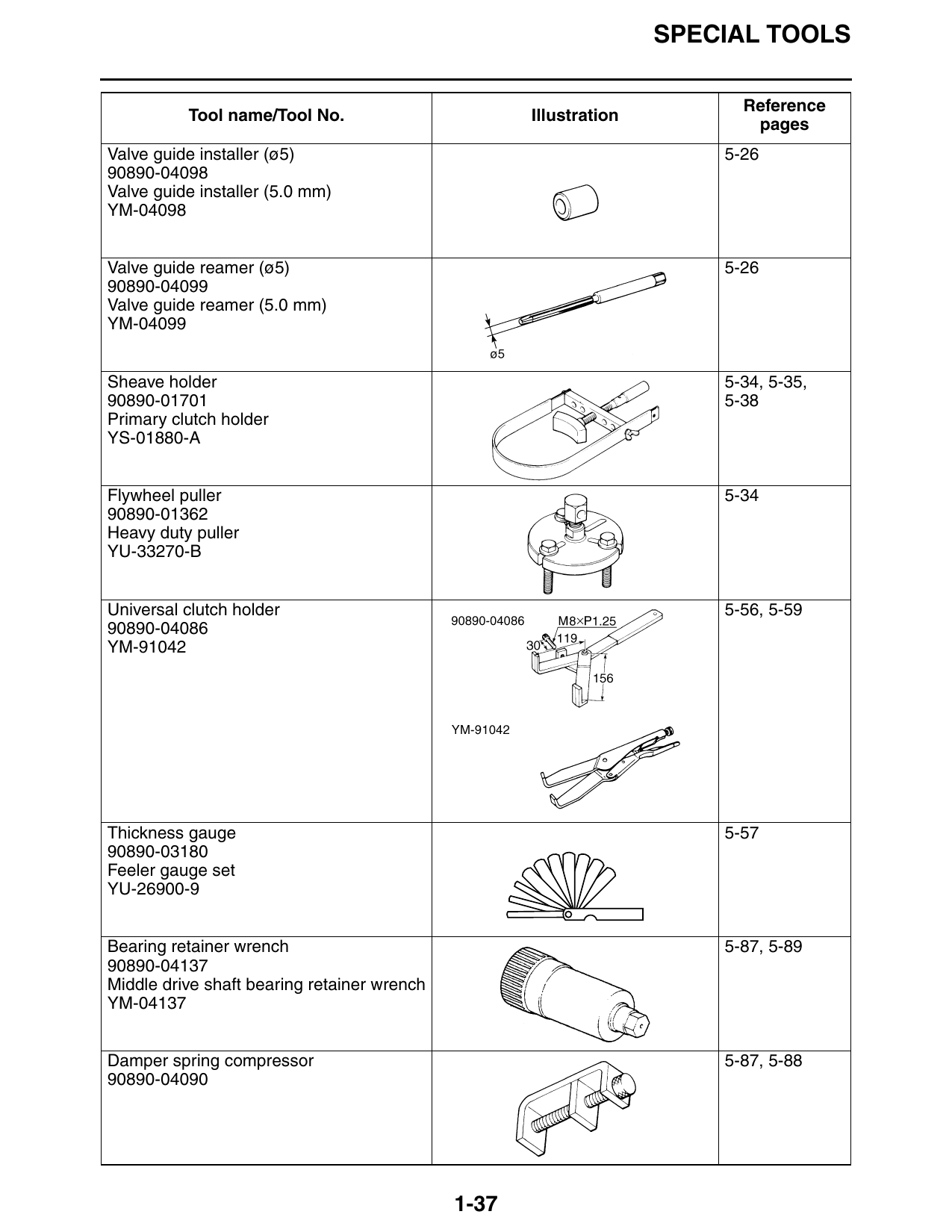

Reference
Tool name/Tool No. Illustration
pages
Valve guide installer (ø5) 5-26
90890-04098
Valve guide installer (5.0 mm)
YM-04098
Valve guide reamer (ø5) 5-26
90890-04099
Valve guide reamer (5.0 mm)
YM-04099
Sheave holder 5-34, 5-35,
90890-01701 5-38
Primary clutch holder
YS-01880-A
Flywheel puller 5-34
90890-01362
Heavy duty puller
YU-33270-B
Universal clutch holder 5-56, 5-59
90890-04086
YM-91042
Thickness gauge 5-57
90890-03180
Feeler gauge set
YU-26900-9
Bearing retainer wrench 5-87, 5-89
90890-04137
Middle drive shaft bearing retainer wrench
YM-04137
Damper spring compressor 5-87, 5-88
90890-04090
1-37
SPECIAL TOOLS

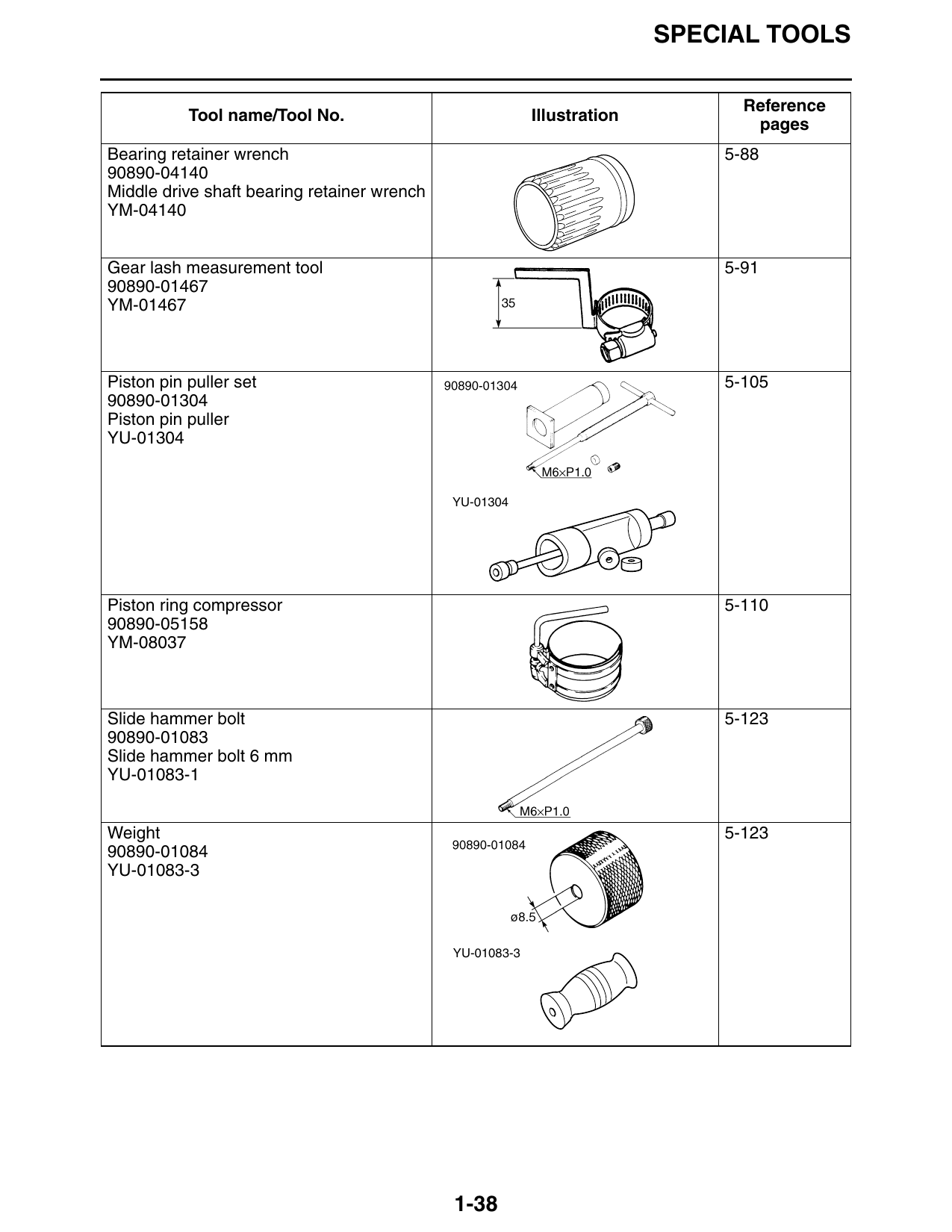

Reference
Tool name/Tool No. Illustration
pages
Bearing retainer wrench 5-88
90890-04140
Middle drive shaft bearing retainer wrench
YM-04140
Gear lash measurement tool 5-91
90890-01467
YM-01467
Piston pin puller set 5-105
90890-01304
Piston pin puller
YU-01304
YU-01304
Piston ring compressor 5-110
90890-05158
YM-08037
Slide hammer bolt 5-123
90890-01083
Slide hammer bolt 6 mm
YU-01083-1
Weight 5-123
90890-01084
YU-01083-3
YU-01083-3
1-38
SPECIAL TOOLS

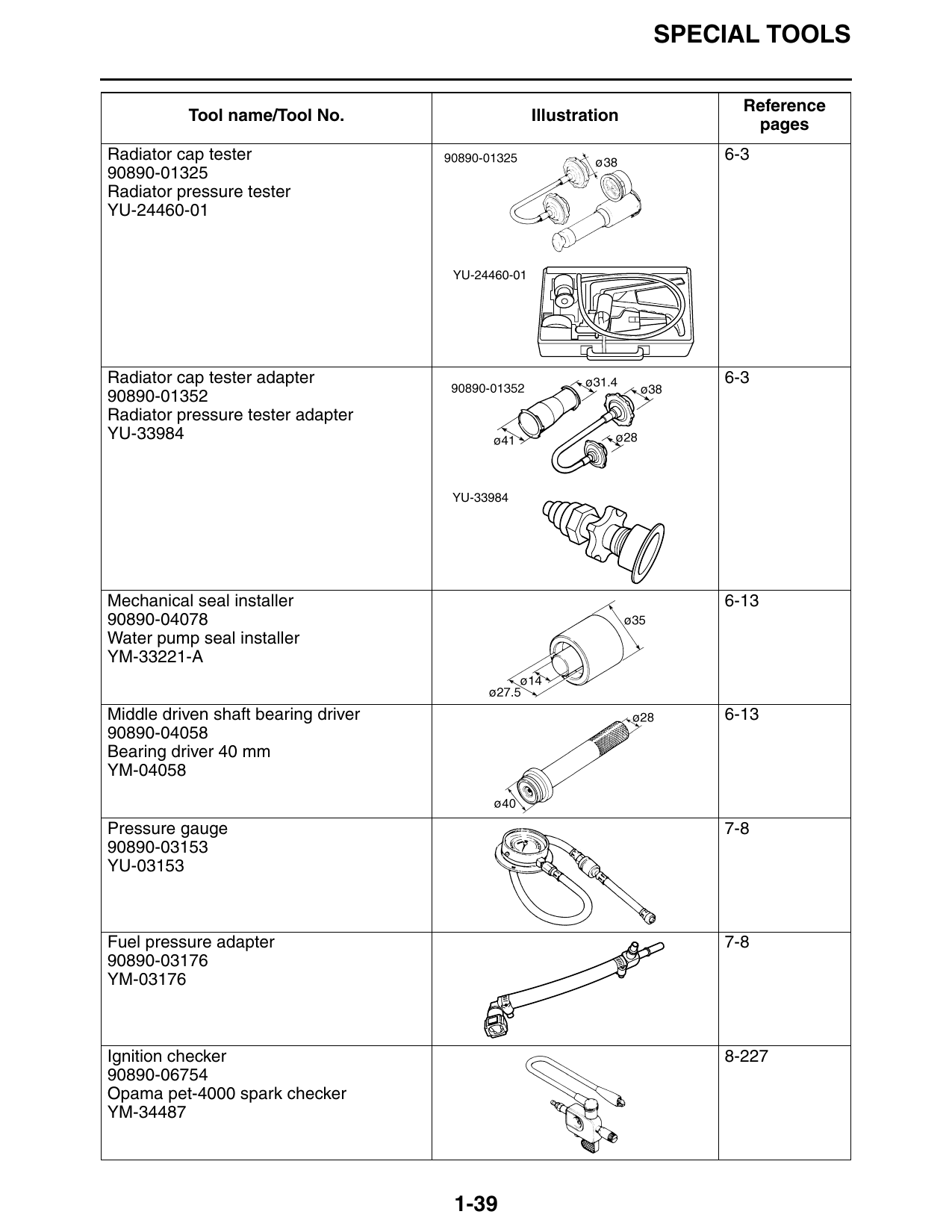

Reference
Tool name/Tool No. Illustration
pages
Radiator cap tester 6-3
90890-01325
Radiator pressure tester
YU-24460-01
YU-24460-01
Radiator cap tester adapter 6-3
90890-01352
Radiator pressure tester adapter
YU-33984
YU-33984
Mechanical seal installer 6-13
90890-04078
Water pump seal installer
YM-33221-A
Middle driven shaft bearing driver 6-13
90890-04058
Bearing driver 40 mm
YM-04058
Pressure gauge 7-8
90890-03153
YU-03153
Fuel pressure adapter 7-8
90890-03176
YM-03176
Ignition checker 8-227
90890-06754
Opama pet-4000 spark checker
YM-34487
1-39
