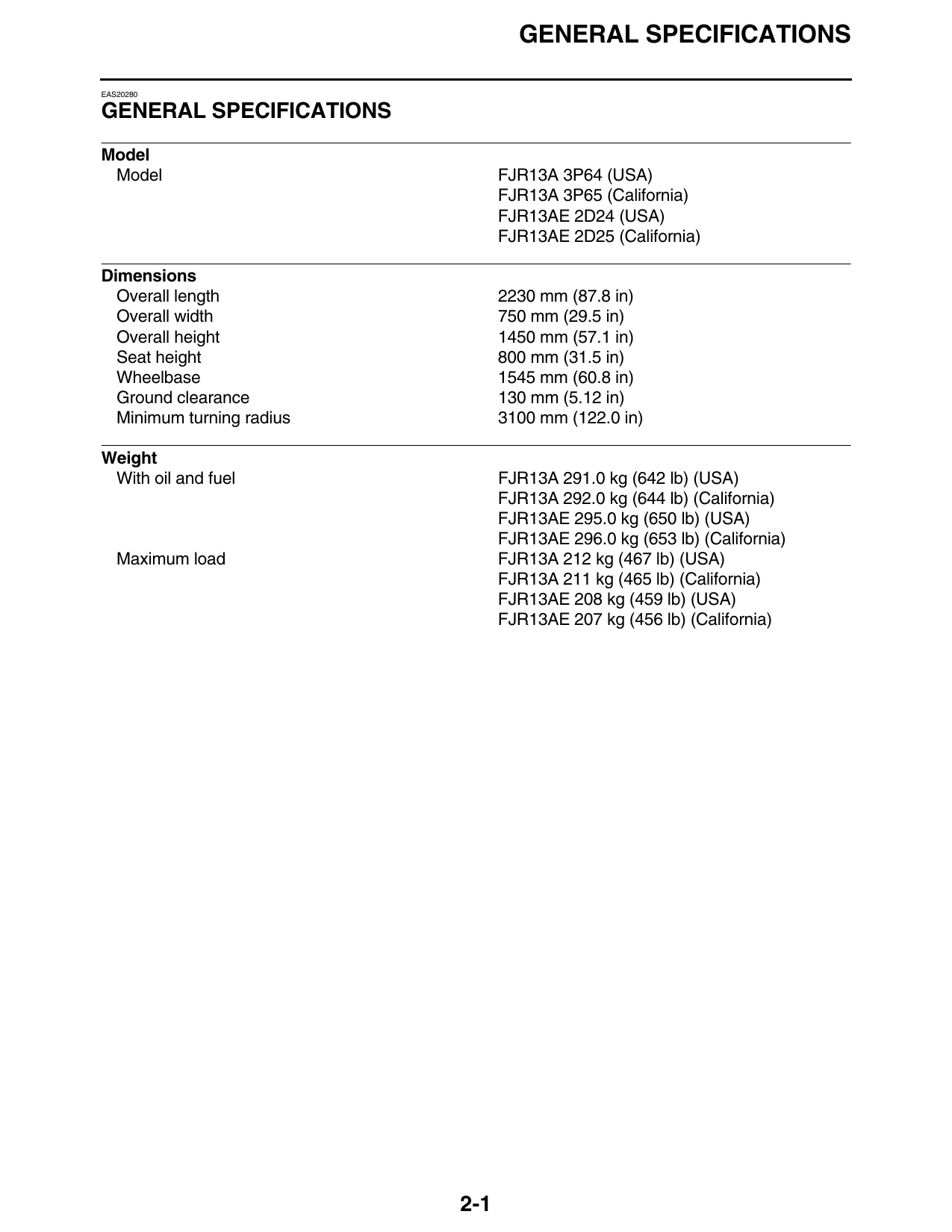

GENERAL SPECIFICATIONS

EAS20280

GENERAL SPECIFICATIONS
Model
 Model                           FJR13A 3P64 (USA)
                                 FJR13A 3P65 (California)
                                 FJR13AE 2D24 (USA)
                                 FJR13AE 2D25 (California)

Dimensions
  Overall length                 2230 mm (87.8 in)
  Overall width                  750 mm (29.5 in)
  Overall height                 1450 mm (57.1 in)
  Seat height                    800 mm (31.5 in)
  Wheelbase                      1545 mm (60.8 in)
  Ground clearance               130 mm (5.12 in)
  Minimum turning radius         3100 mm (122.0 in)

Weight
 With oil and fuel               FJR13A 291.0 kg (642 lb) (USA)
                                 FJR13A 292.0 kg (644 lb) (California)
                                 FJR13AE 295.0 kg (650 lb) (USA)
                                 FJR13AE 296.0 kg (653 lb) (California)
   Maximum load                  FJR13A 212 kg (467 lb) (USA)
                                 FJR13A 211 kg (465 lb) (California)
                                 FJR13AE 208 kg (459 lb) (USA)
                                 FJR13AE 207 kg (456 lb) (California)

                           2-1
