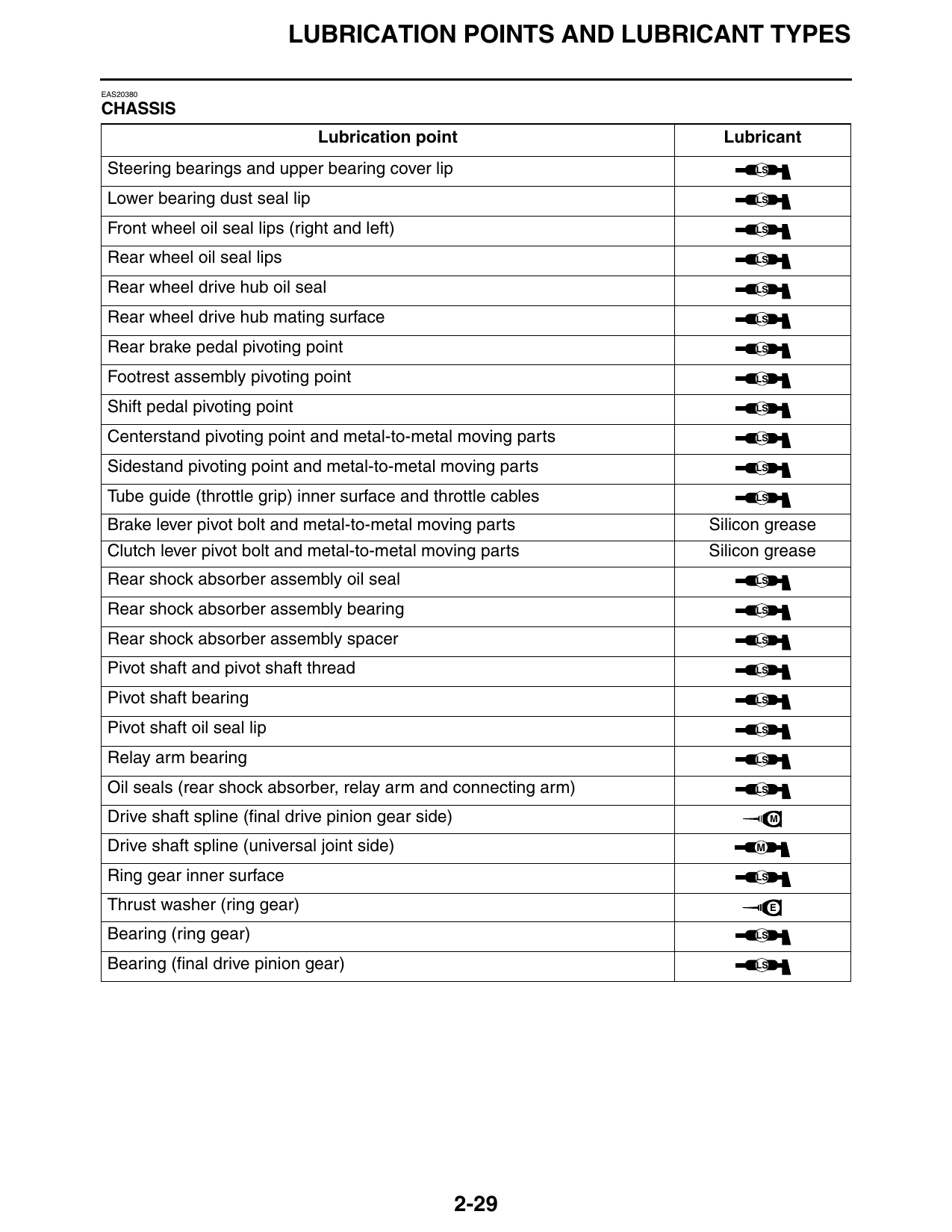

LUBRICATION POINTS AND LUBRICANT TYPES

EAS20380

CHASSIS
                               Lubrication point                  Lubricant
 Steering bearings and upper bearing cover lip                         LS

 Lower bearing dust seal lip                                           LS

 Front wheel oil seal lips (right and left)                            LS

 Rear wheel oil seal lips                                              LS

 Rear wheel drive hub oil seal                                         LS

 Rear wheel drive hub mating surface                                   LS

 Rear brake pedal pivoting point                                       LS

 Footrest assembly pivoting point                                      LS

 Shift pedal pivoting point                                            LS

 Centerstand pivoting point and metal-to-metal moving parts            LS

 Sidestand pivoting point and metal-to-metal moving parts              LS

 Tube guide (throttle grip) inner surface and throttle cables          LS

 Brake lever pivot bolt and metal-to-metal moving parts          Silicon grease
 Clutch lever pivot bolt and metal-to-metal moving parts         Silicon grease
 Rear shock absorber assembly oil seal                                 LS

 Rear shock absorber assembly bearing                                  LS

 Rear shock absorber assembly spacer                                   LS

 Pivot shaft and pivot shaft thread                                    LS

 Pivot shaft bearing                                                   LS

 Pivot shaft oil seal lip                                              LS

 Relay arm bearing                                                     LS

 Oil seals (rear shock absorber, relay arm and connecting arm)         LS

 Drive shaft spline (final drive pinion gear side)                          M

 Drive shaft spline (universal joint side)                             M

 Ring gear inner surface                                               LS

 Thrust washer (ring gear)                                                  E

 Bearing (ring gear)                                                   LS

 Bearing (final drive pinion gear)                                     LS
