LUBRICATION POINTS AND LUBRICANT TYPES

EAS20360

LUBRICATION POINTS AND LUBRICANT TYPES
EAS20370

ENGINE

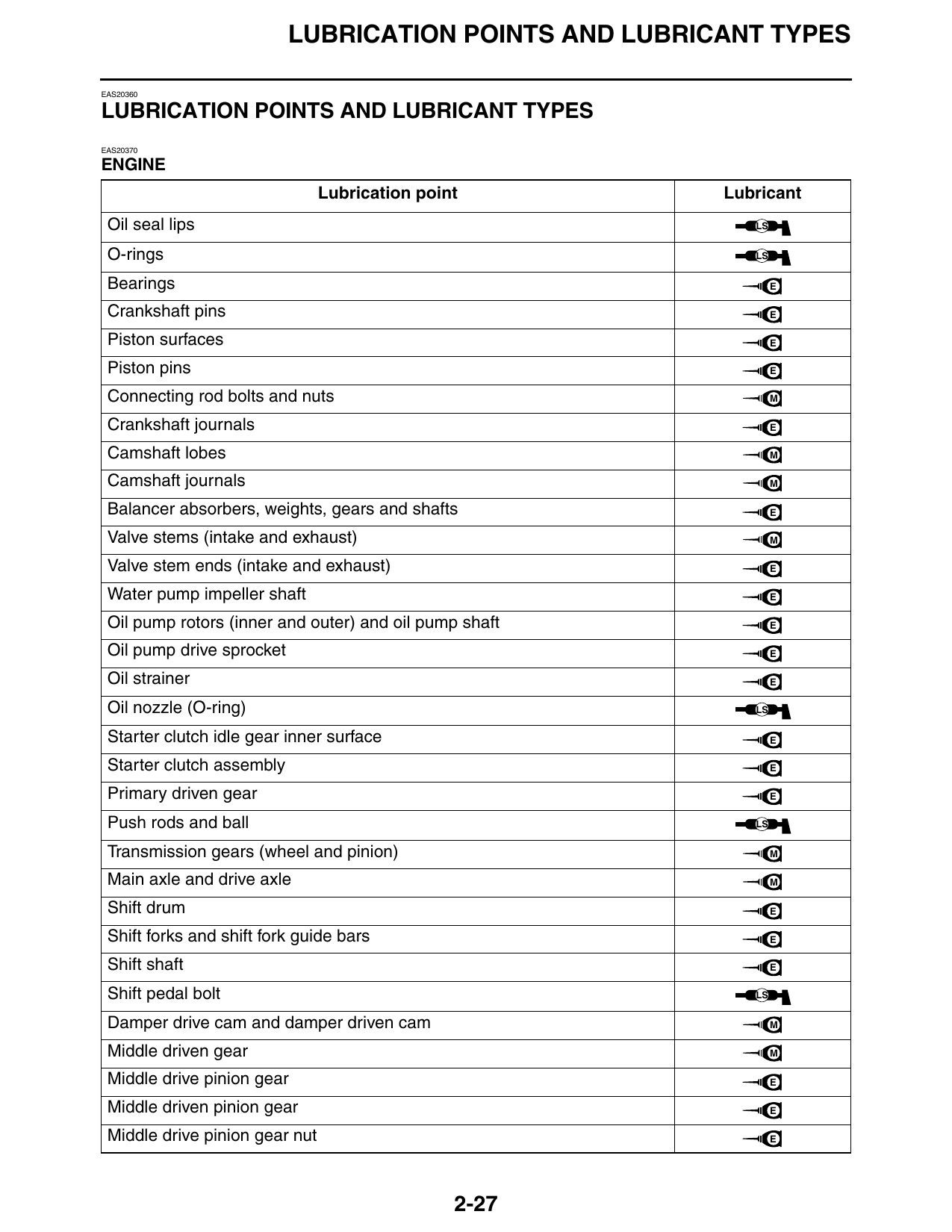

                                Lubrication point       Lubricant
 Oil seal lips                                             LS

 O-rings                                                   LS

 Bearings                                                       E

 Crankshaft pins                                                E

 Piston surfaces                                                E

 Piston pins                                                    E

 Connecting rod bolts and nuts                                  M

 Crankshaft journals                                            E

 Camshaft lobes                                                 M

 Camshaft journals                                              M

 Balancer absorbers, weights, gears and shafts                  E

 Valve stems (intake and exhaust)                               M

 Valve stem ends (intake and exhaust)                           E

 Water pump impeller shaft                                      E

 Oil pump rotors (inner and outer) and oil pump shaft           E

 Oil pump drive sprocket                                        E

 Oil strainer                                                   E

 Oil nozzle (O-ring)                                       LS

 Starter clutch idle gear inner surface                         E

 Starter clutch assembly                                        E

 Primary driven gear                                            E

 Push rods and ball                                        LS

 Transmission gears (wheel and pinion)                          M

 Main axle and drive axle                                       M

 Shift drum                                                     E

 Shift forks and shift fork guide bars                          E

 Shift shaft                                                    E

 Shift pedal bolt                                          LS

 Damper drive cam and damper driven cam                         M

 Middle driven gear                                             M

 Middle drive pinion gear                                       E

 Middle driven pinion gear                                      E

 Middle drive pinion gear nut                                   E

                                                2-27
                      LUBRICATION POINTS AND LUBRICANT TYPES

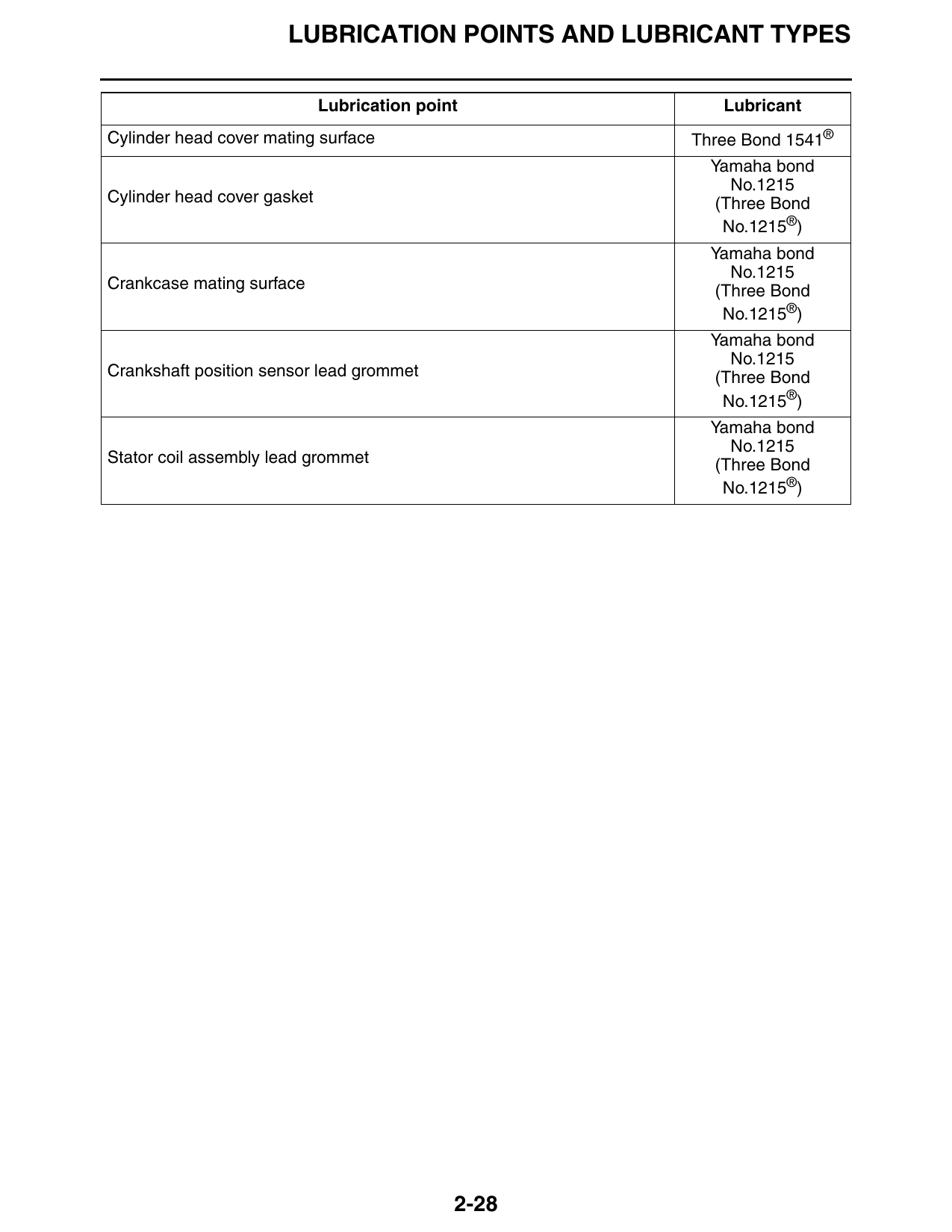

                             Lubrication point         Lubricant
Cylinder head cover mating surface                  Three Bond 1541®
                                                      Yamaha bond
                                                         No.1215
Cylinder head cover gasket                             (Three Bond
                                                        No.1215®)
                                                      Yamaha bond
                                                         No.1215
Crankcase mating surface                               (Three Bond
                                                        No.1215®)
                                                      Yamaha bond
                                                         No.1215
Crankshaft position sensor lead grommet                (Three Bond
                                                        No.1215®)
                                                      Yamaha bond
                                                         No.1215
Stator coil assembly lead grommet                      (Three Bond
                                                        No.1215®)
