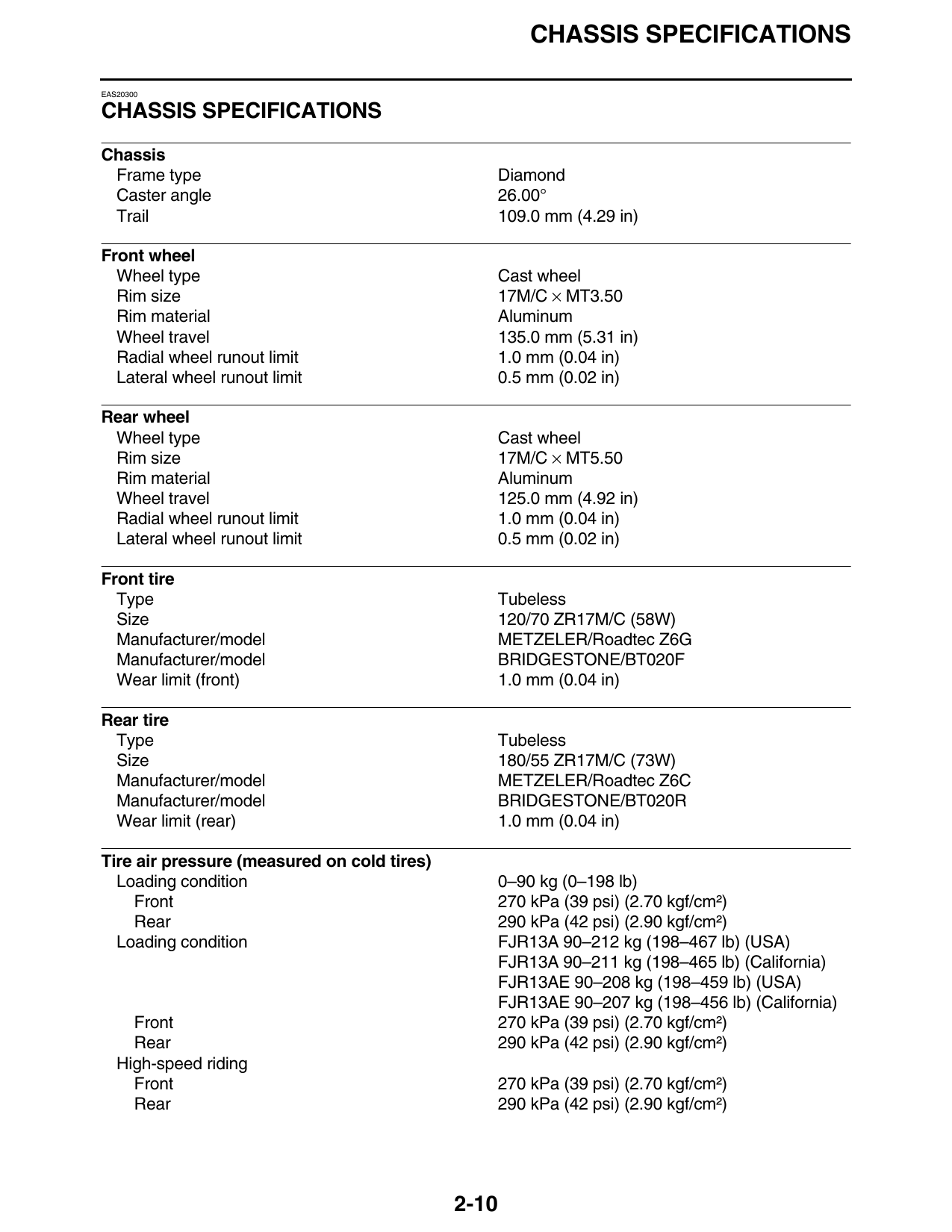

CHASSIS SPECIFICATIONS
Chassis
 Frame type                                         Diamond
 Caster angle                                       26.00°
 Trail                                              109.0 mm (4.29 in)

Front wheel
  Wheel type                                        Cast wheel
  Rim size                                          17M/C × MT3.50
  Rim material                                      Aluminum
  Wheel travel                                      135.0 mm (5.31 in)
  Radial wheel runout limit                         1.0 mm (0.04 in)
  Lateral wheel runout limit                        0.5 mm (0.02 in)

Rear wheel
 Wheel type                                         Cast wheel
 Rim size                                           17M/C × MT5.50
 Rim material                                       Aluminum
 Wheel travel                                       125.0 mm (4.92 in)
 Radial wheel runout limit                          1.0 mm (0.04 in)
 Lateral wheel runout limit                         0.5 mm (0.02 in)

Front tire
  Type                                              Tubeless
  Size                                              120/70 ZR17M/C (58W)
  Manufacturer/model                                METZELER/Roadtec Z6G
  Manufacturer/model                                BRIDGESTONE/BT020F
  Wear limit (front)                                1.0 mm (0.04 in)

Rear tire
 Type                                               Tubeless
 Size                                               180/55 ZR17M/C (73W)
 Manufacturer/model                                 METZELER/Roadtec Z6C
 Manufacturer/model                                 BRIDGESTONE/BT020R
 Wear limit (rear)                                  1.0 mm (0.04 in)

Tire air pressure (measured on cold tires)
  Loading condition                                 0–90 kg (0–198 lb)
     Front                                          270 kPa (39 psi) (2.70 kgf/cm²)
     Rear                                           290 kPa (42 psi) (2.90 kgf/cm²)
  Loading condition                                 FJR13A 90–212 kg (198–467 lb) (USA)
                                                    FJR13A 90–211 kg (198–465 lb) (California)
                                                    FJR13AE 90–208 kg (198–459 lb) (USA)
                                                    FJR13AE 90–207 kg (198–456 lb) (California)
     Front                                          270 kPa (39 psi) (2.70 kgf/cm²)
     Rear                                           290 kPa (42 psi) (2.90 kgf/cm²)
   High-speed riding
     Front                                          270 kPa (39 psi) (2.70 kgf/cm²)
     Rear                                           290 kPa (42 psi) (2.90 kgf/cm²)

                                             2-10

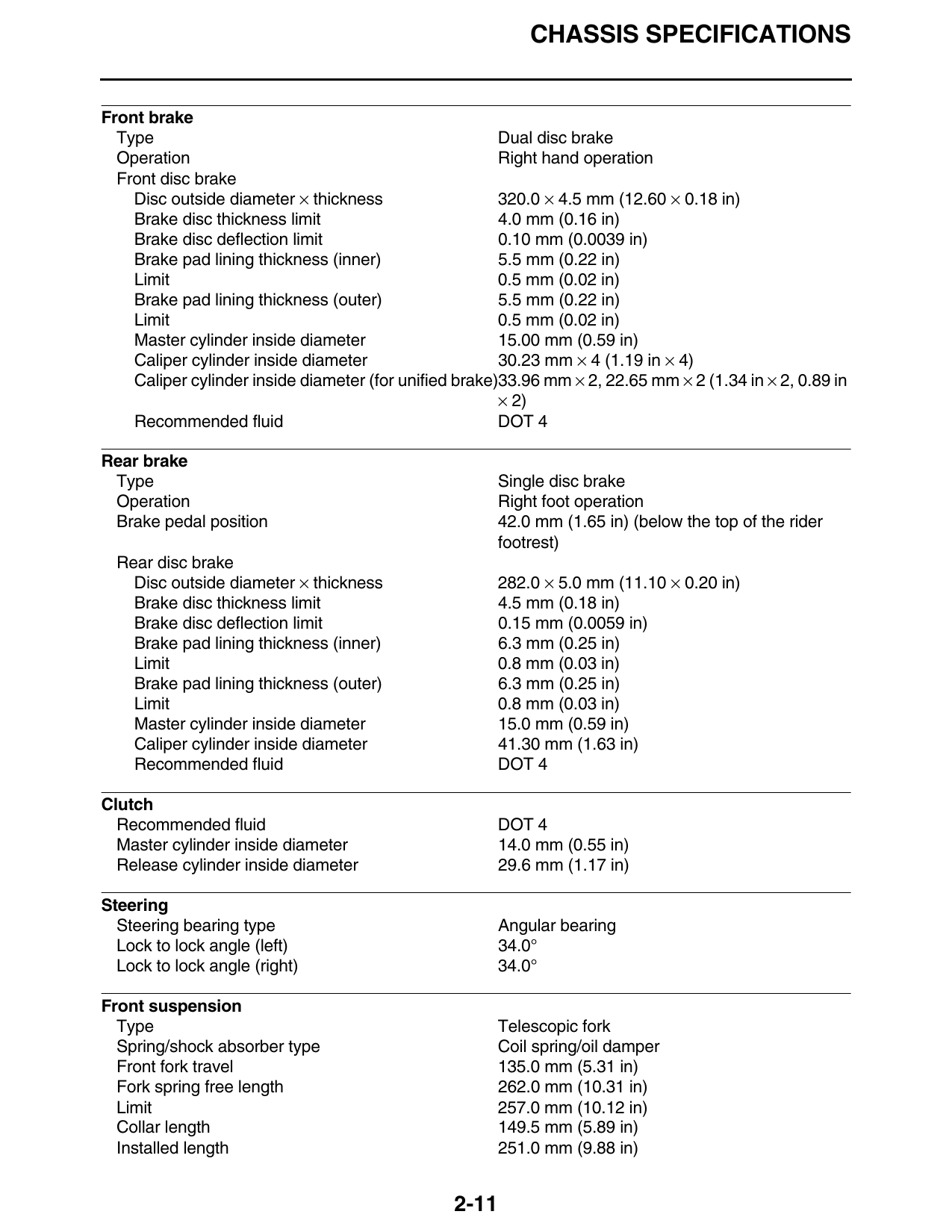

                                                            CHASSIS SPECIFICATIONS

Front brake
  Type                                                  Dual disc brake
  Operation                                             Right hand operation
  Front disc brake
    Disc outside diameter × thickness                   320.0 × 4.5 mm (12.60 × 0.18 in)
    Brake disc thickness limit                          4.0 mm (0.16 in)
    Brake disc deflection limit                         0.10 mm (0.0039 in)
    Brake pad lining thickness (inner)                  5.5 mm (0.22 in)
    Limit                                               0.5 mm (0.02 in)
    Brake pad lining thickness (outer)                  5.5 mm (0.22 in)
    Limit                                               0.5 mm (0.02 in)
    Master cylinder inside diameter                     15.00 mm (0.59 in)
    Caliper cylinder inside diameter                    30.23 mm × 4 (1.19 in × 4)
    Caliper cylinder inside diameter (for unified brake)33.96 mm × 2, 22.65 mm × 2 (1.34 in × 2, 0.89 in
                                                        × 2)
    Recommended fluid                                   DOT 4

Rear brake
 Type                                                   Single disc brake
 Operation                                              Right foot operation
 Brake pedal position                                   42.0 mm (1.65 in) (below the top of the rider
                                                        footrest)
  Rear disc brake
    Disc outside diameter × thickness                   282.0 × 5.0 mm (11.10 × 0.20 in)
    Brake disc thickness limit                          4.5 mm (0.18 in)
    Brake disc deflection limit                         0.15 mm (0.0059 in)
    Brake pad lining thickness (inner)                  6.3 mm (0.25 in)
    Limit                                               0.8 mm (0.03 in)
    Brake pad lining thickness (outer)                  6.3 mm (0.25 in)
    Limit                                               0.8 mm (0.03 in)
    Master cylinder inside diameter                     15.0 mm (0.59 in)
    Caliper cylinder inside diameter                    41.30 mm (1.63 in)
    Recommended fluid                                   DOT 4

Clutch
  Recommended fluid                                     DOT 4
  Master cylinder inside diameter                       14.0 mm (0.55 in)
  Release cylinder inside diameter                      29.6 mm (1.17 in)

Steering
  Steering bearing type                                 Angular bearing
  Lock to lock angle (left)                             34.0°
  Lock to lock angle (right)                            34.0°

Front suspension
  Type                                                  Telescopic fork
  Spring/shock absorber type                            Coil spring/oil damper
  Front fork travel                                     135.0 mm (5.31 in)
  Fork spring free length                               262.0 mm (10.31 in)
  Limit                                                 257.0 mm (10.12 in)
  Collar length                                         149.5 mm (5.89 in)
  Installed length                                      251.0 mm (9.88 in)

                                                 2-11

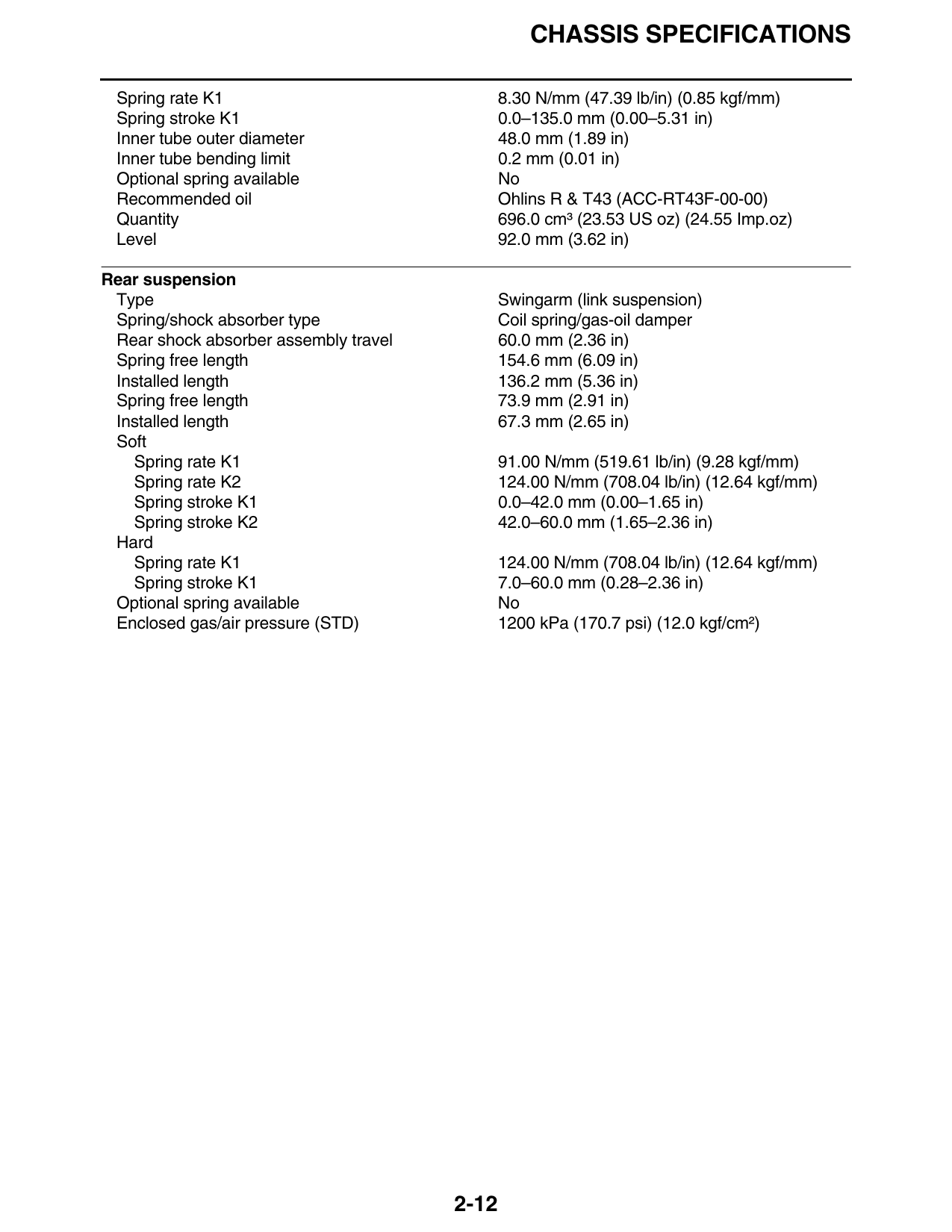

                                                  CHASSIS SPECIFICATIONS

 Spring rate K1                               8.30 N/mm (47.39 lb/in) (0.85 kgf/mm)
 Spring stroke K1                             0.0–135.0 mm (0.00–5.31 in)
 Inner tube outer diameter                    48.0 mm (1.89 in)
 Inner tube bending limit                     0.2 mm (0.01 in)
 Optional spring available                    No
 Recommended oil                              Ohlins R & T43 (ACC-RT43F-00-00)
 Quantity                                     696.0 cm³ (23.53 US oz) (24.55 Imp.oz)
 Level                                        92.0 mm (3.62 in)

Rear suspension
 Type                                         Swingarm (link suspension)
 Spring/shock absorber type                   Coil spring/gas-oil damper
 Rear shock absorber assembly travel          60.0 mm (2.36 in)
 Spring free length                           154.6 mm (6.09 in)
 Installed length                             136.2 mm (5.36 in)
 Spring free length                           73.9 mm (2.91 in)
 Installed length                             67.3 mm (2.65 in)
 Soft
   Spring rate K1                             91.00 N/mm (519.61 lb/in) (9.28 kgf/mm)
   Spring rate K2                             124.00 N/mm (708.04 lb/in) (12.64 kgf/mm)
   Spring stroke K1                           0.0–42.0 mm (0.00–1.65 in)
   Spring stroke K2                           42.0–60.0 mm (1.65–2.36 in)
 Hard
   Spring rate K1                             124.00 N/mm (708.04 lb/in) (12.64 kgf/mm)
   Spring stroke K1                           7.0–60.0 mm (0.28–2.36 in)
 Optional spring available                    No
 Enclosed gas/air pressure (STD)              1200 kPa (170.7 psi) (12.0 kgf/cm²)
