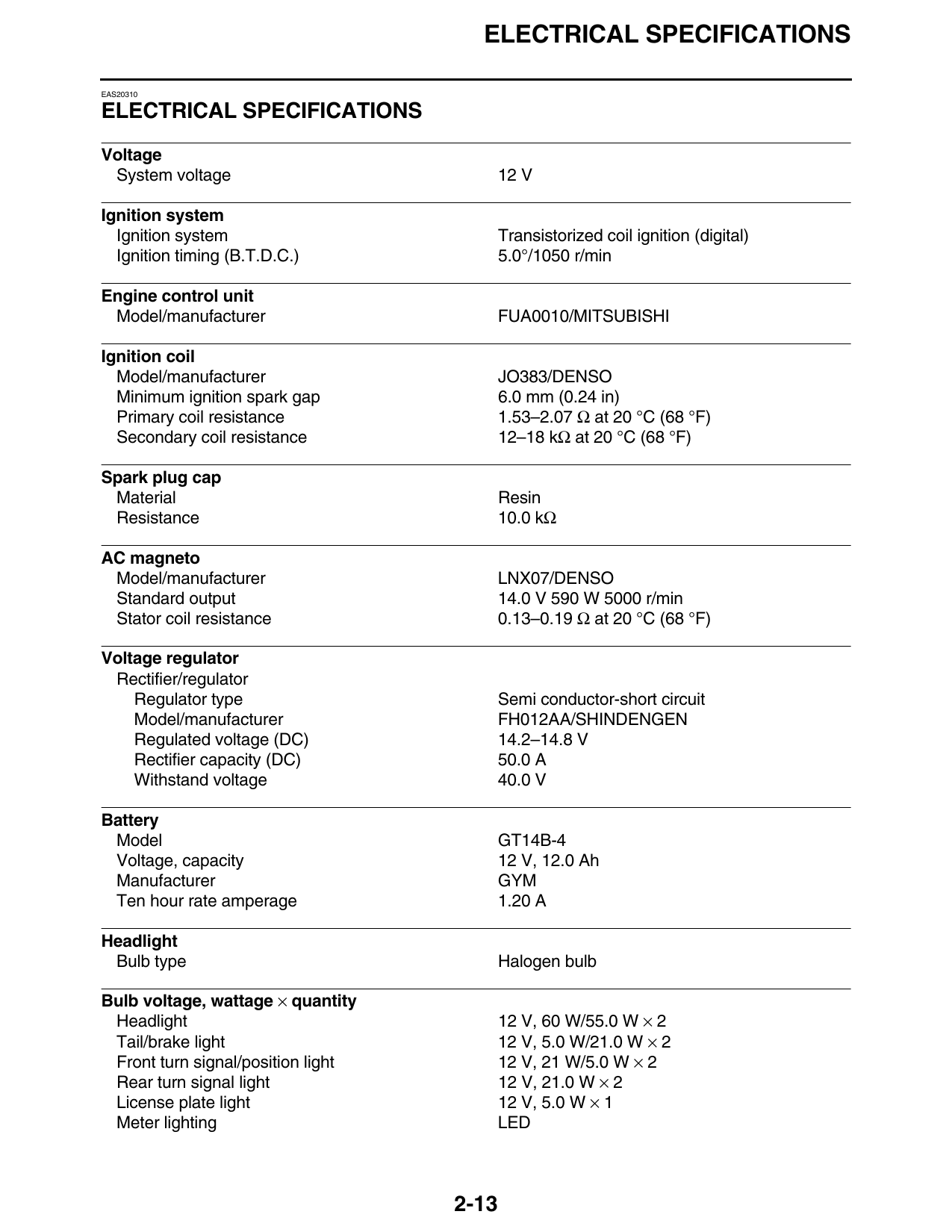

ELECTRICAL SPECIFICATIONS
EAS20310
ELECTRICAL SPECIFICATIONS
Voltage
System voltage 12 V
Ignition system
Ignition system Transistorized coil ignition (digital)
Ignition timing (B.T.D.C.) 5.0°/1050 r/min
Engine control unit
Model/manufacturer FUA0010/MITSUBISHI
Ignition coil
Model/manufacturer JO383/DENSO
Minimum ignition spark gap 6.0 mm (0.24 in)
Primary coil resistance 1.53–2.07 Ω at 20 °C (68 °F)
Secondary coil resistance 12–18 kΩ at 20 °C (68 °F)
Spark plug cap
Material Resin
Resistance 10.0 kΩ
AC magneto
Model/manufacturer LNX07/DENSO
Standard output 14.0 V 590 W 5000 r/min
Stator coil resistance 0.13–0.19 Ω at 20 °C (68 °F)
Voltage regulator
Rectifier/regulator
Regulator type Semi conductor-short circuit
Model/manufacturer FH012AA/SHINDENGEN
Regulated voltage (DC) 14.2–14.8 V
Rectifier capacity (DC) 50.0 A
Withstand voltage 40.0 V
Battery
Model GT14B-4
Voltage, capacity 12 V, 12.0 Ah
Manufacturer GYM
Ten hour rate amperage 1.20 A
Headlight
Bulb type Halogen bulb
Bulb voltage, wattage × quantity
Headlight 12 V, 60 W/55.0 W × 2
Tail/brake light 12 V, 5.0 W/21.0 W × 2
Front turn signal/position light 12 V, 21 W/5.0 W × 2
Rear turn signal light 12 V, 21.0 W × 2
License plate light 12 V, 5.0 W × 1
Meter lighting LED
2-13

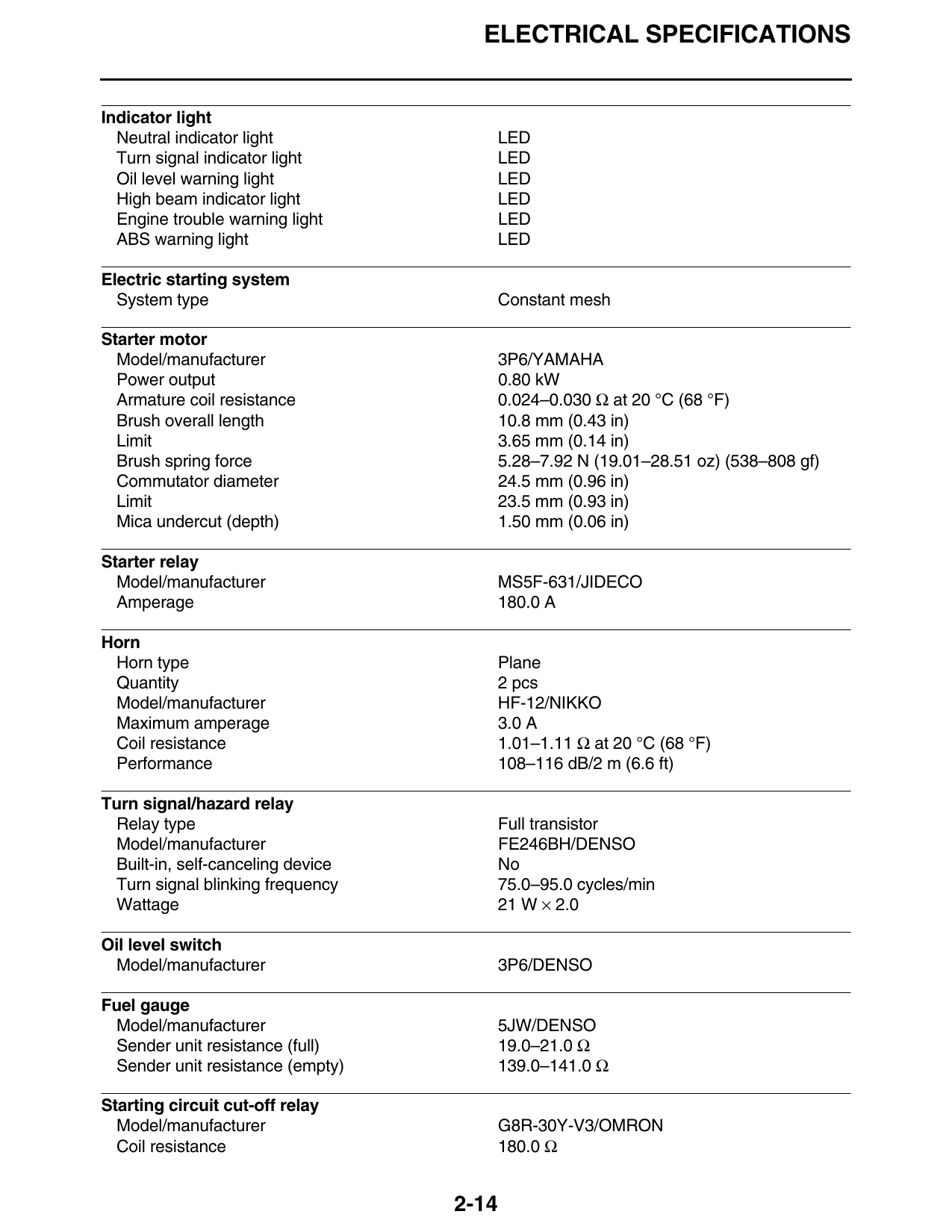

ELECTRICAL SPECIFICATIONS
Indicator light
Neutral indicator light LED
Turn signal indicator light LED
Oil level warning light LED
High beam indicator light LED
Engine trouble warning light LED
ABS warning light LED
Electric starting system
System type Constant mesh
Starter motor
Model/manufacturer 3P6/YAMAHA
Power output 0.80 kW
Armature coil resistance 0.024–0.030 Ω at 20 °C (68 °F)
Brush overall length 10.8 mm (0.43 in)
Limit 3.65 mm (0.14 in)
Brush spring force 5.28–7.92 N (19.01–28.51 oz) (538–808 gf)
Commutator diameter 24.5 mm (0.96 in)
Limit 23.5 mm (0.93 in)
Mica undercut (depth) 1.50 mm (0.06 in)
Starter relay
Model/manufacturer MS5F-631/JIDECO
Amperage 180.0 A
Horn
Horn type Plane
Quantity 2 pcs
Model/manufacturer HF-12/NIKKO
Maximum amperage 3.0 A
Coil resistance 1.01–1.11 Ω at 20 °C (68 °F)
Performance 108–116 dB/2 m (6.6 ft)
Turn signal/hazard relay
Relay type Full transistor
Model/manufacturer FE246BH/DENSO
Built-in, self-canceling device No
Turn signal blinking frequency 75.0–95.0 cycles/min
Wattage 21 W × 2.0
Oil level switch
Model/manufacturer 3P6/DENSO
Fuel gauge
Model/manufacturer 5JW/DENSO
Sender unit resistance (full) 19.0–21.0 Ω
Sender unit resistance (empty) 139.0–141.0 Ω
Starting circuit cut-off relay
Model/manufacturer G8R-30Y-V3/OMRON
Coil resistance 180.0 Ω
2-14

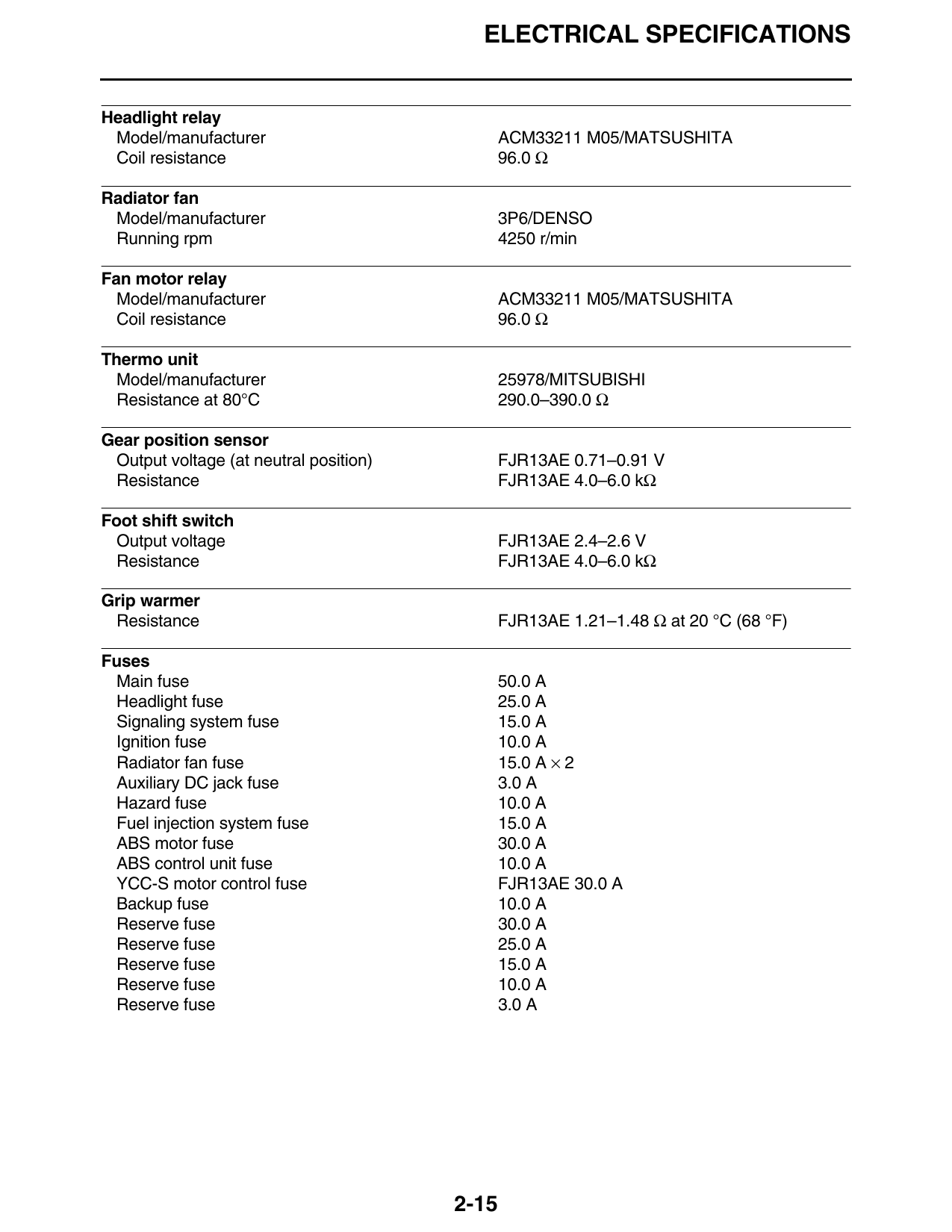

ELECTRICAL SPECIFICATIONS
Headlight relay
Model/manufacturer ACM33211 M05/MATSUSHITA
Coil resistance 96.0 Ω
Radiator fan
Model/manufacturer 3P6/DENSO
Running rpm 4250 r/min
Fan motor relay
Model/manufacturer ACM33211 M05/MATSUSHITA
Coil resistance 96.0 Ω
Thermo unit
Model/manufacturer 25978/MITSUBISHI
Resistance at 80°C 290.0–390.0 Ω
Gear position sensor
Output voltage (at neutral position) FJR13AE 0.71–0.91 V
Resistance FJR13AE 4.0–6.0 kΩ
Foot shift switch
Output voltage FJR13AE 2.4–2.6 V
Resistance FJR13AE 4.0–6.0 kΩ
Grip warmer
Resistance FJR13AE 1.21–1.48 Ω at 20 °C (68 °F)
Fuses
Main fuse 50.0 A
Headlight fuse 25.0 A
Signaling system fuse 15.0 A
Ignition fuse 10.0 A
Radiator fan fuse 15.0 A × 2
Auxiliary DC jack fuse 3.0 A
Hazard fuse 10.0 A
Fuel injection system fuse 15.0 A
ABS motor fuse 30.0 A
ABS control unit fuse 10.0 A
YCC-S motor control fuse FJR13AE 30.0 A
Backup fuse 10.0 A
Reserve fuse 30.0 A
Reserve fuse 25.0 A
Reserve fuse 15.0 A
Reserve fuse 10.0 A
Reserve fuse 3.0 A
2-15
