COOLING SYSTEM DIAGRAMS

EAS20420

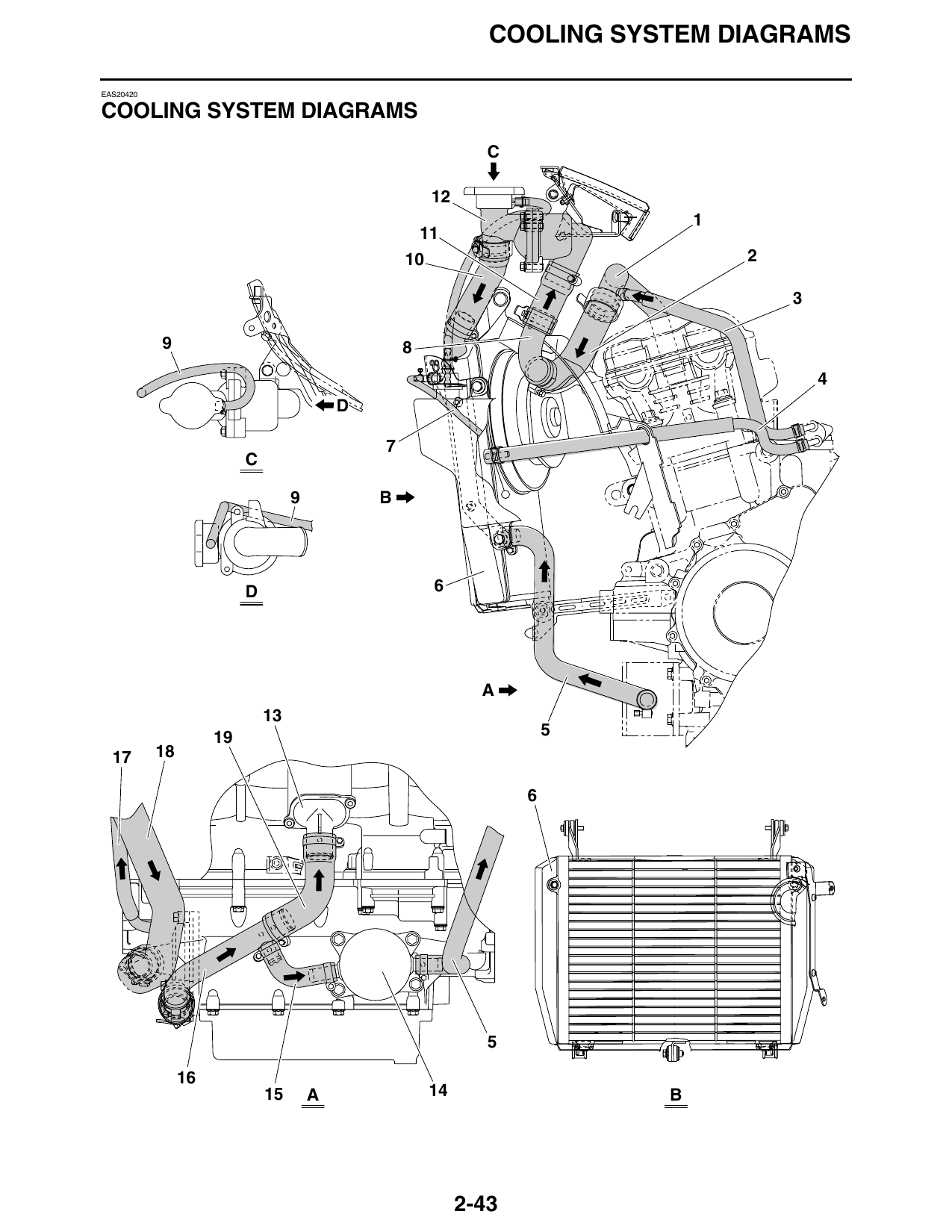

COOLING SYSTEM DIAGRAMS
                                                                C

                                                   10                               2

           9                                       8
                                           D

                          C

                                   9           B

                          D                             6

                                                               A
                     19                                                 5
  17       18

                              15       A                14                  B

                                                             2-43
                                        COOLING SYSTEM DIAGRAMS

1. Thermostat inlet pipe 1
2. Thermostat inlet hose 1
3. Plunger control unit hose 1
4. Plunger control unit hose 2
5. Oil cooler outlet hose
6. Radiator
7. Coolant reservoir breather hose
8. Thermostat inlet pipe 2
9. Coolant reservoir hose
10. Radiator inlet hose
11. Thermostat inlet hose 2
12. Thermostat assembly
13. Water jacket joint
14. Oil cooler
15. Oil cooler inlet hose
16. Water pump outlet pipe
17. Water pump breather hose
18. Radiator outlet hose
19. Water jacket joint inlet hose

                                     2-44
                         COOLING SYSTEM DIAGRAMS

10                       8                                   5

          A   9

                                         A

                      2-45

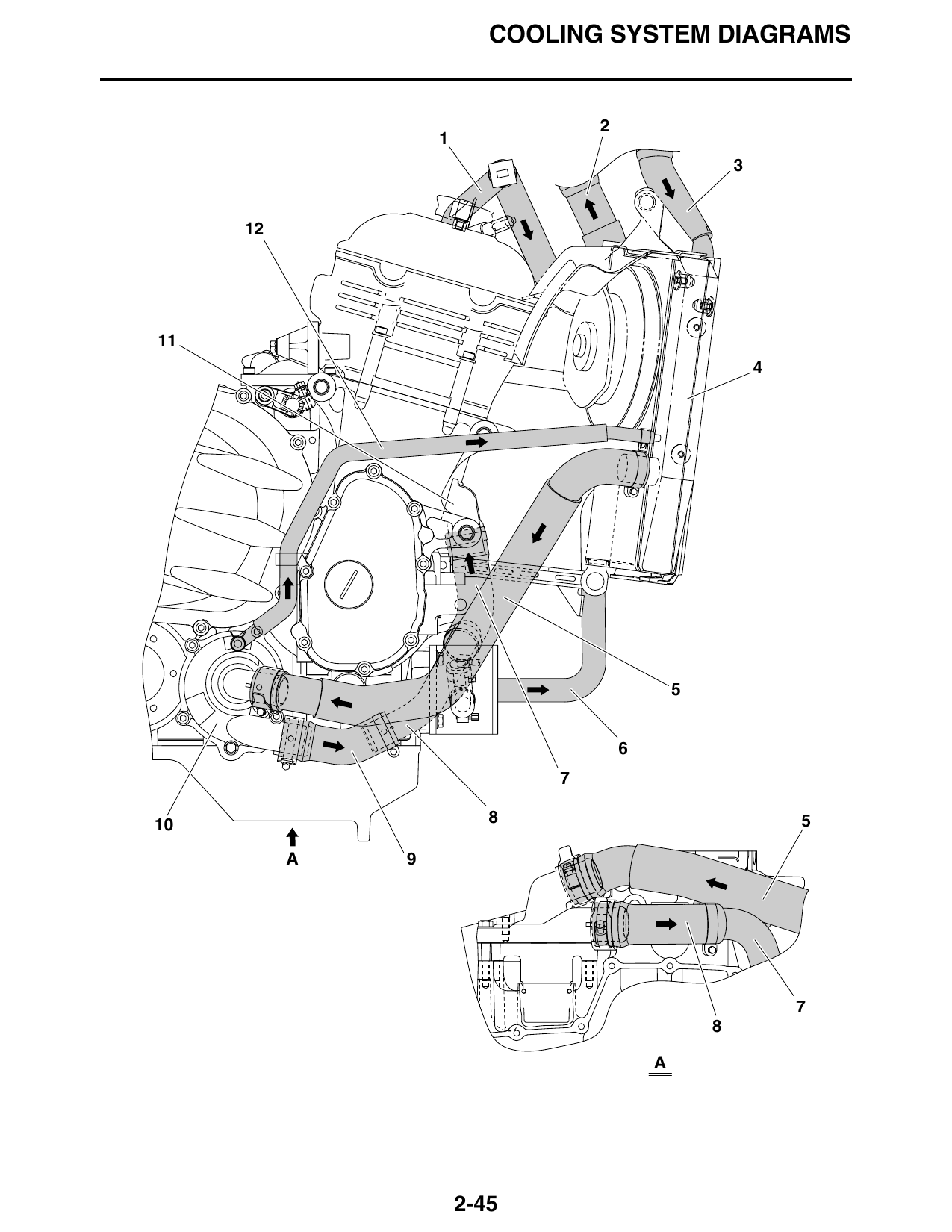

                                      COOLING SYSTEM DIAGRAMS

1. Thermostat inlet pipe 1
2. Thermostat inlet hose 2
3. Radiator inlet hose
4. Radiator
5. Radiator outlet hose
6. Oil cooler outlet hose
7. Water jacket joint inlet hose
8. Water pump outlet pipe
9. Water pump outlet hose
10. Water pump
11. Water jacket joint
12. Water pump breather hose

                                   2-46
