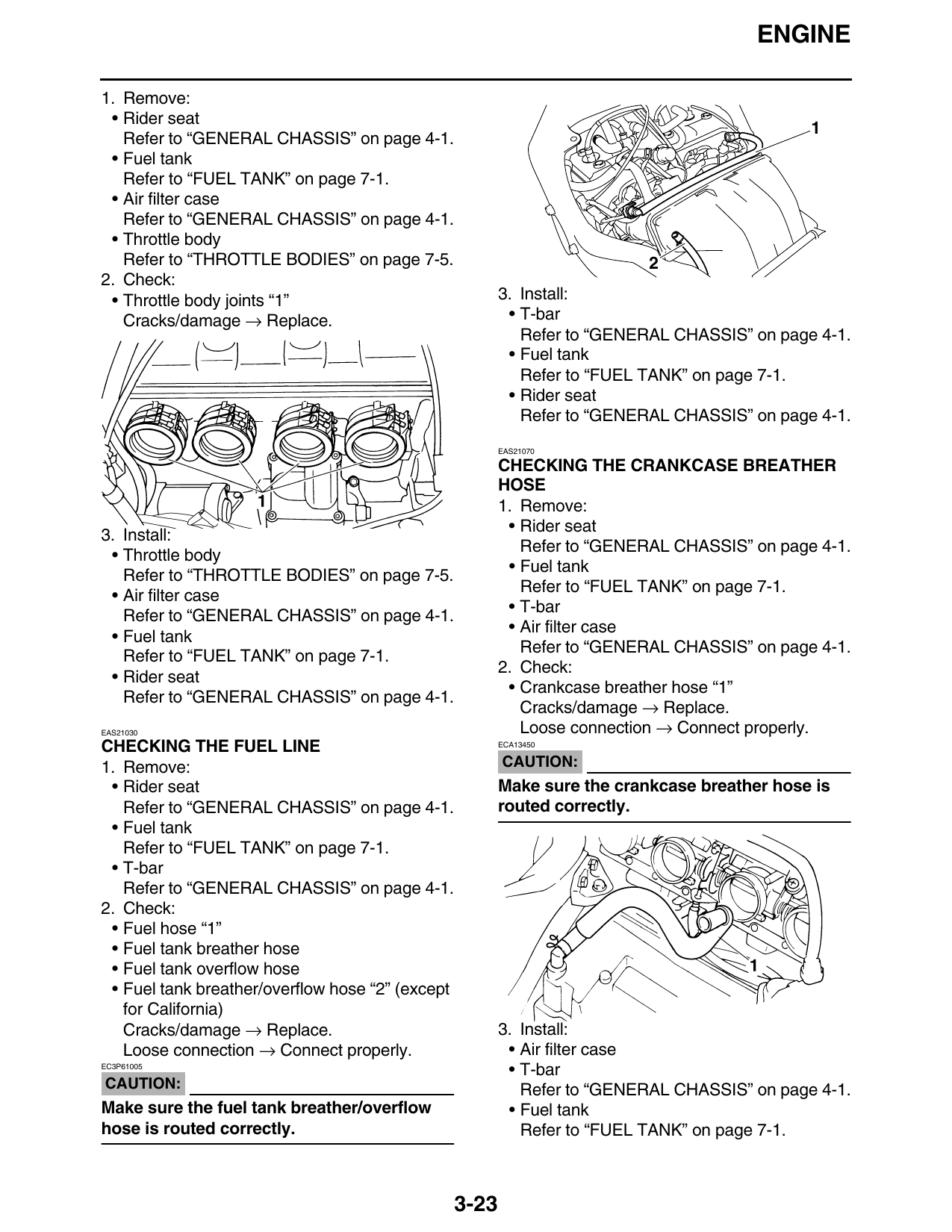

Checking The Fuel Line

ENGINE

1. Remove:
 • Rider seat
   Refer to “GENERAL CHASSIS” on page 4-1.
 • Fuel tank
   Refer to “FUEL TANK” on page 7-1.
 • Air filter case
   Refer to “GENERAL CHASSIS” on page 4-1.
 • Throttle body
   Refer to “THROTTLE BODIES” on page 7-5.                                 2
2. Check:
 • Throttle body joints “1”                              3. Install:
   Cracks/damage → Replace.                               • T-bar
                                                            Refer to “GENERAL CHASSIS” on page 4-1.
                                                          • Fuel tank
                                                            Refer to “FUEL TANK” on page 7-1.
                                                          • Rider seat
                                                            Refer to “GENERAL CHASSIS” on page 4-1.
                                                         EAS21070

                                                         CHECKING THE CRANKCASE BREATHER
                                                         HOSE
                                                         1. Remove:
                                                          • Rider seat
3. Install:
                                                            Refer to “GENERAL CHASSIS” on page 4-1.
 • Throttle body
                                                          • Fuel tank
   Refer to “THROTTLE BODIES” on page 7-5.
                                                            Refer to “FUEL TANK” on page 7-1.
 • Air filter case
                                                          • T-bar
   Refer to “GENERAL CHASSIS” on page 4-1.
                                                          • Air filter case
 • Fuel tank
                                                            Refer to “GENERAL CHASSIS” on page 4-1.
   Refer to “FUEL TANK” on page 7-1.
                                                         2. Check:
 • Rider seat
                                                          • Crankcase breather hose “1”
   Refer to “GENERAL CHASSIS” on page 4-1.
                                                            Cracks/damage → Replace.
EAS21030                                                    Loose connection → Connect properly.
CHECKING THE FUEL LINE                                   ECA13450

1. Remove:                                               CAUTION:
 • Rider seat                                            Make sure the crankcase breather hose is
   Refer to “GENERAL CHASSIS” on page 4-1.               routed correctly.
 • Fuel tank
   Refer to “FUEL TANK” on page 7-1.
 • T-bar
   Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
 • Fuel hose “1”
 • Fuel tank breather hose
 • Fuel tank overflow hose
 • Fuel tank breather/overflow hose “2” (except
   for California)
   Cracks/damage → Replace.                              3. Install:
   Loose connection → Connect properly.                   • Air filter case
EC3P61005
                                                          • T-bar
CAUTION:                                                    Refer to “GENERAL CHASSIS” on page 4-1.
Make sure the fuel tank breather/overflow                 • Fuel tank
hose is routed correctly.                                   Refer to “FUEL TANK” on page 7-1.

                                                  3-23
