ENGINE

EAS20920
                                                              • Shift actuator

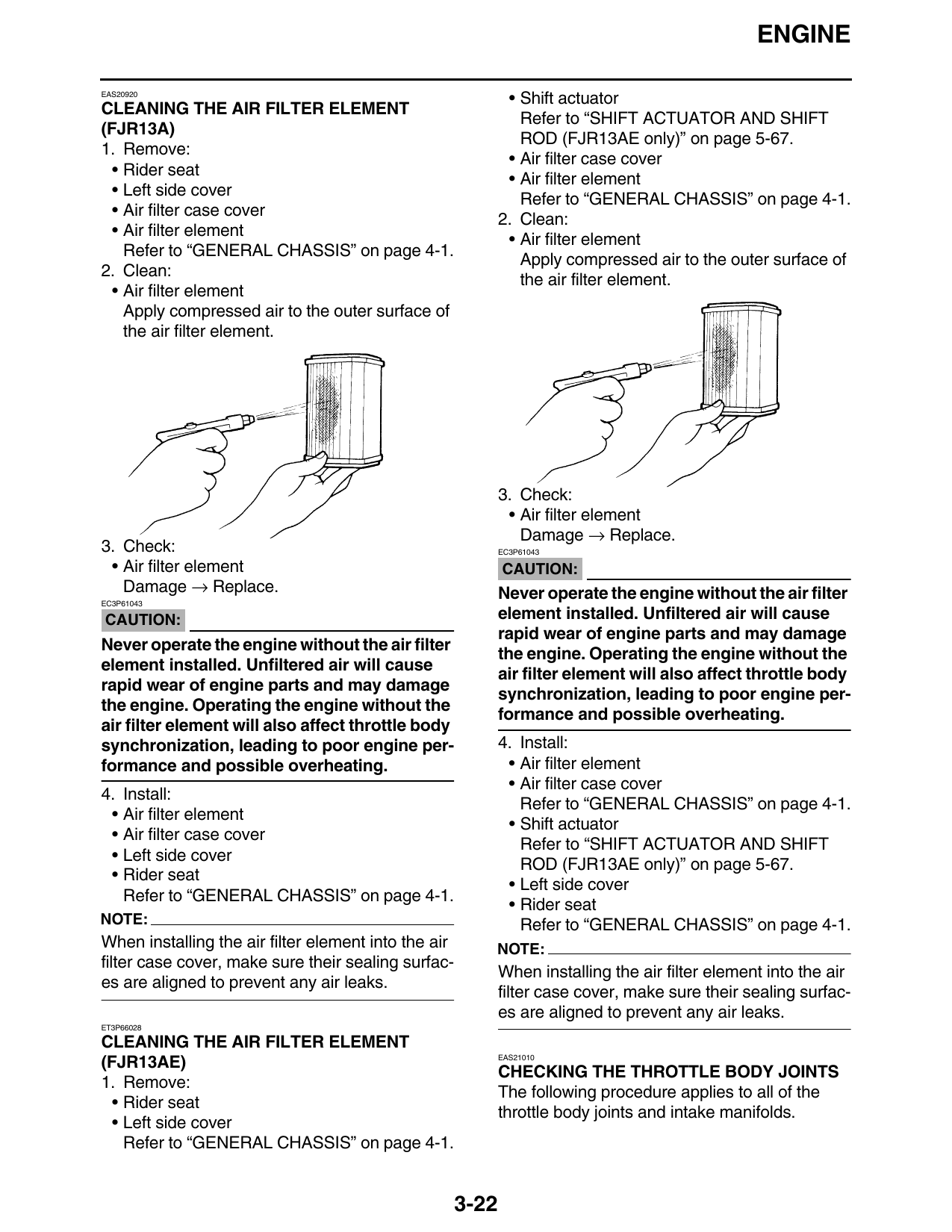

CLEANING THE AIR FILTER ELEMENT
                                                                Refer to “SHIFT ACTUATOR AND SHIFT
(FJR13A)
                                                                ROD (FJR13AE only)” on page 5-67.
1. Remove:
                                                              • Air filter case cover
  • Rider seat
                                                              • Air filter element
  • Left side cover
                                                                Refer to “GENERAL CHASSIS” on page 4-1.
  • Air filter case cover
                                                             2. Clean:
  • Air filter element
                                                              • Air filter element
    Refer to “GENERAL CHASSIS” on page 4-1.
                                                                Apply compressed air to the outer surface of
2. Clean:
                                                                the air filter element.
  • Air filter element
    Apply compressed air to the outer surface of
    the air filter element.

                                                             3. Check:
                                                              • Air filter element
                                                                Damage → Replace.
3. Check:                                                    EC3P61043

 • Air filter element                                        CAUTION:
   Damage → Replace.                                         Never operate the engine without the air filter
EC3P61043

CAUTION:                                                     element installed. Unfiltered air will cause
                                                             rapid wear of engine parts and may damage
Never operate the engine without the air filter
                                                             the engine. Operating the engine without the
element installed. Unfiltered air will cause
                                                             air filter element will also affect throttle body
rapid wear of engine parts and may damage
                                                             synchronization, leading to poor engine per-
the engine. Operating the engine without the
                                                             formance and possible overheating.
air filter element will also affect throttle body
synchronization, leading to poor engine per-                 4. Install:
formance and possible overheating.                            • Air filter element
                                                              • Air filter case cover
4. Install:
                                                                Refer to “GENERAL CHASSIS” on page 4-1.
 • Air filter element
                                                              • Shift actuator
 • Air filter case cover
                                                                Refer to “SHIFT ACTUATOR AND SHIFT
 • Left side cover
                                                                ROD (FJR13AE only)” on page 5-67.
 • Rider seat
                                                              • Left side cover
   Refer to “GENERAL CHASSIS” on page 4-1.
                                                              • Rider seat
NOTE:                                                           Refer to “GENERAL CHASSIS” on page 4-1.
When installing the air filter element into the air      NOTE:
filter case cover, make sure their sealing surfac-
                                                             When installing the air filter element into the air
es are aligned to prevent any air leaks.
                                                             filter case cover, make sure their sealing surfac-
                                                             es are aligned to prevent any air leaks.
ET3P66028

CLEANING THE AIR FILTER ELEMENT
                                                             EAS21010
(FJR13AE)
                                                             CHECKING THE THROTTLE BODY JOINTS
1. Remove:
                                                             The following procedure applies to all of the
  • Rider seat
                                                             throttle body joints and intake manifolds.
  • Left side cover
    Refer to “GENERAL CHASSIS” on page 4-1.

                                                      3-22
