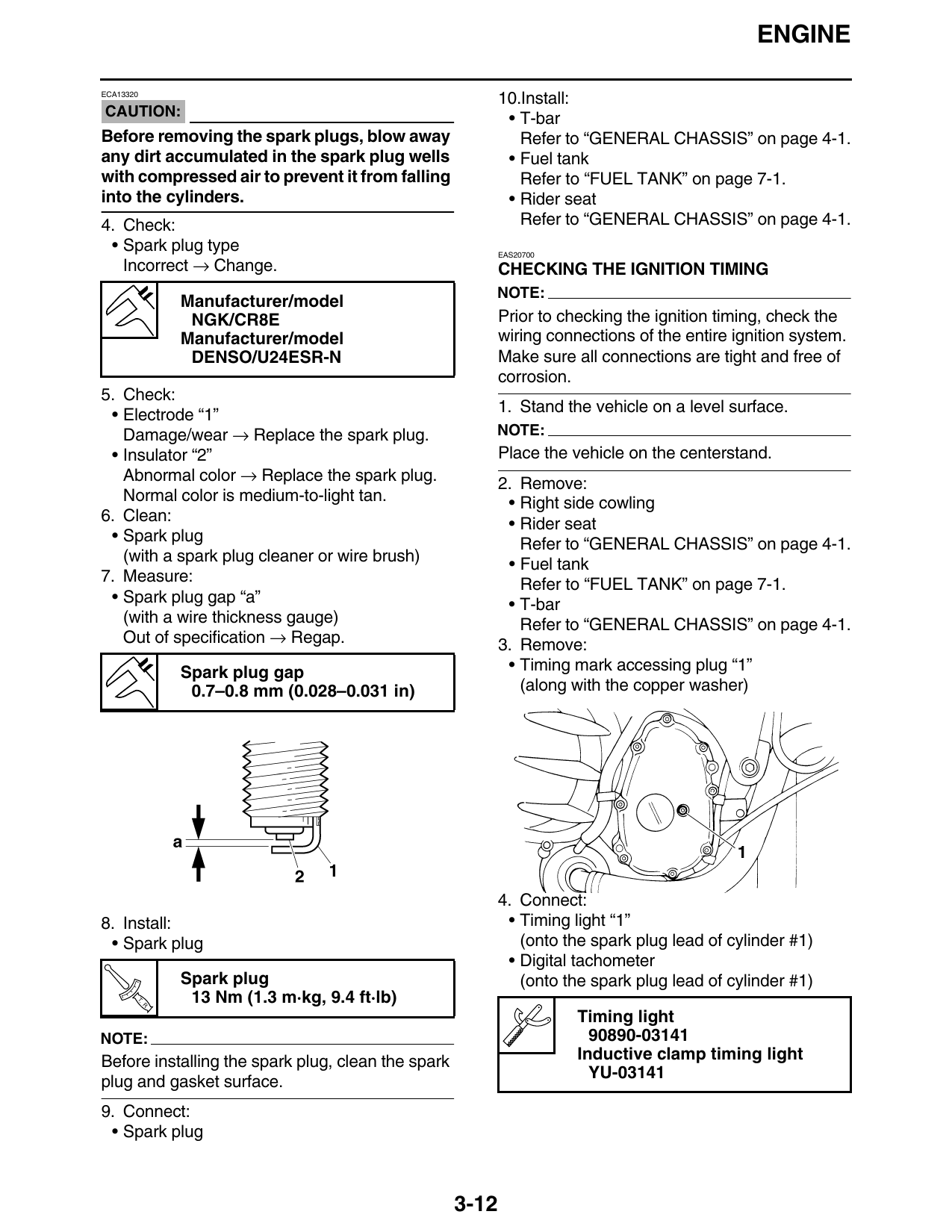

Checking The Ignition Timing

ENGINE

ECA13320
                                                           10.Install:
CAUTION:                                                    • T-bar
Before removing the spark plugs, blow away                    Refer to “GENERAL CHASSIS” on page 4-1.
any dirt accumulated in the spark plug wells                • Fuel tank
with compressed air to prevent it from falling                Refer to “FUEL TANK” on page 7-1.
into the cylinders.                                         • Rider seat
4. Check:                                                     Refer to “GENERAL CHASSIS” on page 4-1.
 • Spark plug type                                         EAS20700
   Incorrect → Change.                                     CHECKING THE IGNITION TIMING
                                                       NOTE:
                Manufacturer/model
                 NGK/CR8E                                  Prior to checking the ignition timing, check the
                Manufacturer/model                         wiring connections of the entire ignition system.
                 DENSO/U24ESR-N                            Make sure all connections are tight and free of
                                                           corrosion.
5. Check:
 • Electrode “1”                                           1. Stand the vehicle on a level surface.
   Damage/wear → Replace the spark plug.               NOTE:
 • Insulator “2”                                           Place the vehicle on the centerstand.
   Abnormal color → Replace the spark plug.                2. Remove:
   Normal color is medium-to-light tan.                     • Right side cowling
6. Clean:                                                   • Rider seat
 • Spark plug                                                 Refer to “GENERAL CHASSIS” on page 4-1.
   (with a spark plug cleaner or wire brush)                • Fuel tank
7. Measure:                                                   Refer to “FUEL TANK” on page 7-1.
 • Spark plug gap “a”                                       • T-bar
   (with a wire thickness gauge)                              Refer to “GENERAL CHASSIS” on page 4-1.
   Out of specification → Regap.                           3. Remove:
                Spark plug gap                              • Timing mark accessing plug “1”
                 0.7–0.8 mm (0.028–0.031 in)                  (along with the copper washer)

                                                           4. Connect:
8. Install:                                                 • Timing light “1”
 • Spark plug                                                 (onto the spark plug lead of cylinder #1)
                                                            • Digital tachometer
                Spark plug                                    (onto the spark plug lead of cylinder #1)
       T.
           R.
                 13 Nm (1.3 m·kg, 9.4 ft·lb)
                                                                      Timing light
NOTE:                                                                   90890-03141
Before installing the spark plug, clean the spark                     Inductive clamp timing light
                                                                        YU-03141
plug and gasket surface.
9. Connect:
 • Spark plug

                                                    3-12
