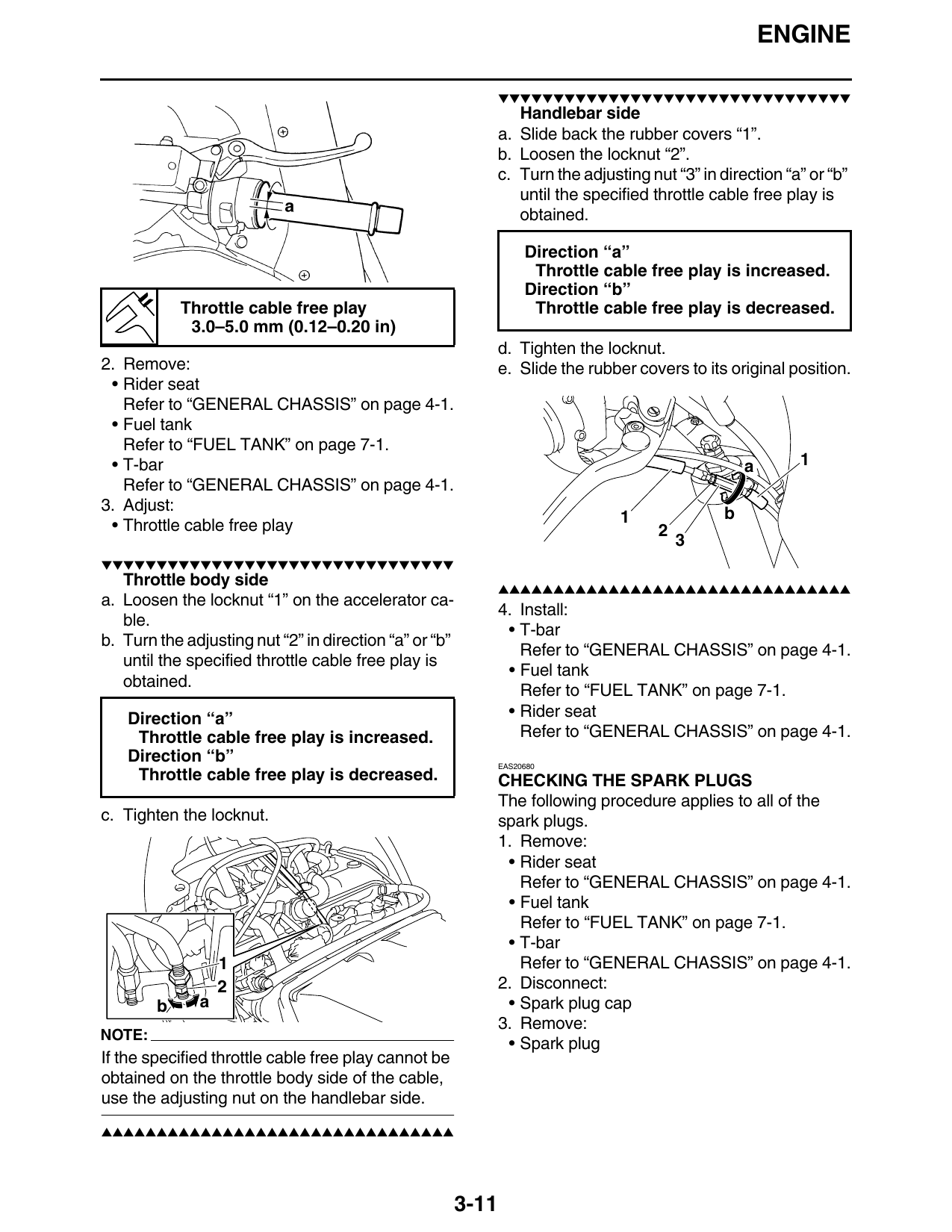

ENGINE

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Handlebar side
a. Slide back the rubber covers “1”.
b. Loosen the locknut “2”.
c. Turn the adjusting nut “3” in direction “a” or “b”
until the specified throttle cable free play is
obtained.

Direction “a”
Throttle cable free play is increased.
Direction “b”
Throttle cable free play Throttle cable free play is decreased.
3.0–5.0 mm (0.12–0.20 in)
d. Tighten the locknut.
2. Remove: e. Slide the rubber covers to its original position.
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• T-bar a 1
Refer to “GENERAL CHASSIS” on page 4-1.
3. Adjust: b
• Throttle cable free play 1
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Throttle body side ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
a. Loosen the locknut “1” on the accelerator ca-
4. Install:
ble.
• T-bar
b. Turn the adjusting nut “2” in direction “a” or “b”
Refer to “GENERAL CHASSIS” on page 4-1.
until the specified throttle cable free play is
• Fuel tank
obtained.
Refer to “FUEL TANK” on page 7-1.
Direction “a” • Rider seat
Throttle cable free play is increased. Refer to “GENERAL CHASSIS” on page 4-1.
Direction “b” EAS20680
Throttle cable free play is decreased. CHECKING THE SPARK PLUGS
The following procedure applies to all of the
c. Tighten the locknut. spark plugs.
1. Remove:
• Rider seat
Refer to “GENERAL CHASSIS” on page 4-1.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• T-bar
1 Refer to “GENERAL CHASSIS” on page 4-1.
2 2. Disconnect:
b a • Spark plug cap
3. Remove:
NOTE:
• Spark plug
If the specified throttle cable free play cannot be
obtained on the throttle body side of the cable,
use the adjusting nut on the handlebar side.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

3-11
