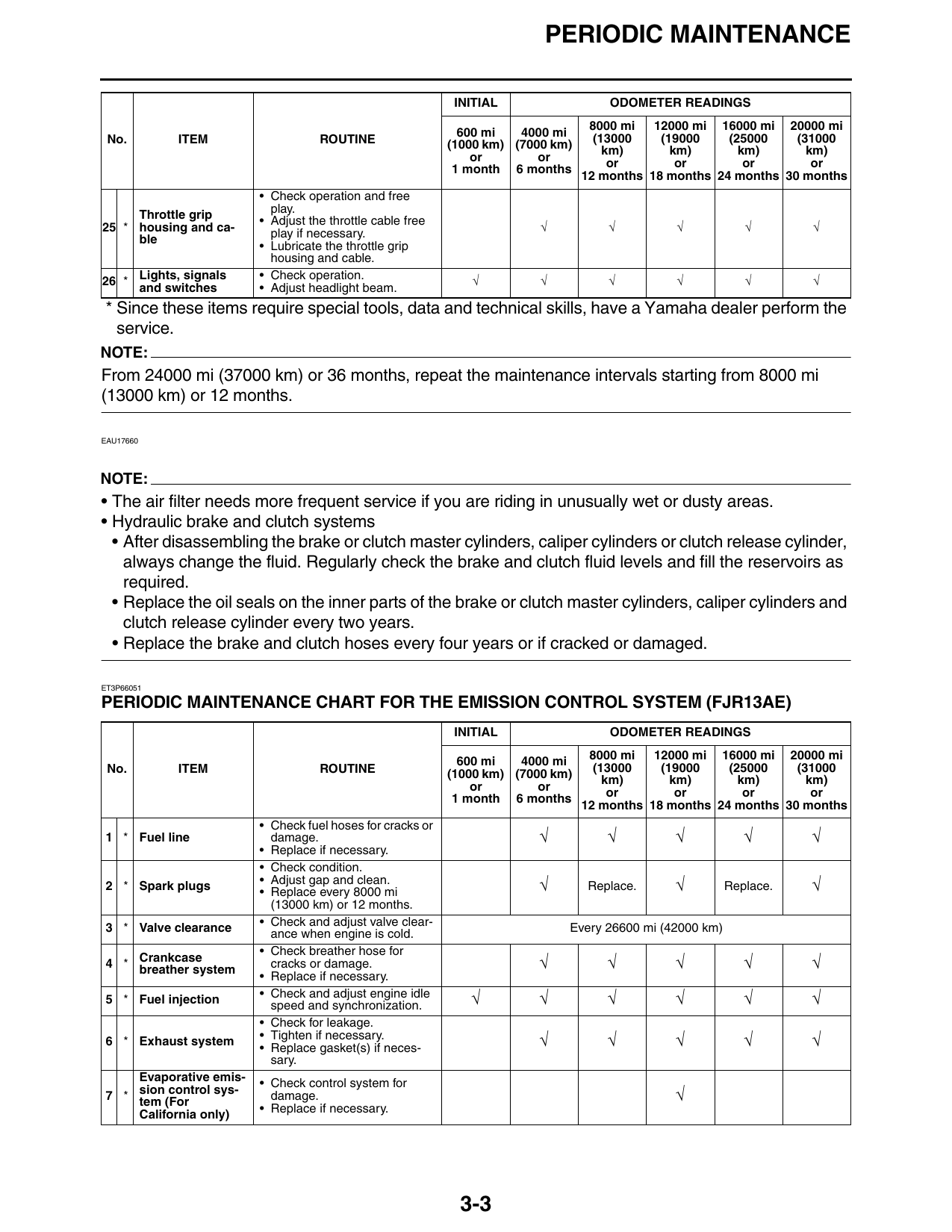

PERIODIC MAINTENANCE

                                                                 INITIAL                  ODOMETER READINGS
                                                                                     8000 mi   12000 mi 16000 mi 20000 mi
                                                                  600 mi   4000 mi
 No.             ITEM                   ROUTINE                 (1000 km) (7000 km)   (13000    (19000    (25000    (31000
                                                                                        km)       km)       km)       km)
                                                                    or        or         or        or        or        or
                                                                 1 month 6 months
                                                                                    12 months 18 months 24 months 30 months
                             • Check operation and free
                               play.
     Throttle grip           • Adjust the throttle cable free
25 * housing and ca-                                                          √           √         √            √       √
     ble                       play if necessary.
                             • Lubricate the throttle grip
                               housing and cable.
26 * Lights, signals         • Check operation.                    √          √           √         √            √       √
     and switches            • Adjust headlight beam.
 * Since these items require special tools, data and technical skills, have a Yamaha dealer perform the
   service.
NOTE:
From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi
(13000 km) or 12 months.

EAU17660

NOTE:
• The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
• Hydraulic brake and clutch systems
  • After disassembling the brake or clutch master cylinders, caliper cylinders or clutch release cylinder,
    always change the fluid. Regularly check the brake and clutch fluid levels and fill the reservoirs as
    required.
  • Replace the oil seals on the inner parts of the brake or clutch master cylinders, caliper cylinders and
    clutch release cylinder every two years.
  • Replace the brake and clutch hoses every four years or if cracked or damaged.

ET3P66051

PERIODIC MAINTENANCE CHART FOR THE EMISSION CONTROL SYSTEM (FJR13AE)
                                                                 INITIAL                  ODOMETER READINGS

                                                                  600 mi   4000 mi     8000 mi   12000 mi 16000 mi 20000 mi
 No.             ITEM                   ROUTINE                                         (13000    (19000    (25000    (31000
                                                                (1000 km) (7000 km)       km)       km)       km)       km)
                                                                    or        or
                                                                 1 month 6 months          or        or        or        or
                                                                                      12 months 18 months 24 months 30 months
                             • Check fuel hoses for cracks or
 1 * Fuel line                 damage.                                        √          √         √             √       √
                             • Replace if necessary.
                             • Check condition.
 2 * Spark plugs
                             • Adjust gap and clean.
                             • Replace every 8000 mi                          √       Replace.     √          Replace.   √
                               (13000 km) or 12 months.
                             • Check and adjust valve clear-
 3 * Valve clearance           ance when engine is cold.                          Every 26600 mi (42000 km)
                             • Check breather hose for
 4 *
           Crankcase
           breather system
                               cracks or damage.                              √          √         √             √       √
                             • Replace if necessary.
 5 * Fuel injection          • Check and adjust engine idle
                               speed and synchronization.          √          √          √         √             √       √
                             • Check for leakage.
 6 * Exhaust system          • Tighten if necessary.
                             • Replace gasket(s) if neces-                    √          √         √             √       √
                               sary.
     Evaporative emis-       • Check control system for
     sion control sys-
 7 * tem (For                  damage.                                                             √
                             • Replace if necessary.
     California only)

                                                                 3-3
