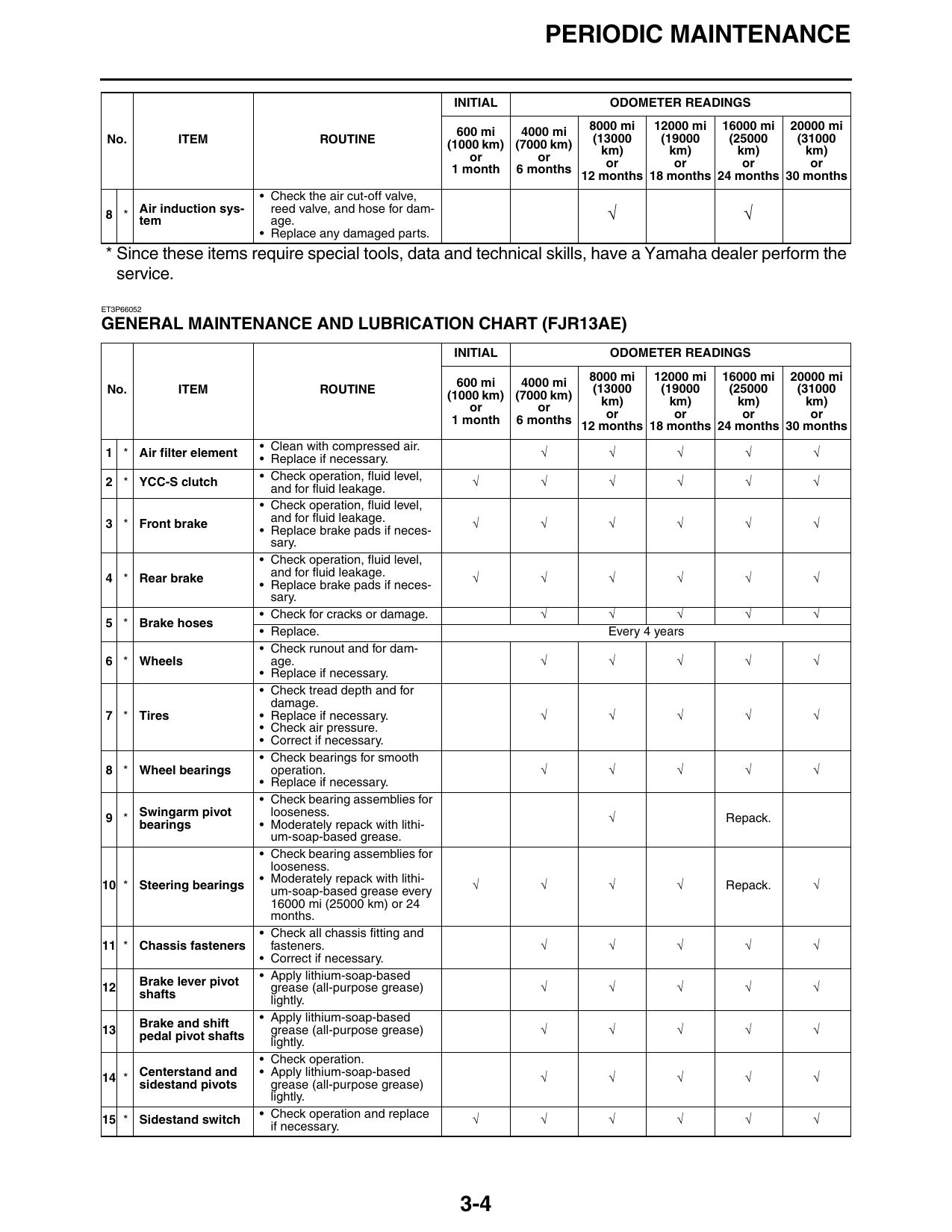

PERIODIC MAINTENANCE
INITIAL ODOMETER READINGS
8000 mi 12000 mi 16000 mi 20000 mi
600 mi 4000 mi
No. ITEM ROUTINE (1000 km) (7000 km) (13000 (19000 (25000 (31000
km) km) km) km)
or or or or or or
1 month 6 months
12 months 18 months 24 months 30 months
• Check the air cut-off valve,
Air induction sys-
8 * tem
reed valve, and hose for dam-
age. √ √
• Replace any damaged parts.
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the
service.
ET3P66052
GENERAL MAINTENANCE AND LUBRICATION CHART (FJR13AE)
INITIAL ODOMETER READINGS
8000 mi 12000 mi 16000 mi 20000 mi
600 mi 4000 mi (13000 (19000 (25000 (31000
No. ITEM ROUTINE (1000 km) (7000 km)
or or km) km) km) km)
or or or or
1 month 6 months 12 months 18 months 24 months 30 months
• Clean with compressed air.
1 * Air filter element • Replace if necessary. √ √ √ √ √
2 * YCC-S clutch • Check operation, fluid level, √ √ √ √ √ √
and for fluid leakage.
• Check operation, fluid level,
3 * Front brake and for fluid leakage. √ √ √ √ √ √
• Replace brake pads if neces-
sary.
• Check operation, fluid level,
and for fluid leakage.
4 * Rear brake • Replace brake pads if neces- √ √ √ √ √ √
sary.
• Check for cracks or damage. √ √ √ √ √
5 * Brake hoses
• Replace. Every 4 years
• Check runout and for dam-
6 * Wheels age. √ √ √ √ √
• Replace if necessary.
• Check tread depth and for
damage.
7 * Tires • Replace if necessary. √ √ √ √ √
• Check air pressure.
• Correct if necessary.
• Check bearings for smooth
8 * Wheel bearings operation. √ √ √ √ √
• Replace if necessary.
• Check bearing assemblies for
9 * Swingarm pivot looseness. √ Repack.
bearings • Moderately repack with lithi-
um-soap-based grease.
• Check bearing assemblies for
looseness.
• Moderately repack with lithi-
10 * Steering bearings √ √ √ √ Repack. √
um-soap-based grease every
16000 mi (25000 km) or 24
months.
• Check all chassis fitting and
11 * Chassis fasteners fasteners. √ √ √ √ √
• Correct if necessary.
Brake lever pivot • Apply lithium-soap-based
12 grease (all-purpose grease) √ √ √ √ √
shafts lightly.
Brake and shift • Apply lithium-soap-based
13 grease (all-purpose grease) √ √ √ √ √
pedal pivot shafts
lightly.
• Check operation.
Centerstand and • Apply lithium-soap-based
14 * √ √ √ √ √
sidestand pivots grease (all-purpose grease)
lightly.
• Check operation and replace
15 * Sidestand switch √ √ √ √ √ √
if necessary.
3-4

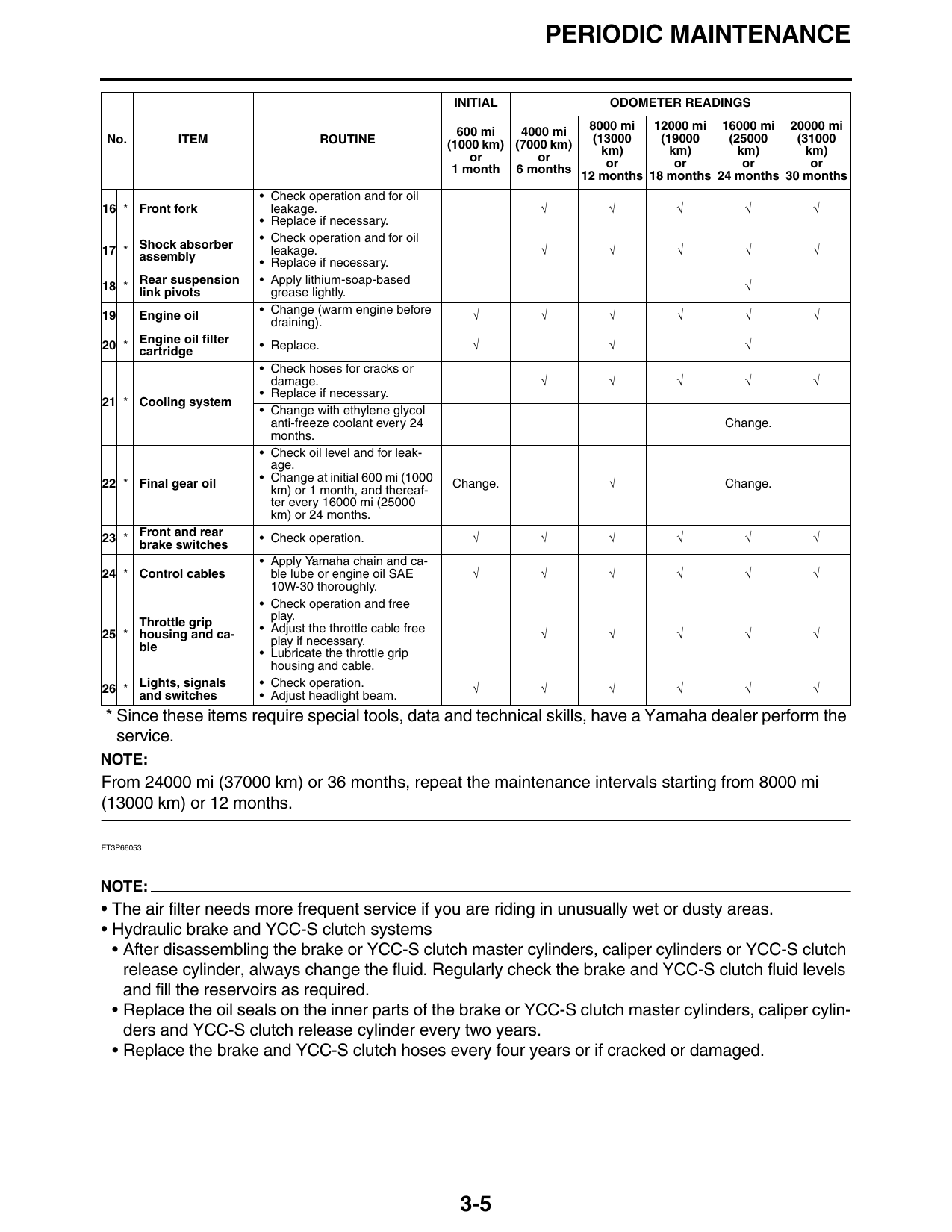

PERIODIC MAINTENANCE
INITIAL ODOMETER READINGS
8000 mi 12000 mi 16000 mi 20000 mi
600 mi 4000 mi
No. ITEM ROUTINE (1000 km) (7000 km) (13000 (19000 (25000 (31000
km) km) km) km)
or or or or or or
1 month 6 months
12 months 18 months 24 months 30 months
• Check operation and for oil
16 * Front fork leakage. √ √ √ √ √
• Replace if necessary.
Shock absorber • Check operation and for oil
17 * leakage. √ √ √ √ √
assembly • Replace if necessary.
18 * Rear suspension • Apply lithium-soap-based √
link pivots grease lightly.
• Change (warm engine before
19 Engine oil √ √ √ √ √ √
draining).
Engine oil filter
20 * cartridge • Replace. √ √ √
• Check hoses for cracks or
damage. √ √ √ √ √
• Replace if necessary.
21 * Cooling system
• Change with ethylene glycol
anti-freeze coolant every 24 Change.
months.
• Check oil level and for leak-
age.
• Change at initial 600 mi (1000
22 * Final gear oil Change. √ Change.
km) or 1 month, and thereaf-
ter every 16000 mi (25000
km) or 24 months.
23 * Front and rear • Check operation. √ √ √ √ √ √
brake switches
• Apply Yamaha chain and ca-
24 * Control cables ble lube or engine oil SAE √ √ √ √ √ √
10W-30 thoroughly.
• Check operation and free
Throttle grip play.
• Adjust the throttle cable free
25 * housing and ca- play if necessary. √ √ √ √ √
ble
• Lubricate the throttle grip
housing and cable.
Lights, signals • Check operation.
26 * √ √ √ √ √ √
and switches • Adjust headlight beam.
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the
service.
NOTE:
From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi
(13000 km) or 12 months.
ET3P66053
NOTE:
• The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
• Hydraulic brake and YCC-S clutch systems
• After disassembling the brake or YCC-S clutch master cylinders, caliper cylinders or YCC-S clutch
release cylinder, always change the fluid. Regularly check the brake and YCC-S clutch fluid levels
and fill the reservoirs as required.
• Replace the oil seals on the inner parts of the brake or YCC-S clutch master cylinders, caliper cylin-
ders and YCC-S clutch release cylinder every two years.
• Replace the brake and YCC-S clutch hoses every four years or if cracked or damaged.
3-5
