Installing The Rear Wheel (Rear Brake Disc)

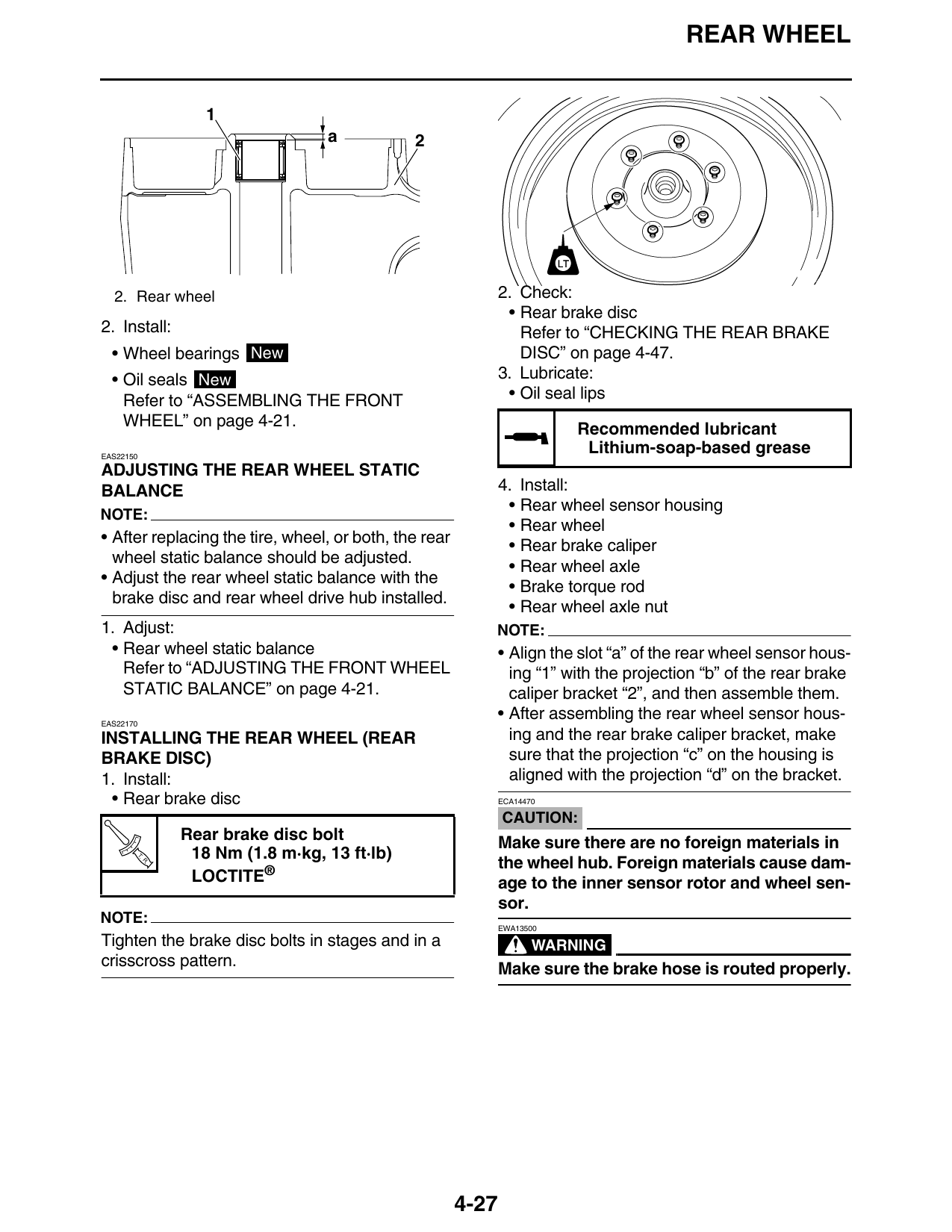

REAR WHEEL

                                  a           2

  2. Rear wheel                                               2. Check:
                                                               • Rear brake disc
2. Install:                                                      Refer to “CHECKING THE REAR BRAKE
  • Wheel bearings New                                           DISC” on page 4-47.
  • Oil seals New                                             3. Lubricate:
    Refer to “ASSEMBLING THE FRONT                             • Oil seal lips
    WHEEL” on page 4-21.                                                 Recommended lubricant
EAS22150
                                                                          Lithium-soap-based grease
ADJUSTING THE REAR WHEEL STATIC
BALANCE                                                       4. Install:
                                                               • Rear wheel sensor housing
NOTE:
                                                               • Rear wheel
• After replacing the tire, wheel, or both, the rear
                                                               • Rear brake caliper
  wheel static balance should be adjusted.
                                                               • Rear wheel axle
• Adjust the rear wheel static balance with the
                                                               • Brake torque rod
  brake disc and rear wheel drive hub installed.
                                                               • Rear wheel axle nut
1. Adjust:                                                NOTE:
 • Rear wheel static balance                                  • Align the slot “a” of the rear wheel sensor hous-
   Refer to “ADJUSTING THE FRONT WHEEL                          ing “1” with the projection “b” of the rear brake
   STATIC BALANCE” on page 4-21.                                caliper bracket “2”, and then assemble them.
EAS22170
                                                              • After assembling the rear wheel sensor hous-
INSTALLING THE REAR WHEEL (REAR                                 ing and the rear brake caliper bracket, make
BRAKE DISC)                                                     sure that the projection “c” on the housing is
1. Install:                                                     aligned with the projection “d” on the bracket.
  • Rear brake disc                                           ECA14470

                                                              CAUTION:
                Rear brake disc bolt                          Make sure there are no foreign materials in
       T.        18 Nm (1.8 m·kg, 13 ft·lb)
           R.
                                                              the wheel hub. Foreign materials cause dam-
                 LOCTITE®                                     age to the inner sensor rotor and wheel sen-
                                                              sor.
NOTE:
                                                              EWA13500
Tighten the brake disc bolts in stages and in a                      WARNING
crisscross pattern.
                                                              Make sure the brake hose is routed properly.

                                                       4-27

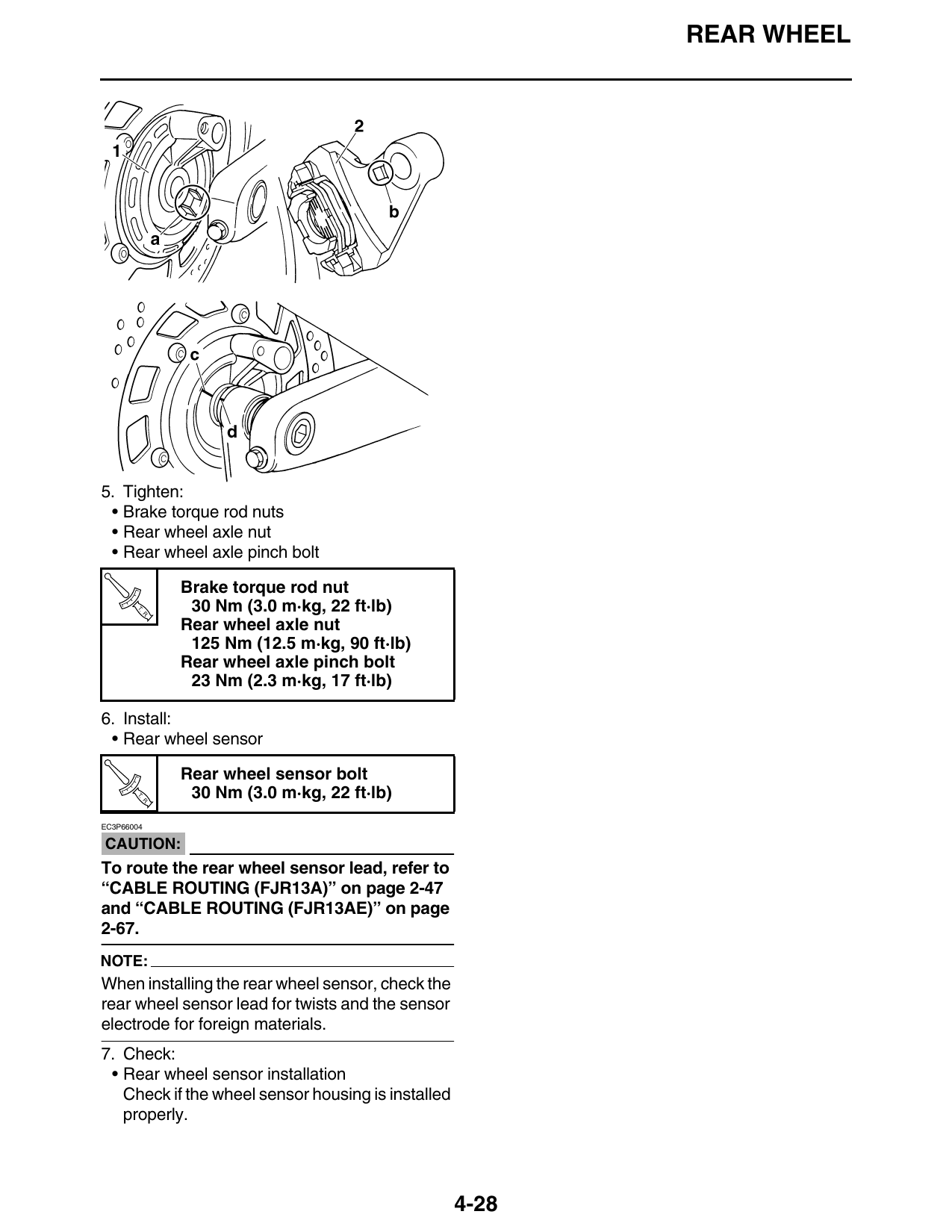

                                                           REAR WHEEL

5. Tighten:
 • Brake torque rod nuts
 • Rear wheel axle nut
 • Rear wheel axle pinch bolt

             Brake torque rod nut
       T.
        R.
              30 Nm (3.0 m·kg, 22 ft·lb)
             Rear wheel axle nut
              125 Nm (12.5 m·kg, 90 ft·lb)
             Rear wheel axle pinch bolt
              23 Nm (2.3 m·kg, 17 ft·lb)

6. Install:
 • Rear wheel sensor

             Rear wheel sensor bolt
       T.
        R.
              30 Nm (3.0 m·kg, 22 ft·lb)
EC3P66004

CAUTION:
To route the rear wheel sensor lead, refer to
“CABLE ROUTING (FJR13A)” on page 2-47
and “CABLE ROUTING (FJR13AE)” on page
2-67.
NOTE:
When installing the rear wheel sensor, check the
rear wheel sensor lead for twists and the sensor
electrode for foreign materials.
7. Check:
 • Rear wheel sensor installation
   Check if the wheel sensor housing is installed
   properly.

                                                    4-28
