Removing The Side Panels

GENERAL CHASSIS

ET3P61037

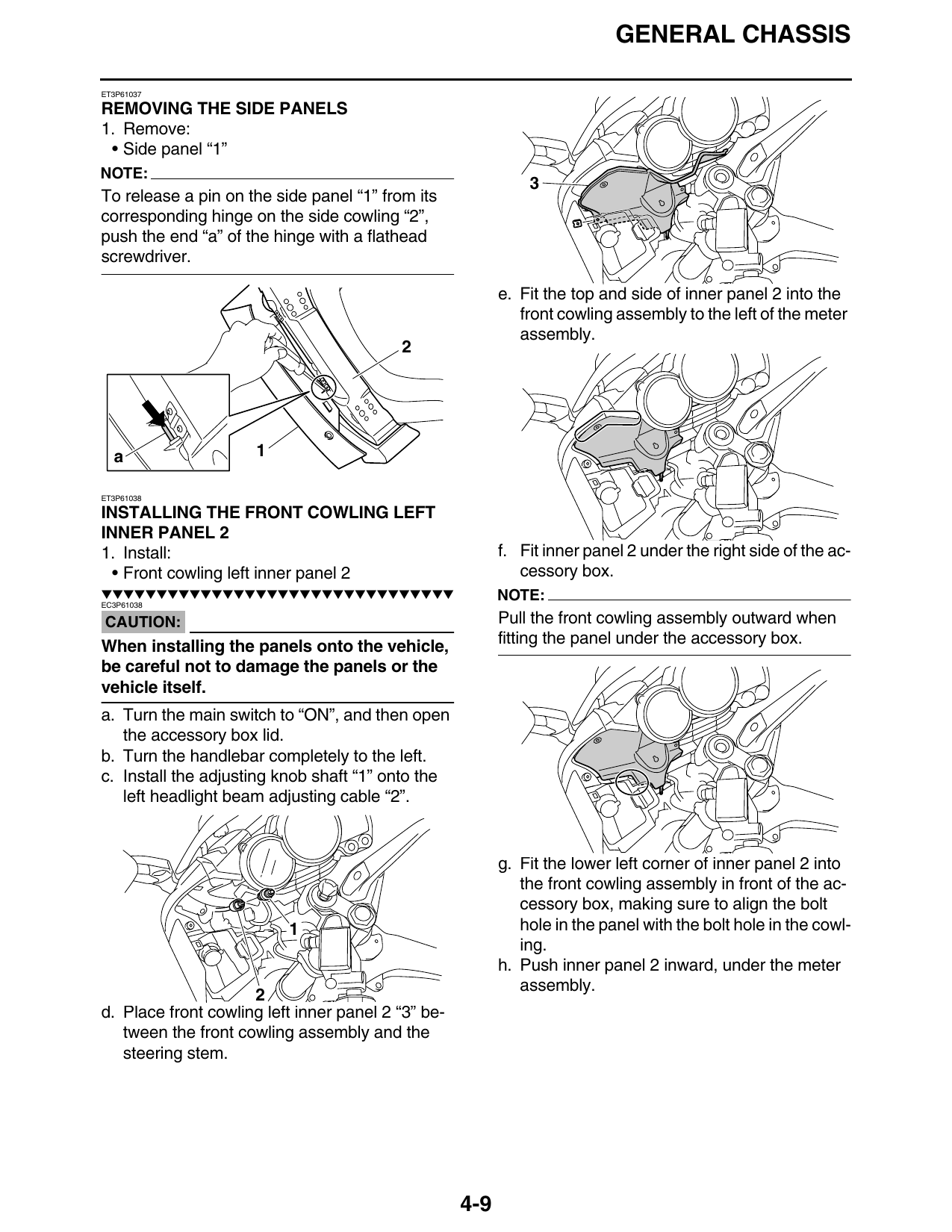

REMOVING THE SIDE PANELS
1. Remove:
 • Side panel “1”
NOTE:
To release a pin on the side panel “1” from its
corresponding hinge on the side cowling “2”,
push the end “a” of the hinge with a flathead
screwdriver.

                                                          e. Fit the top and side of inner panel 2 into the
                                                             front cowling assembly to the left of the meter
                                                             assembly.

  a                   1

ET3P61038

INSTALLING THE FRONT COWLING LEFT
INNER PANEL 2
1. Install:                                               f. Fit inner panel 2 under the right side of the ac-
  • Front cowling left inner panel 2                         cessory box.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼                          NOTE:
EC3P61038

CAUTION:                                                  Pull the front cowling assembly outward when
                                                          fitting the panel under the accessory box.
When installing the panels onto the vehicle,
be careful not to damage the panels or the
vehicle itself.
a. Turn the main switch to “ON”, and then open
   the accessory box lid.
b. Turn the handlebar completely to the left.
c. Install the adjusting knob shaft “1” onto the
   left headlight beam adjusting cable “2”.

                                                          g. Fit the lower left corner of inner panel 2 into
                                                             the front cowling assembly in front of the ac-
                                                             cessory box, making sure to align the bolt
                          1                                  hole in the panel with the bolt hole in the cowl-
                                                             ing.
                                                          h. Push inner panel 2 inward, under the meter
                                                             assembly.
d. Place front cowling left inner panel 2 “3” be-
   tween the front cowling assembly and the
   steering stem.

                                                    4-9
