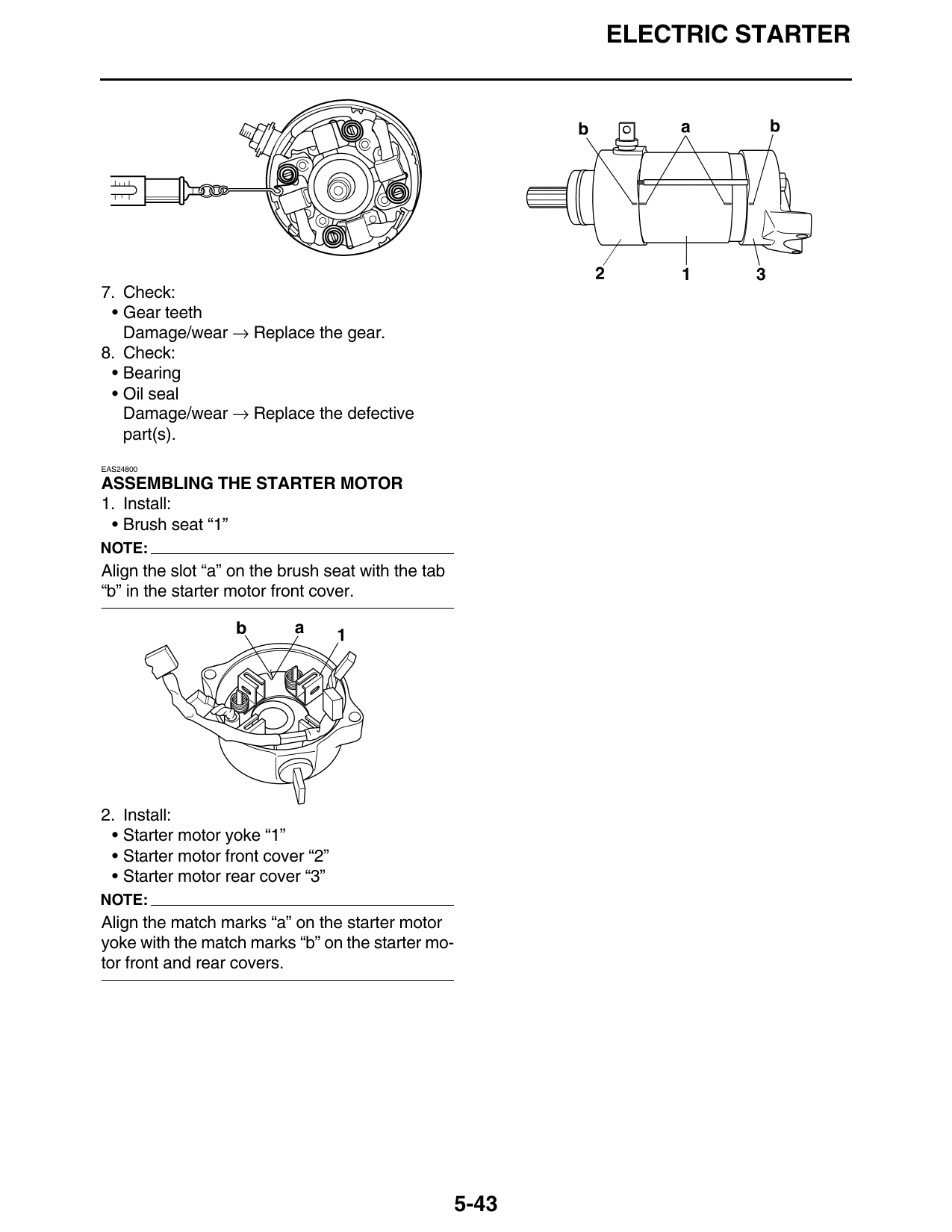

Assembling The Starter Motor

ELECTRIC STARTER

7. Check:
 • Gear teeth
   Damage/wear → Replace the gear.
8. Check:
 • Bearing
 • Oil seal
   Damage/wear → Replace the defective
   part(s).
EAS24800

ASSEMBLING THE STARTER MOTOR
1. Install:
 • Brush seat “1”
NOTE:
Align the slot “a” on the brush seat with the tab
“b” in the starter motor front cover.

2. Install:
 • Starter motor yoke “1”
 • Starter motor front cover “2”
 • Starter motor rear cover “3”
NOTE:
Align the match marks “a” on the starter motor
yoke with the match marks “b” on the starter mo-
tor front and rear covers.

                                                    5-43
