Crankshaft

CRANKSHAFT

EAS25950

CRANKSHAFT

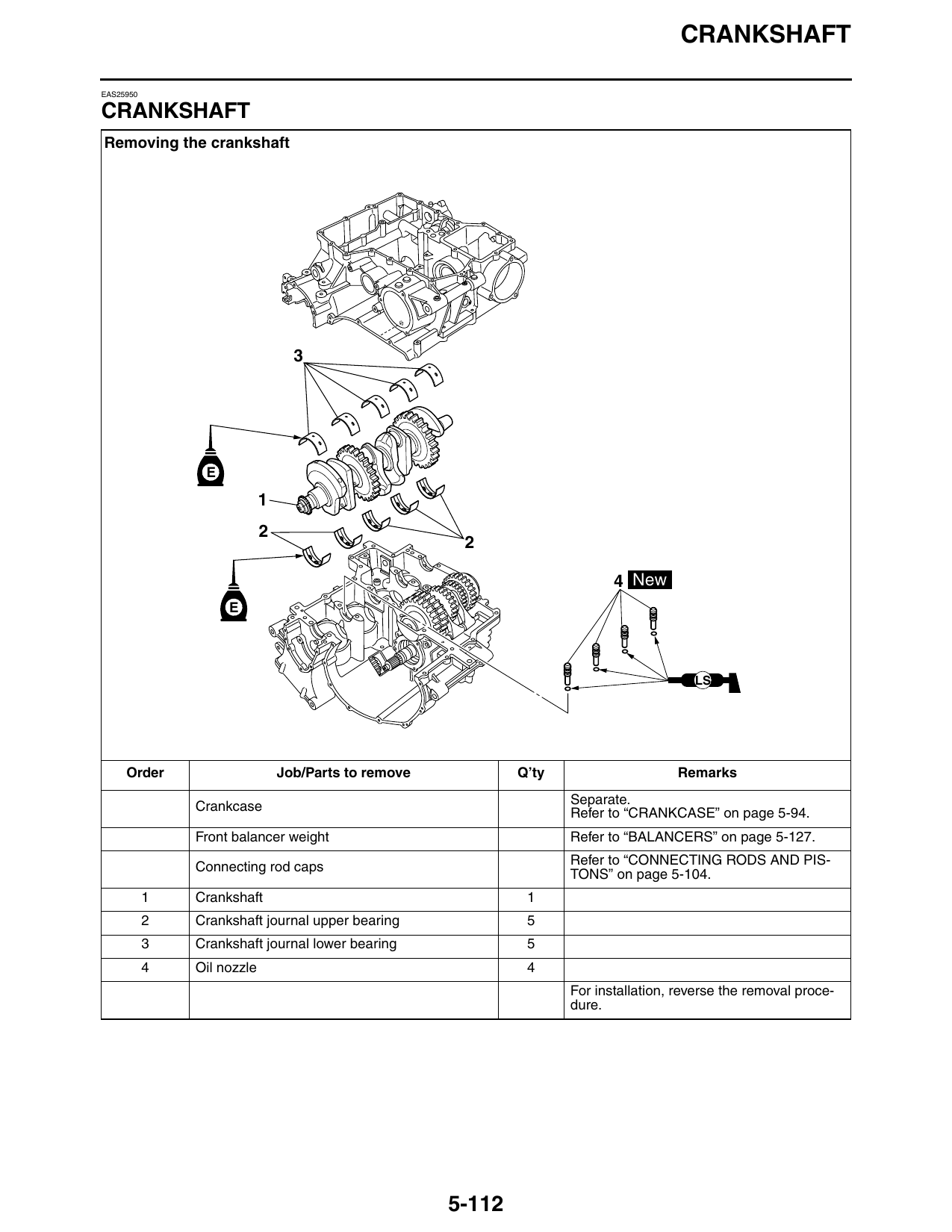

Removing the crankshaft

                E

                                                                            4 New
                    E

                                                                                         LS

     Order                      Job/Parts to remove           Q’ty                    Remarks
                                                                     Separate.
               Crankcase                                             Refer to “CRANKCASE” on page 5-94.
               Front balancer weight                                 Refer to “BALANCERS” on page 5-127.
                                                                     Refer to “CONNECTING RODS AND PIS-
               Connecting rod caps                                   TONS” on page 5-104.
           1   Crankshaft                                      1
           2   Crankshaft journal upper bearing                5
           3   Crankshaft journal lower bearing                5
           4   Oil nozzle                                      4
                                                                     For installation, reverse the removal proce-
                                                                     dure.
