CYLINDER HEAD

EAS24100

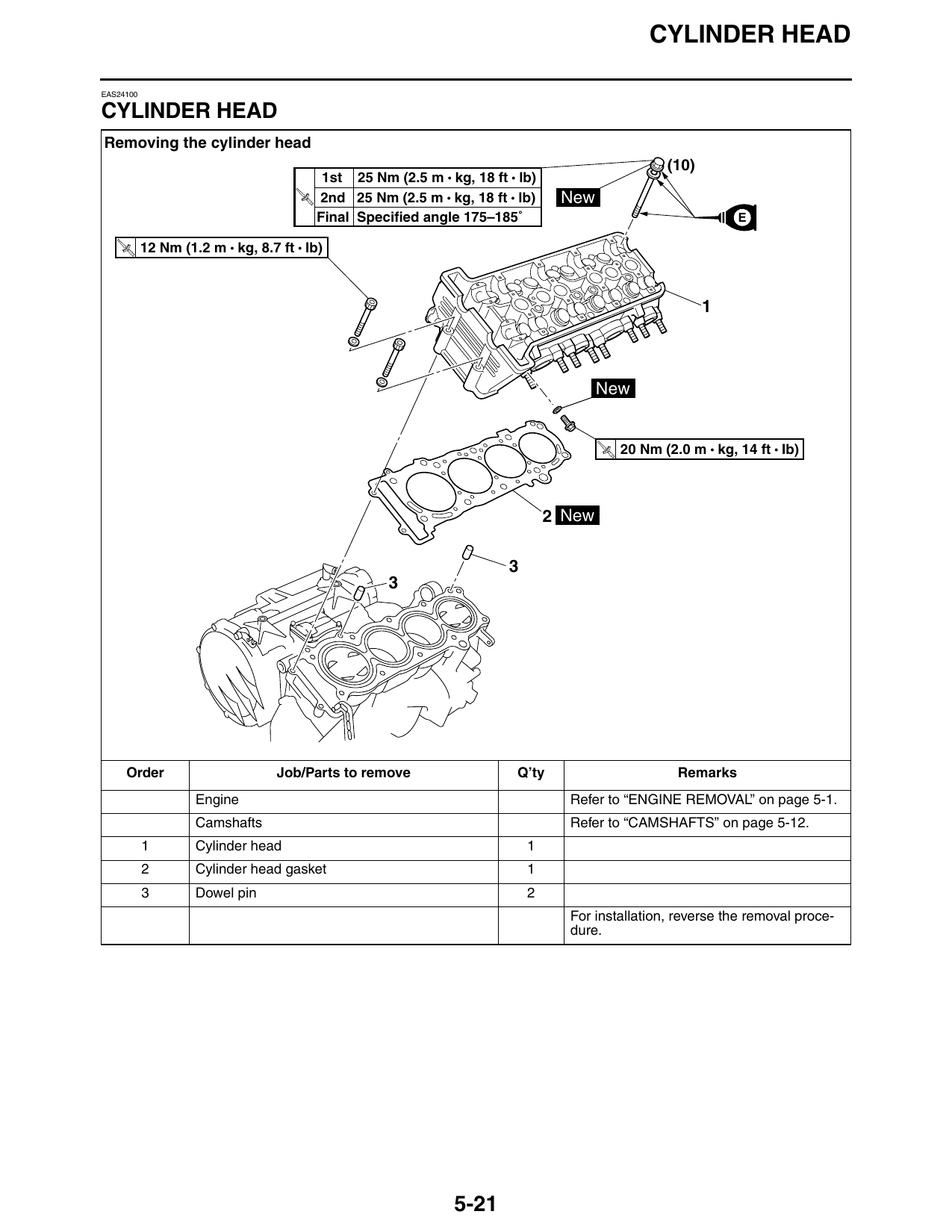

CYLINDER HEAD
Removing the cylinder head
                                                                                                          (10)
                                               1st 25 Nm (2.5 m • kg, 18 ft • lb)
                                        T.
                                         R.
                                              2nd 25 Nm (2.5 m • kg, 18 ft • lb)     New
                                              Final Specified angle 175–185˚                                          E

      T.
       R.
            12 Nm (1.2 m • kg, 8.7 ft • Ib)

                                                                                            New

                                                                                             T.
                                                                                              R.
                                                                                                   20 Nm (2.0 m • kg, 14 ft • Ib)

                                                                                    2 New

     Order                         Job/Parts to remove                        Q’ty                          Remarks
                     Engine                                                           Refer to “ENGINE REMOVAL” on page 5-1.
                     Camshafts                                                        Refer to “CAMSHAFTS” on page 5-12.
            1        Cylinder head                                              1
            2        Cylinder head gasket                                       1
            3        Dowel pin                                                  2
                                                                                      For installation, reverse the removal proce-
                                                                                      dure.

                                                                   5-21
