Generator And Starter Clutch

GENERATOR AND STARTER CLUTCH

EAS24480

GENERATOR AND STARTER CLUTCH

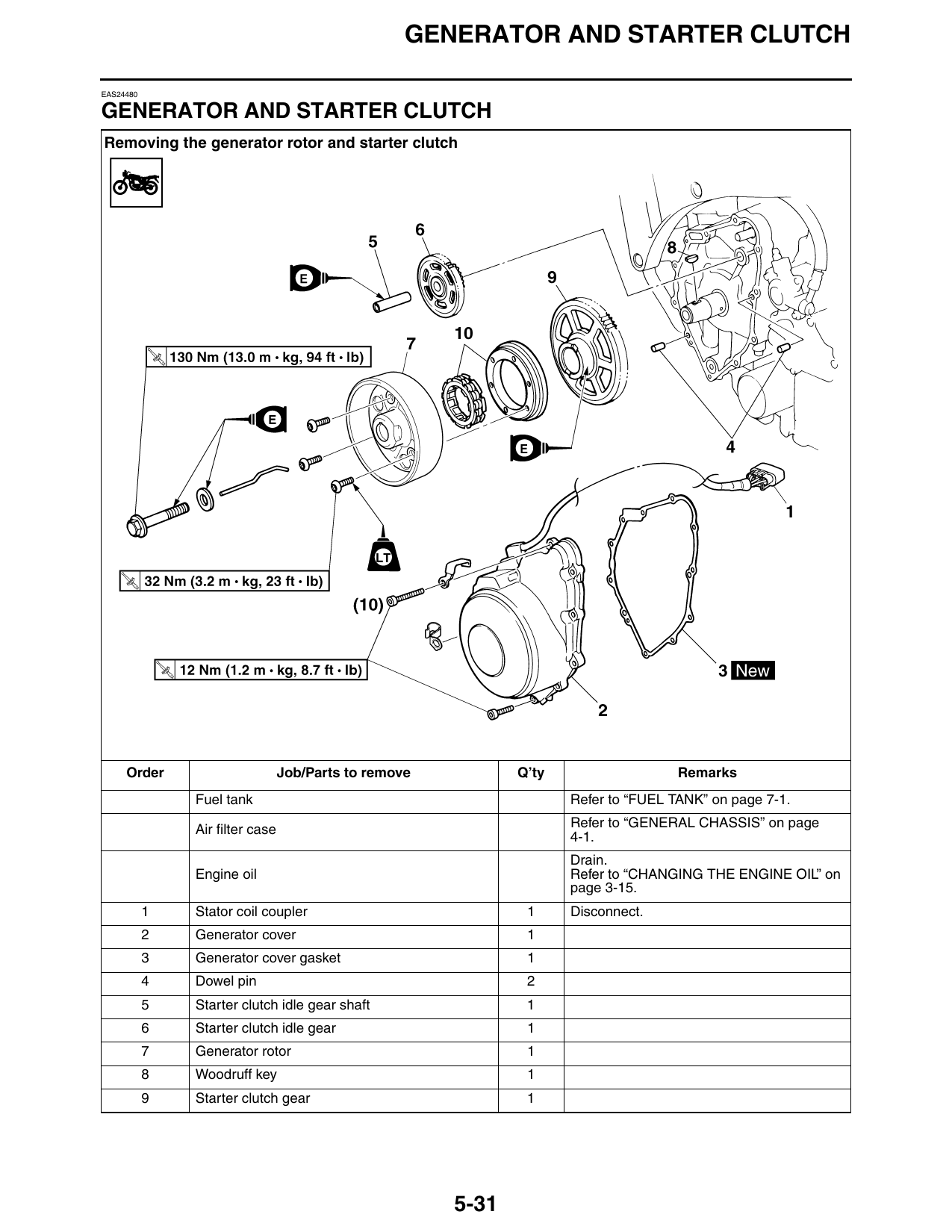

Removing the generator rotor and starter clutch

     Order                       Job/Parts to remove          Q’ty                   Remarks
               Fuel tank                                             Refer to “FUEL TANK” on page 7-1.
                                                                     Refer to “GENERAL CHASSIS” on page
               Air filter case                                       4-1.
                                                                     Drain.
               Engine oil                                            Refer to “CHANGING THE ENGINE OIL” on
                                                                     page 3-15.
           1   Stator coil coupler                             1     Disconnect.
           2   Generator cover                                 1
           3   Generator cover gasket                          1
           4   Dowel pin                                       2
           5   Starter clutch idle gear shaft                  1
           6   Starter clutch idle gear                        1
           7   Generator rotor                                 1
           8   Woodruff key                                    1
           9   Starter clutch gear                             1

                                                       5-31
                                           GENERATOR AND STARTER CLUTCH

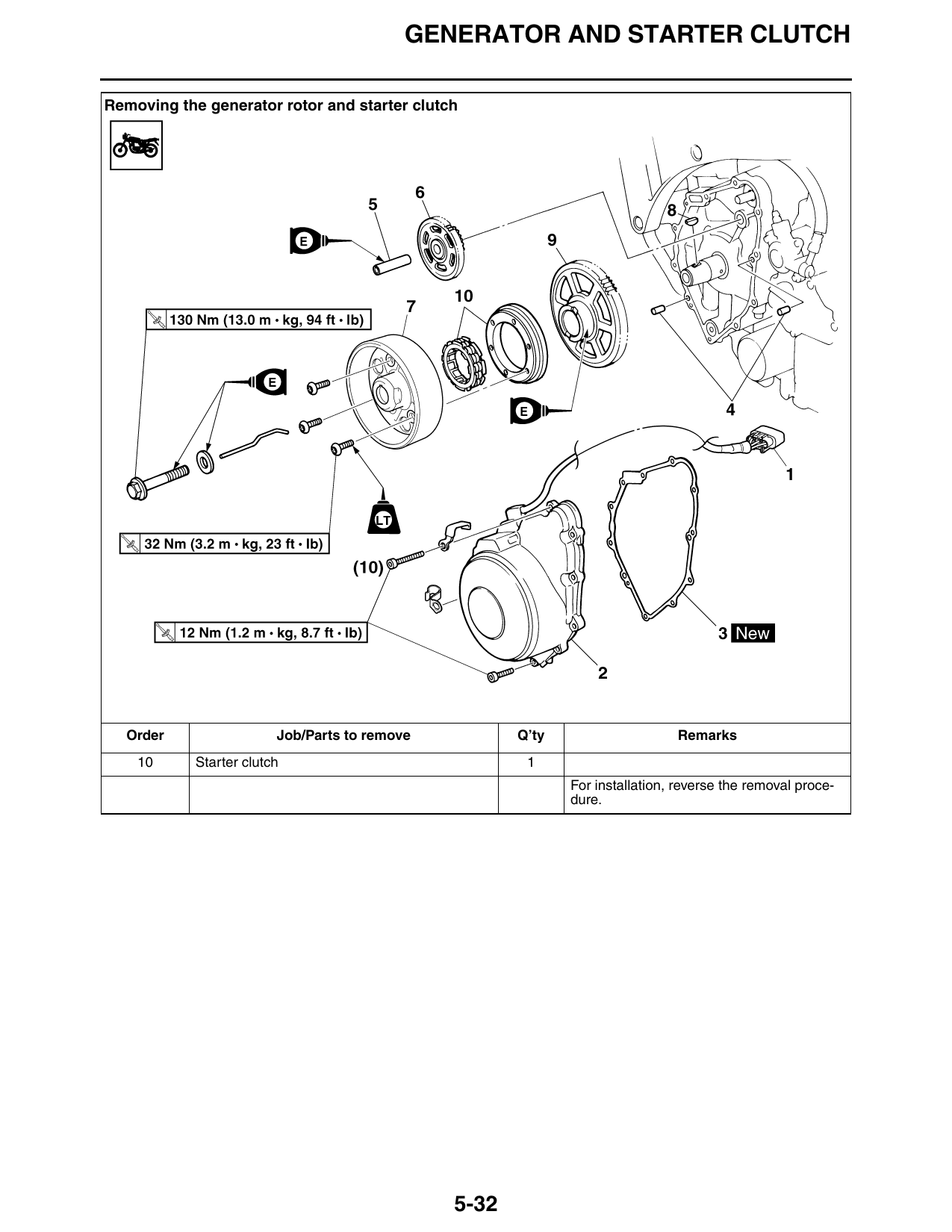

Removing the generator rotor and starter clutch

  Order                  Job/Parts to remove          Q’ty                    Remarks
    10      Starter clutch                             1
                                                             For installation, reverse the removal proce-
                                                             dure.

                                               5-32
                                              GENERATOR AND STARTER CLUTCH

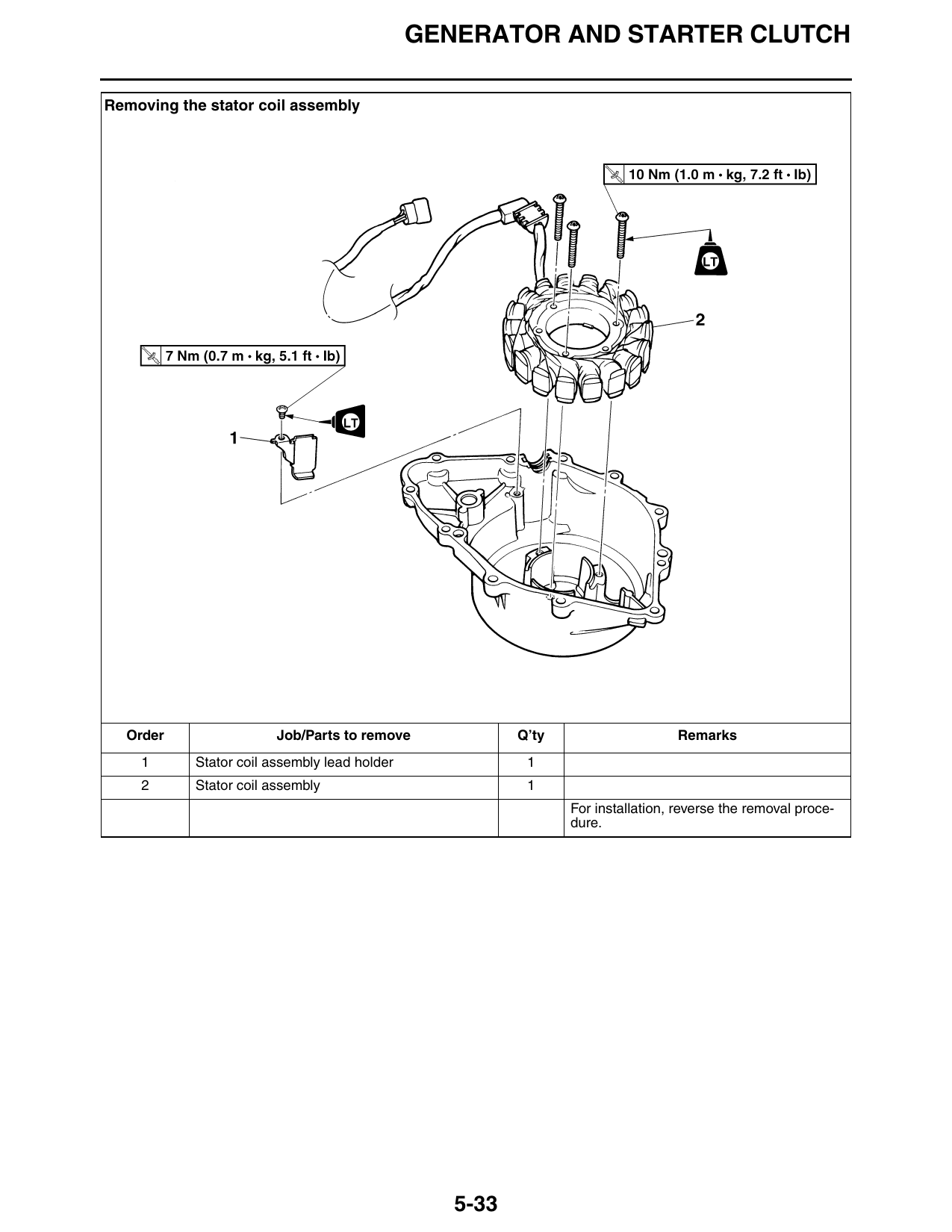

Removing the stator coil assembly

  Order                 Job/Parts to remove             Q’ty                    Remarks
    1      Stator coil assembly lead holder              1
    2      Stator coil assembly                          1
                                                               For installation, reverse the removal proce-
                                                               dure.
