Installing The Generator

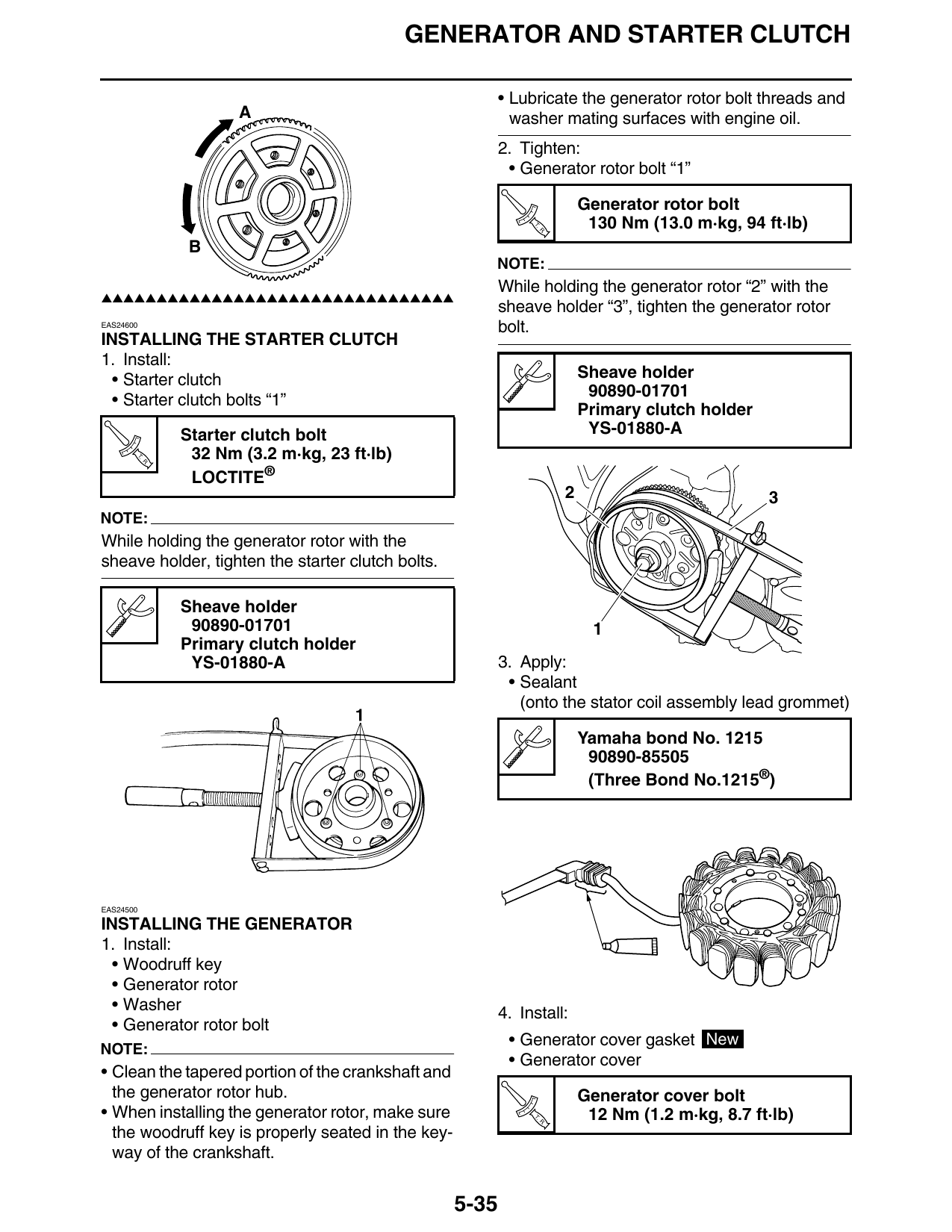

GENERATOR AND STARTER CLUTCH

                                                           • Lubricate the generator rotor bolt threads and
                       A                                     washer mating surfaces with engine oil.
                                                           2. Tighten:
                                                            • Generator rotor bolt “1”

                                                                          Generator rotor bolt
                                                                T.
                                                                 R.
                                                                           130 Nm (13.0 m·kg, 94 ft·lb)
                 B
                                                       NOTE:
                                                           While holding the generator rotor “2” with the
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
                                                           sheave holder “3”, tighten the generator rotor
EAS24600
                                                           bolt.
INSTALLING THE STARTER CLUTCH
1. Install:
  • Starter clutch                                                        Sheave holder
                                                                           90890-01701
  • Starter clutch bolts “1”
                                                                          Primary clutch holder
                Starter clutch bolt                                        YS-01880-A
       T.
           R.
                 32 Nm (3.2 m·kg, 23 ft·lb)
                 LOCTITE®
                                                                      2                           3
NOTE:
While holding the generator rotor with the
sheave holder, tighten the starter clutch bolts.

                Sheave holder
                 90890-01701                                                1
                Primary clutch holder
                 YS-01880-A                                3. Apply:
                                                            • Sealant
                                                              (onto the stator coil assembly lead grommet)

                                                                          Yamaha bond No. 1215
                                                                           90890-85505
                                                                           (Three Bond No.1215®)

EAS24500

INSTALLING THE GENERATOR
1. Install:
  • Woodruff key
  • Generator rotor
  • Washer                                                 4. Install:
  • Generator rotor bolt
                                                            • Generator cover gasket New
NOTE:
                                                            • Generator cover
• Clean the tapered portion of the crankshaft and
  the generator rotor hub.                                                Generator cover bolt
• When installing the generator rotor, make sure                T.
                                                                 R.
                                                                           12 Nm (1.2 m·kg, 8.7 ft·lb)
  the woodruff key is properly seated in the key-
  way of the crankshaft.

                                                    5-35

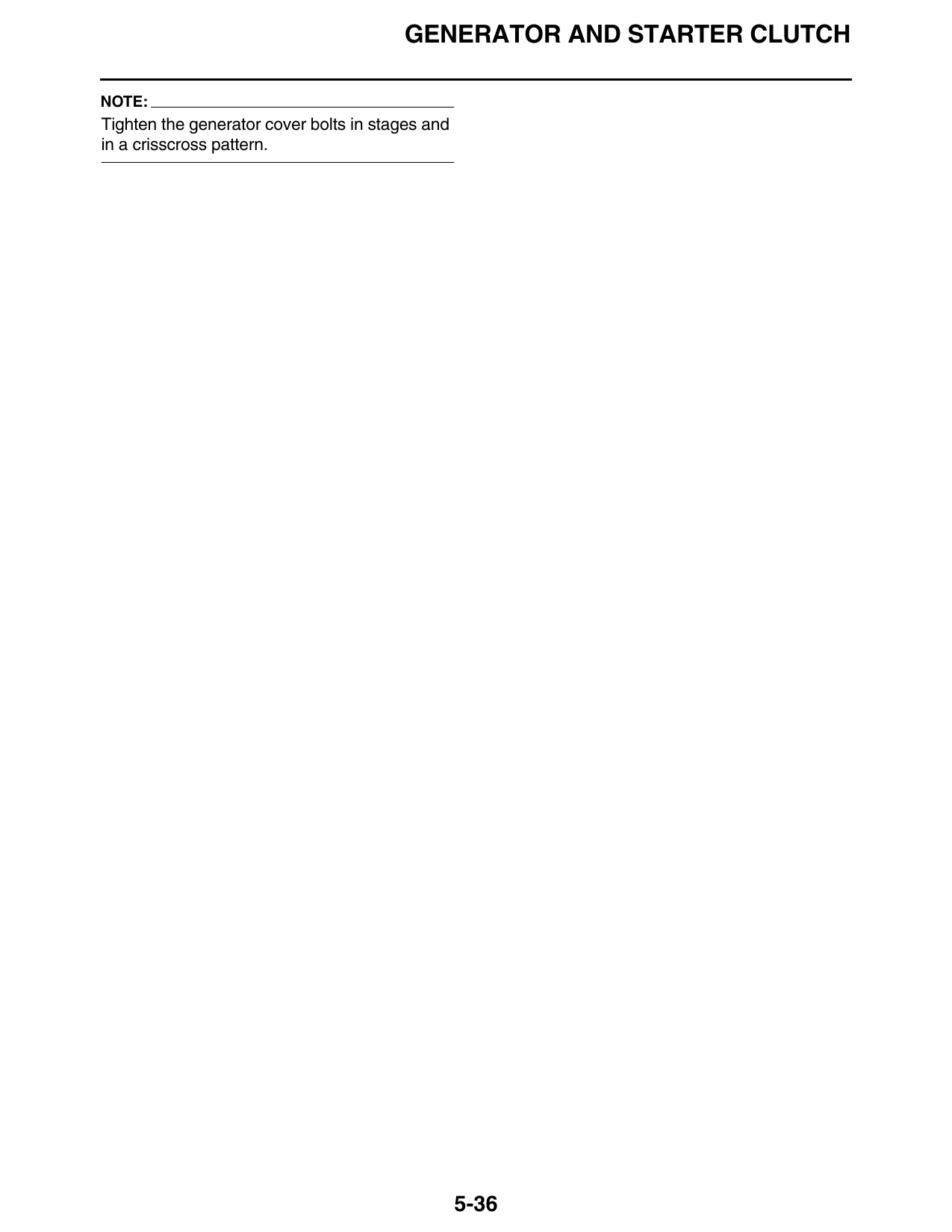

                                        GENERATOR AND STARTER CLUTCH

NOTE:
Tighten the generator cover bolts in stages and
in a crisscross pattern.

                                                  5-36
