PICKUP ROTOR

EAS24520

PICKUP ROTOR

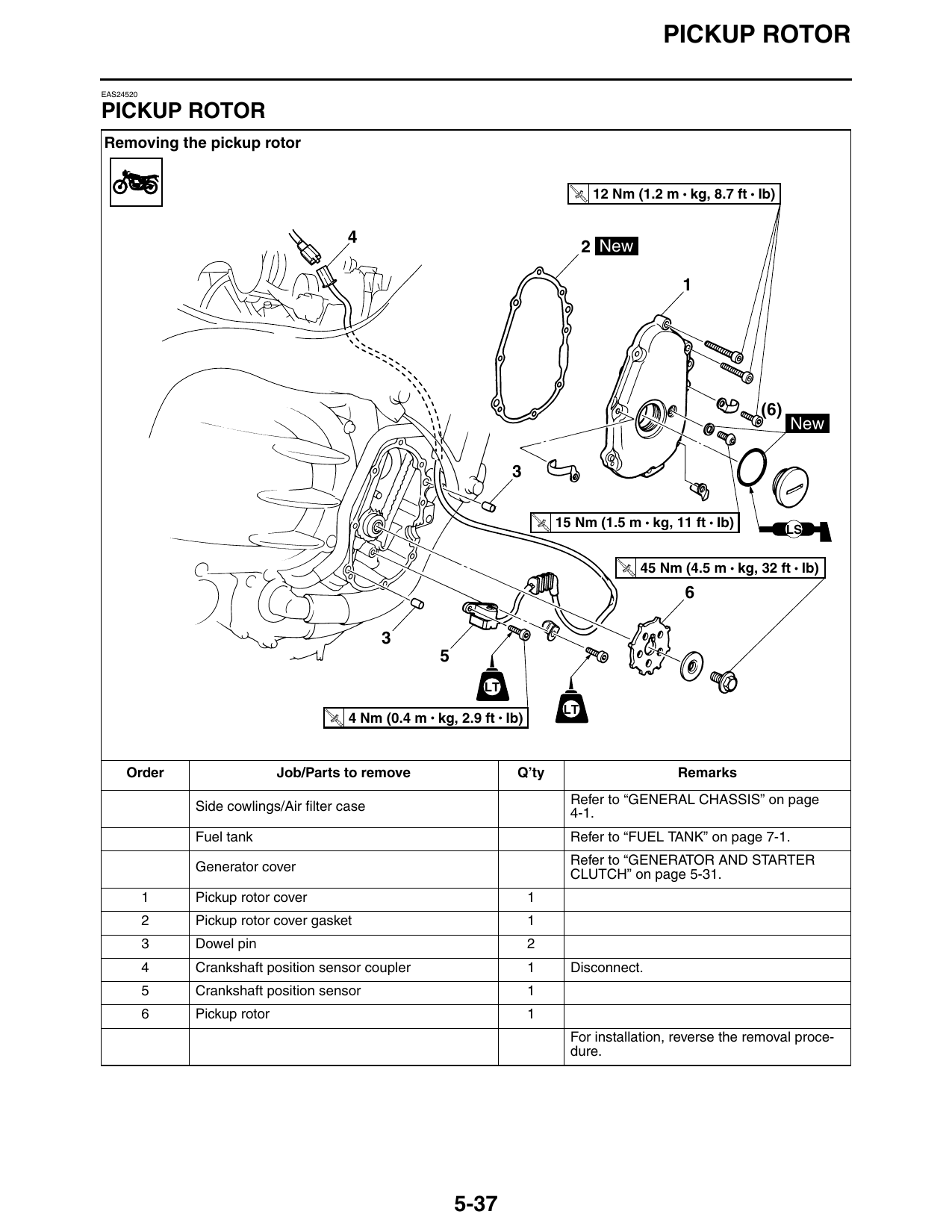

Removing the pickup rotor

                                                                                              T.
                                                                                               R.
                                                                                                    12 Nm (1.2 m • kg, 8.7 ft • Ib)

                                                                                              2 New

                                                                                                                                    (6)
                                                                                                                                          New

                                                                                  T.
                                                                                   R.
                                                                                        15 Nm (1.5 m • kg, 11 ft • Ib)                    LS

                                                                                                          T.
                                                                                                           R.
                                                                                                                45 Nm (4.5 m • kg, 32 ft • Ib)

                                                                    LT
                                                                                         LT
                                       T.
                                        R.
                                             4 Nm (0.4 m • kg, 2.9 ft • Ib)

     Order                    Job/Parts to remove                         Q’ty                                        Remarks
                                                                                          Refer to “GENERAL CHASSIS” on page
               Side cowlings/Air filter case                                              4-1.
               Fuel tank                                                                  Refer to “FUEL TANK” on page 7-1.
                                                                                          Refer to “GENERATOR AND STARTER
               Generator cover                                                            CLUTCH” on page 5-31.
           1   Pickup rotor cover                                             1
           2   Pickup rotor cover gasket                                      1
           3   Dowel pin                                                      2
           4   Crankshaft position sensor coupler                             1           Disconnect.
           5   Crankshaft position sensor                                     1
           6   Pickup rotor                                                   1
                                                                                          For installation, reverse the removal proce-
                                                                                          dure.

                                                                5-37
