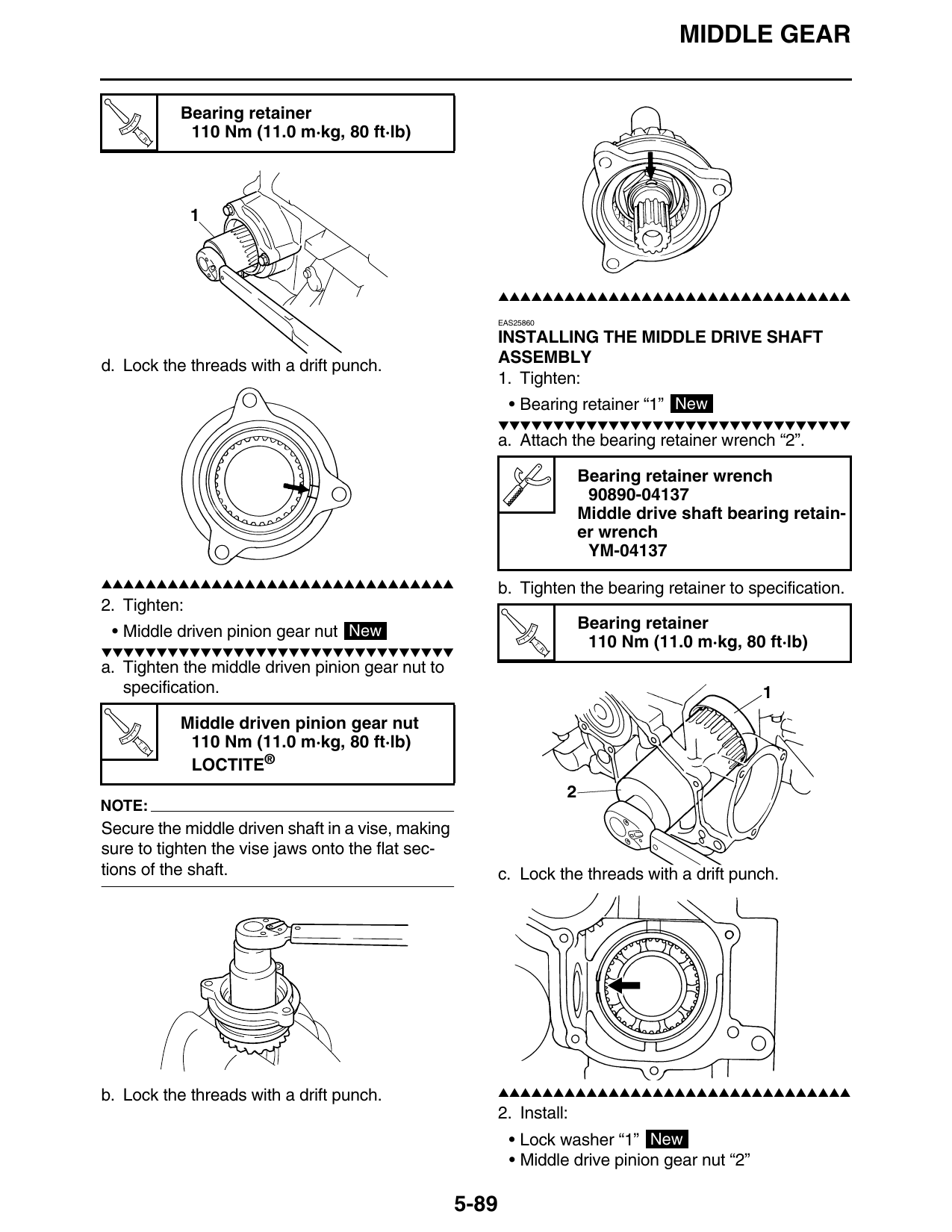

Installing The Middle Drive Shaft Assembly
Fragment manuala — str. 390
📋 Tekst do skopiowania / wyszukiwania
MIDDLE GEAR
Bearing retainer
T.
R.
110 Nm (11.0 m·kg, 80 ft·lb)
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS25860
INSTALLING THE MIDDLE DRIVE SHAFT
d. Lock the threads with a drift punch. ASSEMBLY
1. Tighten:
• Bearing retainer “1” New
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Attach the bearing retainer wrench “2”.
Bearing retainer wrench
90890-04137
Middle drive shaft bearing retain-
er wrench
YM-04137
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲ b. Tighten the bearing retainer to specification.
2. Tighten:
• Middle driven pinion gear nut New Bearing retainer
T. 110 Nm (11.0 m·kg, 80 ft·lb)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼ R.
a. Tighten the middle driven pinion gear nut to
specification.
Middle driven pinion gear nut
T.
R.
110 Nm (11.0 m·kg, 80 ft·lb)
LOCTITE®
NOTE:
Secure the middle driven shaft in a vise, making
sure to tighten the vise jaws onto the flat sec-
tions of the shaft. c. Lock the threads with a drift punch.
b. Lock the threads with a drift punch. ▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Lock washer “1” New
• Middle drive pinion gear nut “2”
5-89
