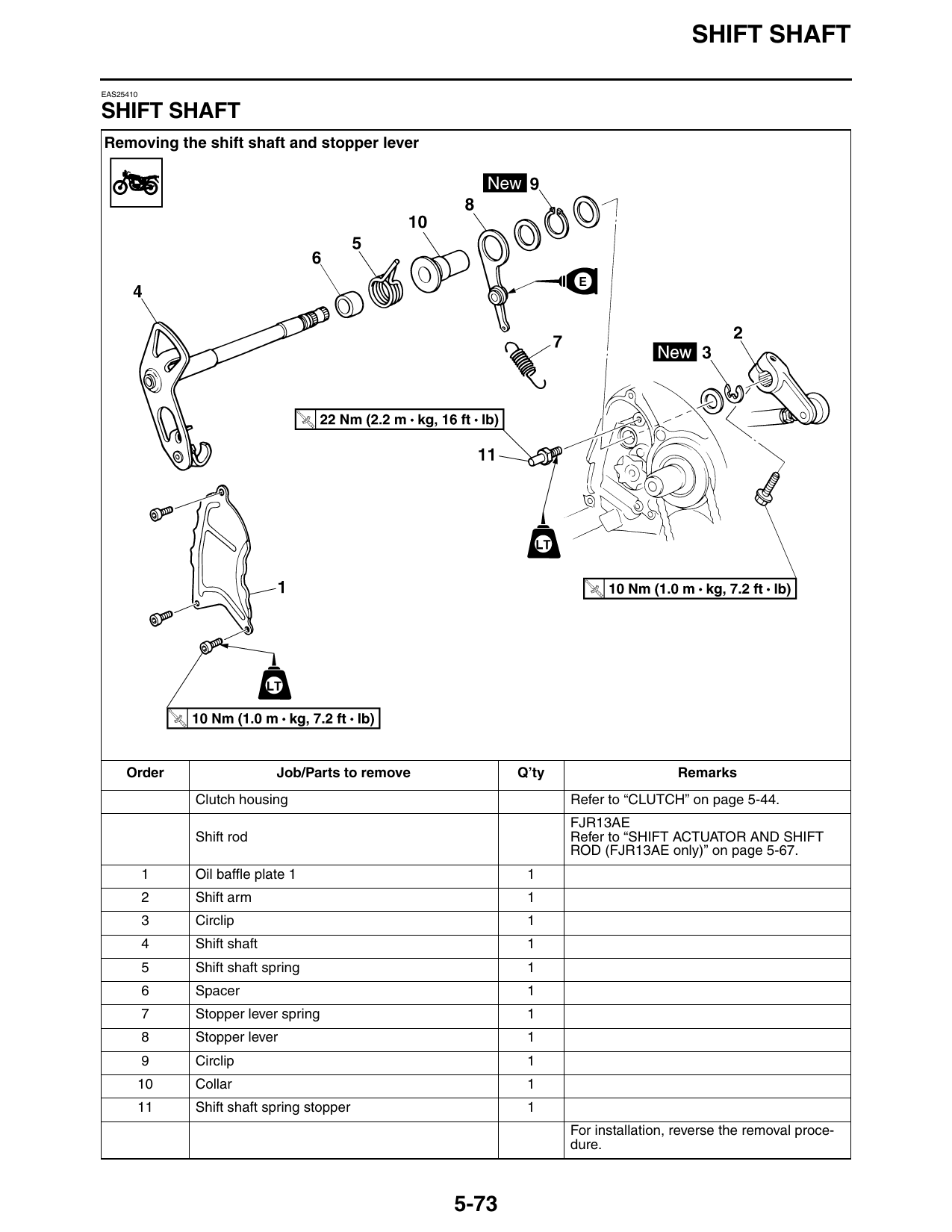

Shift Shaft

SHIFT SHAFT

EAS25410

SHIFT SHAFT
Removing the shift shaft and stopper lever

     Order                   Job/Parts to remove          Q’ty                    Remarks
               Clutch housing                                    Refer to “CLUTCH” on page 5-44.
                                                                 FJR13AE
               Shift rod                                         Refer to “SHIFT ACTUATOR AND SHIFT
                                                                 ROD (FJR13AE only)” on page 5-67.
           1   Oil baffle plate 1                          1
           2   Shift arm                                   1
           3   Circlip                                     1
           4   Shift shaft                                 1
           5   Shift shaft spring                          1
           6   Spacer                                      1
           7   Stopper lever spring                        1
           8   Stopper lever                               1
           9   Circlip                                     1
       10      Collar                                      1
       11      Shift shaft spring stopper                  1
                                                                 For installation, reverse the removal proce-
                                                                 dure.
