VALVES AND VALVE SPRINGS

EAS24270

VALVES AND VALVE SPRINGS

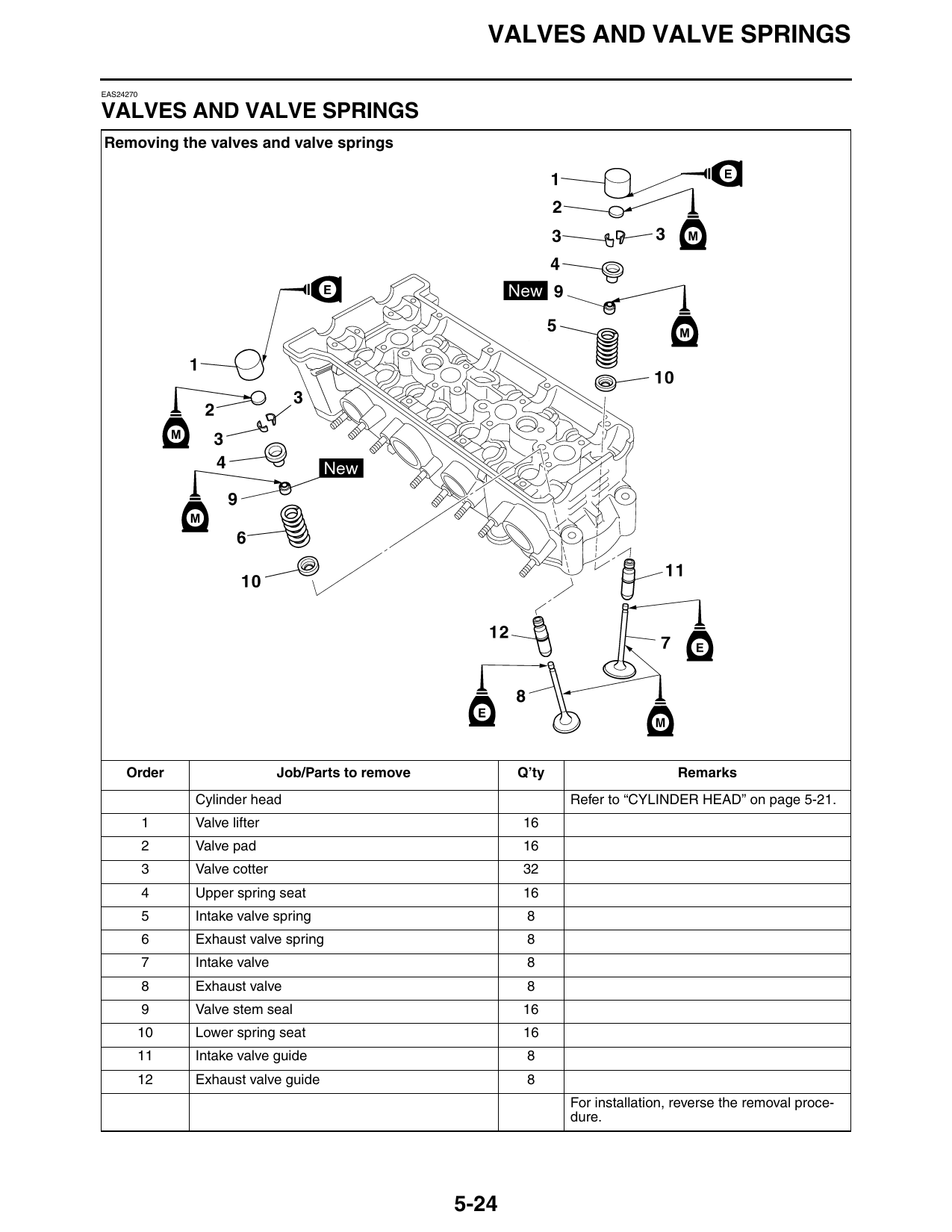

Removing the valves and valve springs

     Order                    Job/Parts to remove          Q’ty                    Remarks
               Cylinder head                                      Refer to “CYLINDER HEAD” on page 5-21.
           1   Valve lifter                                16
           2   Valve pad                                   16
           3   Valve cotter                                32
           4   Upper spring seat                           16
           5   Intake valve spring                          8
           6   Exhaust valve spring                         8
           7   Intake valve                                 8
           8   Exhaust valve                                8
           9   Valve stem seal                             16
       10      Lower spring seat                           16
       11      Intake valve guide                           8
       12      Exhaust valve guide                          8
                                                                  For installation, reverse the removal proce-
                                                                  dure.
