OIL COOLER

EAS26410

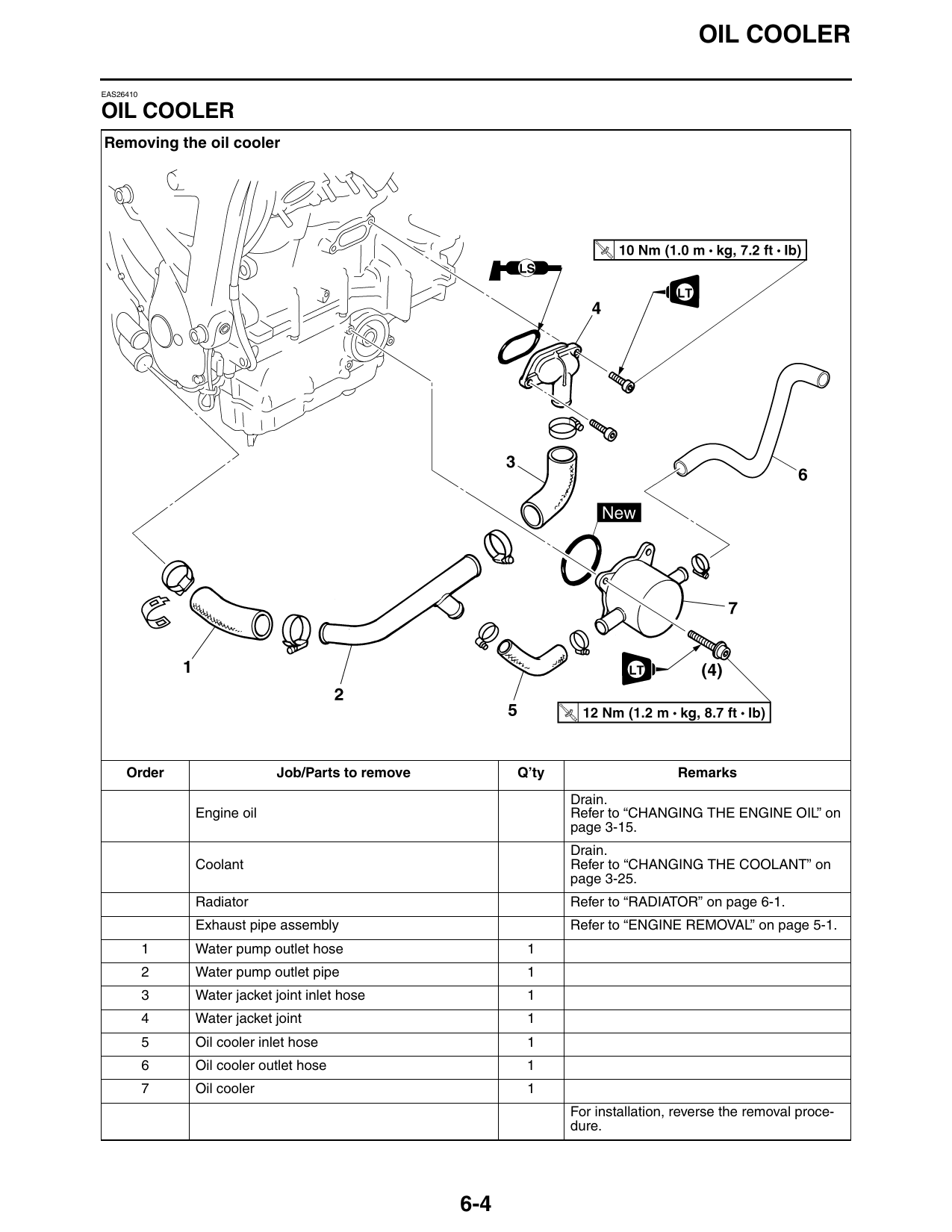

OIL COOLER
Removing the oil cooler

     Order                  Job/Parts to remove         Q’ty                    Remarks
                                                               Drain.
               Engine oil                                      Refer to “CHANGING THE ENGINE OIL” on
                                                               page 3-15.
                                                               Drain.
               Coolant                                         Refer to “CHANGING THE COOLANT” on
                                                               page 3-25.
               Radiator                                        Refer to “RADIATOR” on page 6-1.
               Exhaust pipe assembly                           Refer to “ENGINE REMOVAL” on page 5-1.
           1   Water pump outlet hose                    1
           2   Water pump outlet pipe                    1
           3   Water jacket joint inlet hose             1
           4   Water jacket joint                        1
           5   Oil cooler inlet hose                     1
           6   Oil cooler outlet hose                    1
           7   Oil cooler                                1
                                                               For installation, reverse the removal proce-
                                                               dure.

                                                  6-4
