Water Pump

WATER PUMP

EAS26500

WATER PUMP

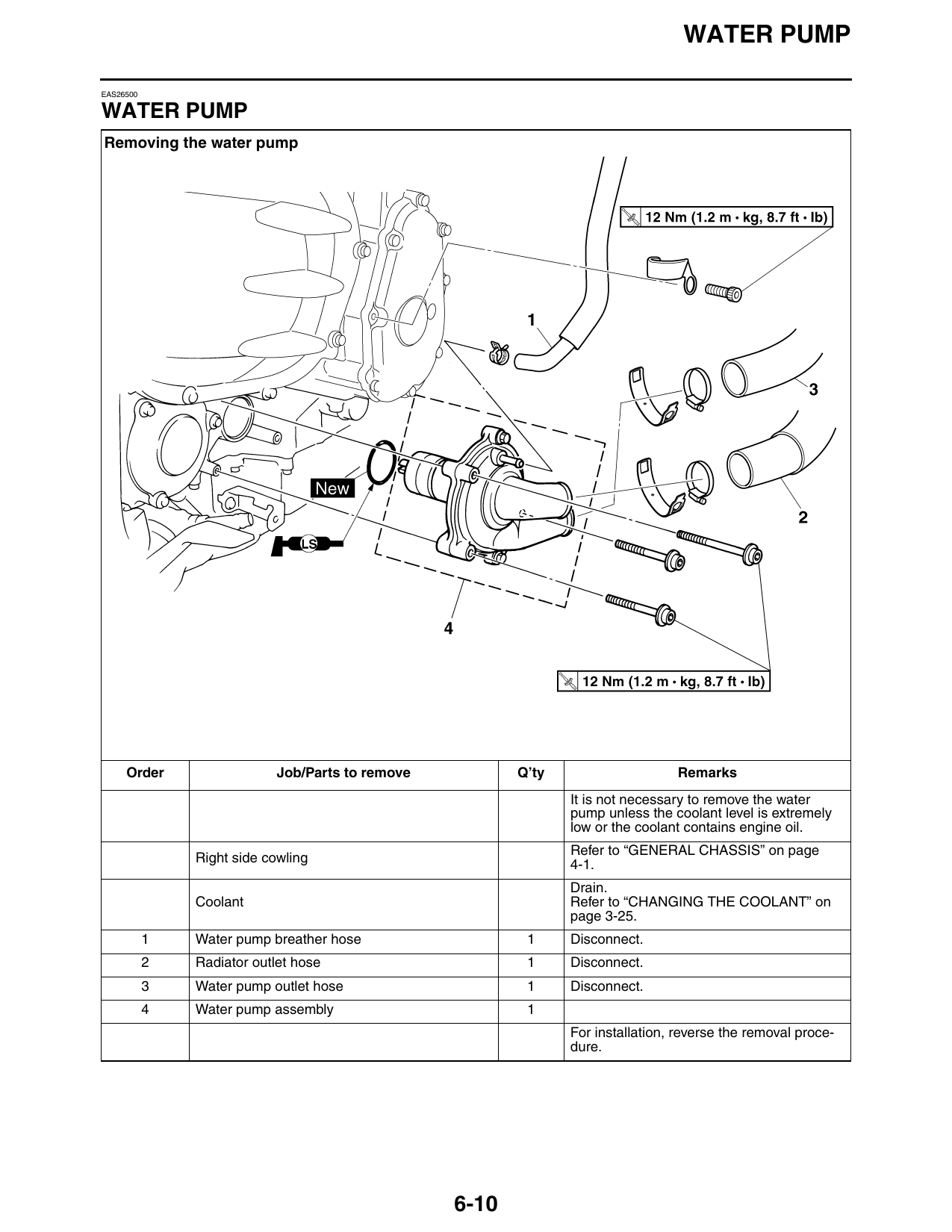

Removing the water pump

     Order                 Job/Parts to remove          Q’ty                    Remarks
                                                               It is not necessary to remove the water
                                                               pump unless the coolant level is extremely
                                                               low or the coolant contains engine oil.
                                                               Refer to “GENERAL CHASSIS” on page
               Right side cowling                              4-1.
                                                               Drain.
               Coolant                                         Refer to “CHANGING THE COOLANT” on
                                                               page 3-25.
           1   Water pump breather hose                  1     Disconnect.
           2   Radiator outlet hose                      1     Disconnect.
           3   Water pump outlet hose                    1     Disconnect.
           4   Water pump assembly                       1
                                                               For installation, reverse the removal proce-
                                                               dure.

                                                 6-10
                                                                             WATER PUMP

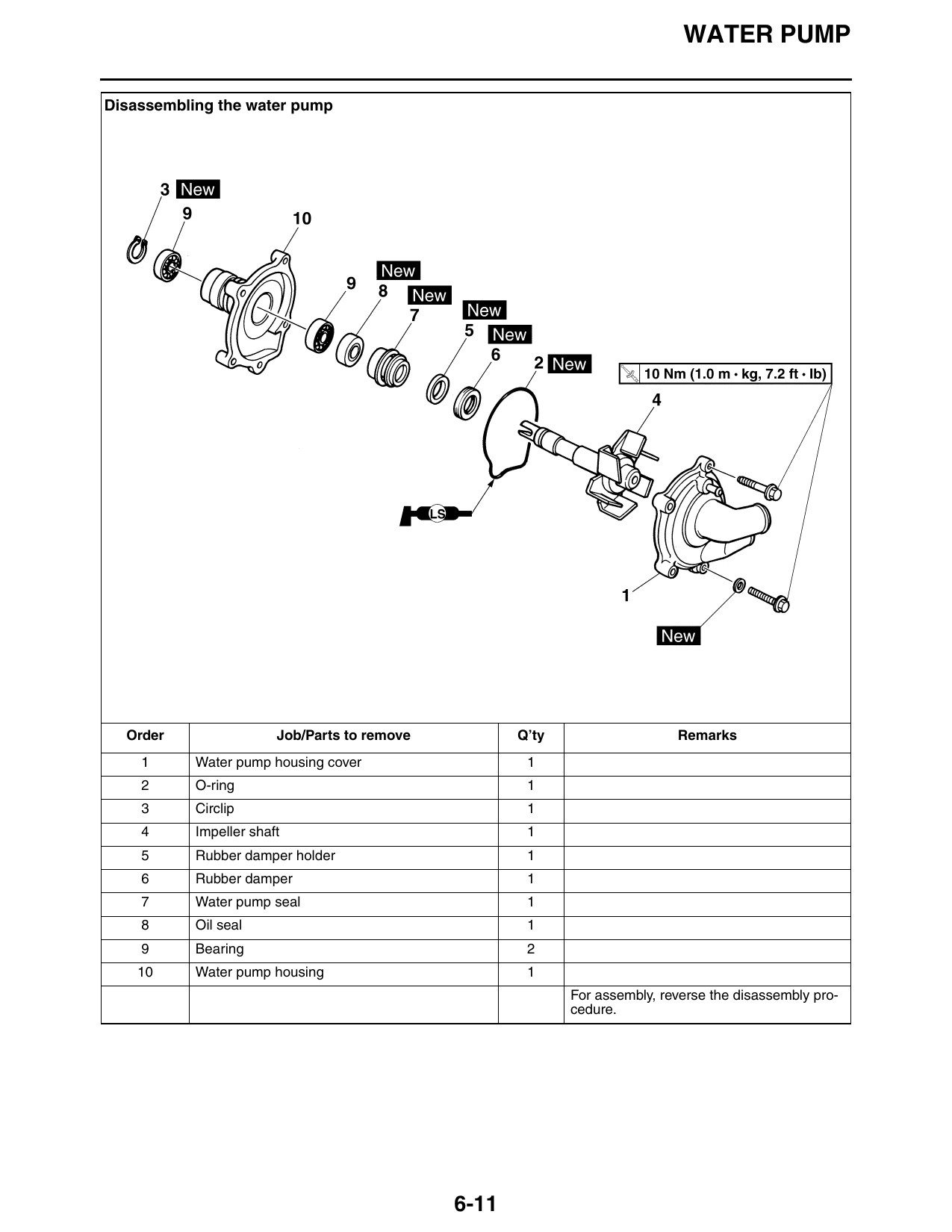

Disassembling the water pump

  Order                 Job/Parts to remove          Q’ty                   Remarks
    1      Water pump housing cover                   1
    2      O-ring                                     1
    3      Circlip                                    1
    4      Impeller shaft                             1
    5      Rubber damper holder                       1
    6      Rubber damper                              1
    7      Water pump seal                            1
    8      Oil seal                                   1
    9      Bearing                                    2
    10     Water pump housing                         1
                                                            For assembly, reverse the disassembly pro-
                                                            cedure.

                                              6-11
