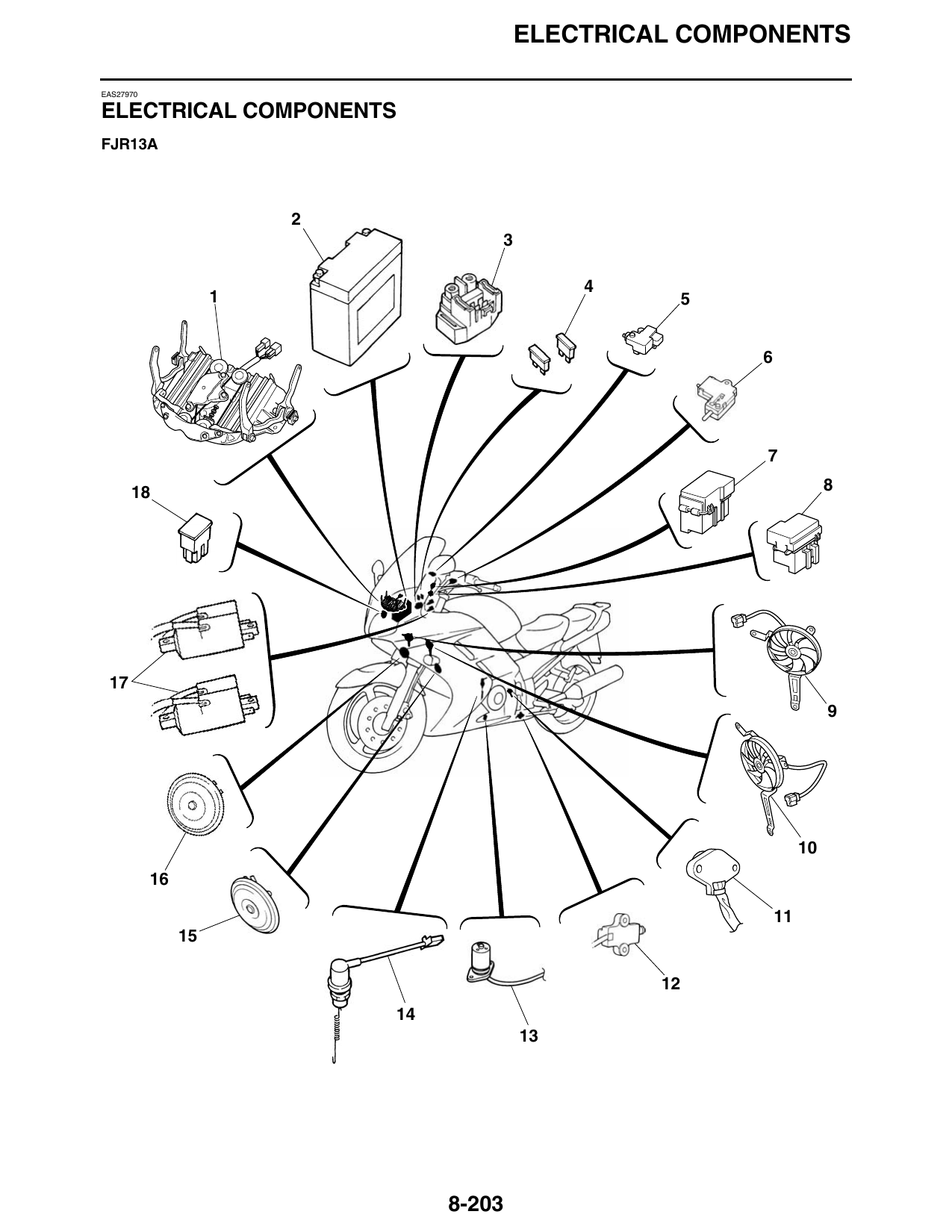

ELECTRICAL COMPONENTS

EAS27970

ELECTRICAL COMPONENTS
FJR13A

                     1                                  5

      18                                                                  8

                                  8-203
                                      ELECTRICAL COMPONENTS

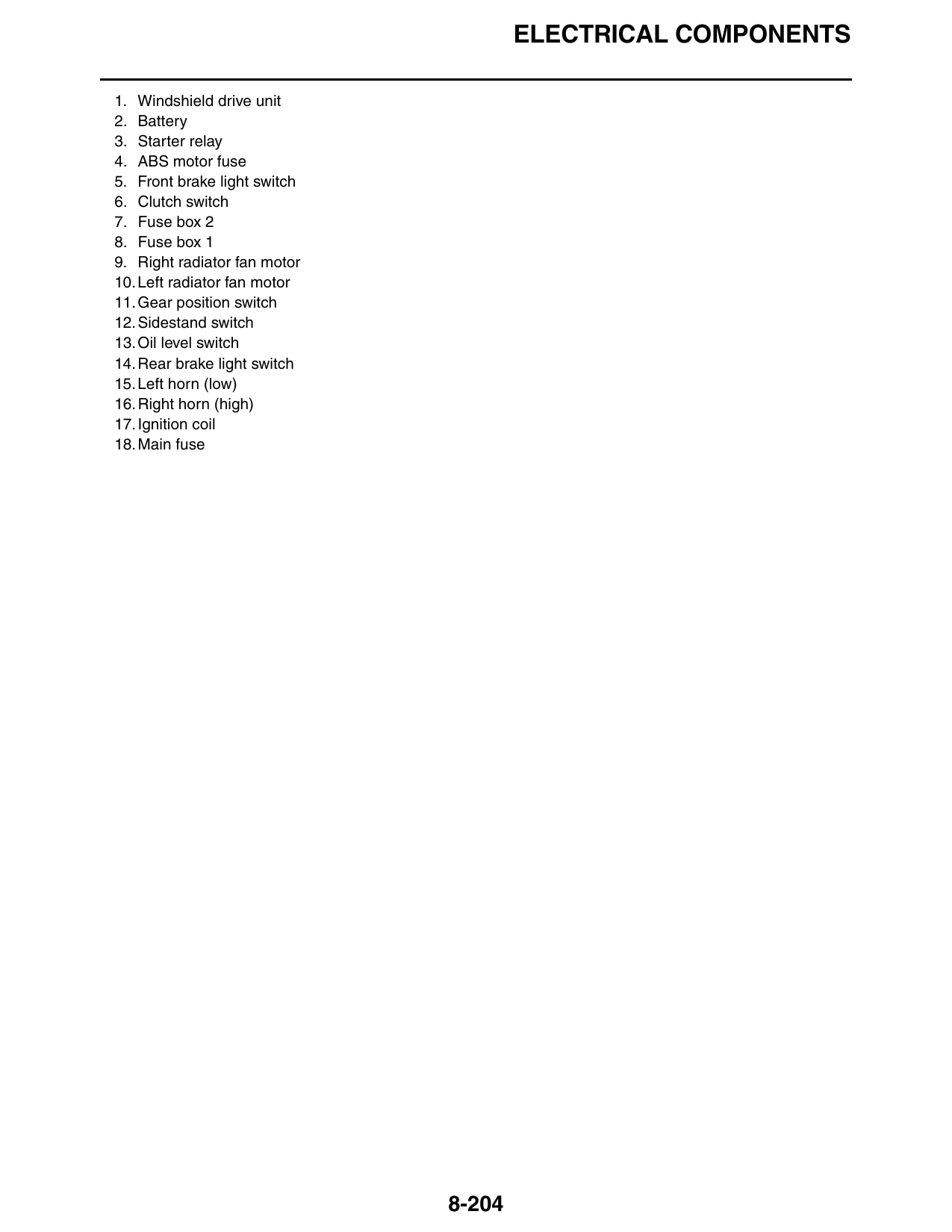

1. Windshield drive unit
2. Battery
3. Starter relay
4. ABS motor fuse
5. Front brake light switch
6. Clutch switch
7. Fuse box 2
8. Fuse box 1
9. Right radiator fan motor
10. Left radiator fan motor
11. Gear position switch
12. Sidestand switch
13. Oil level switch
14. Rear brake light switch
15. Left horn (low)
16. Right horn (high)
17. Ignition coil
18. Main fuse

                              8-204
