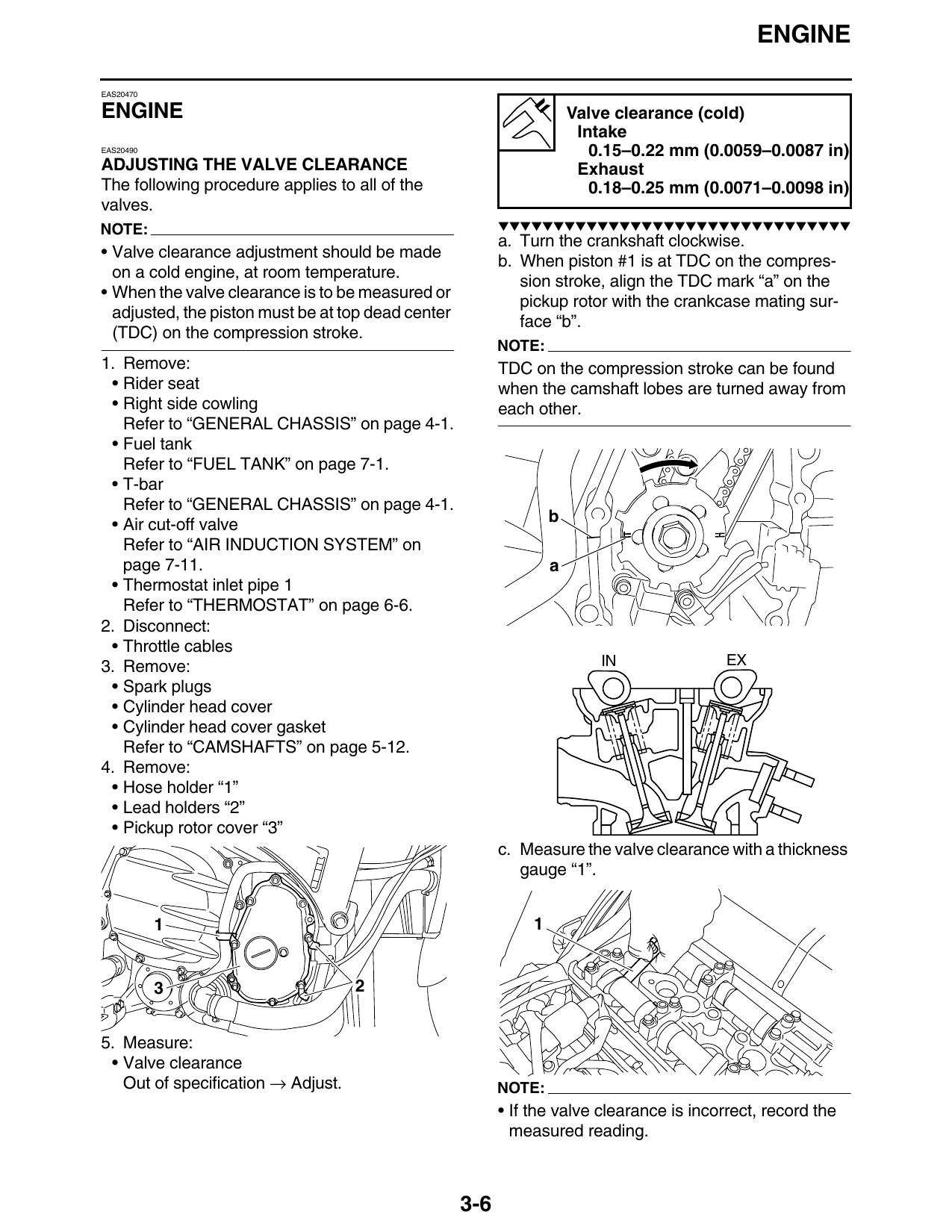

ENGINE                                                                 Valve clearance (cold)
                                                                        Intake
EAS20490                                                                  0.15–0.22 mm (0.0059–0.0087 in)
ADJUSTING THE VALVE CLEARANCE                                           Exhaust
The following procedure applies to all of the                             0.18–0.25 mm (0.0071–0.0098 in)
valves.
NOTE:                                                     ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
                                                          a. Turn the crankshaft clockwise.
• Valve clearance adjustment should be made
                                                          b. When piston #1 is at TDC on the compres-
  on a cold engine, at room temperature.
                                                             sion stroke, align the TDC mark “a” on the
• When the valve clearance is to be measured or
                                                             pickup rotor with the crankcase mating sur-
  adjusted, the piston must be at top dead center
                                                             face “b”.
  (TDC) on the compression stroke.
                                                          NOTE:
1. Remove:                                                TDC on the compression stroke can be found
 • Rider seat                                             when the camshaft lobes are turned away from
 • Right side cowling                                     each other.
   Refer to “GENERAL CHASSIS” on page 4-1.
 • Fuel tank
   Refer to “FUEL TANK” on page 7-1.
 • T-bar
   Refer to “GENERAL CHASSIS” on page 4-1.
 • Air cut-off valve                                               b
   Refer to “AIR INDUCTION SYSTEM” on
   page 7-11.                                                      a
 • Thermostat inlet pipe 1
   Refer to “THERMOSTAT” on page 6-6.
2. Disconnect:
 • Throttle cables
3. Remove:                                                                 IN              EX
 • Spark plugs
 • Cylinder head cover
 • Cylinder head cover gasket
   Refer to “CAMSHAFTS” on page 5-12.
4. Remove:
 • Hose holder “1”
 • Lead holders “2”
 • Pickup rotor cover “3”
                                                          c. Measure the valve clearance with a thickness
                                                             gauge “1”.

           1                                                   1

           3                        2

5. Measure:
 • Valve clearance
   Out of specification → Adjust.                         NOTE:
                                                          • If the valve clearance is incorrect, record the
                                                            measured reading.

                                                    3-6
                                                                                                  ENGINE

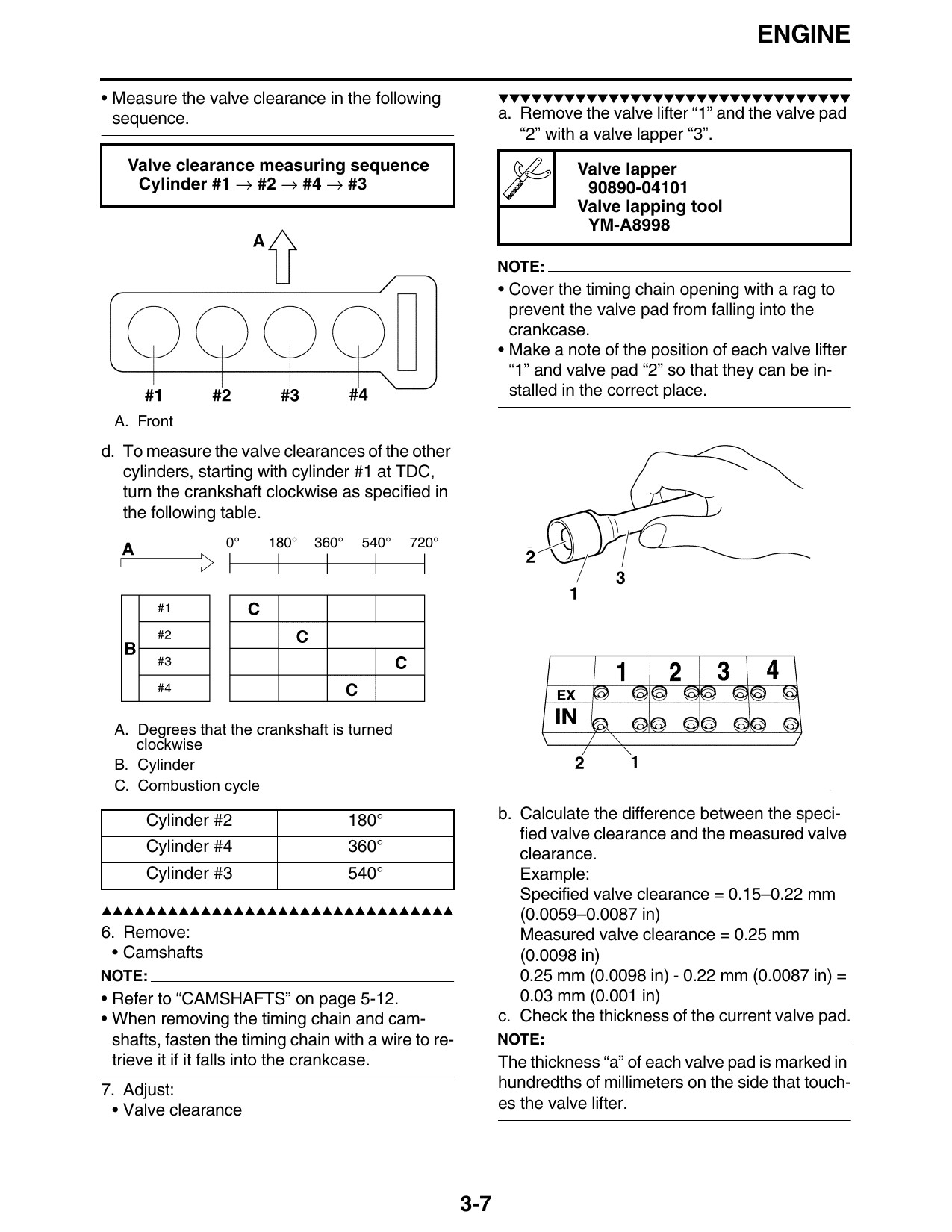

• Measure the valve clearance in the following               ▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
  sequence.                                                  a. Remove the valve lifter “1” and the valve pad
                                                                “2” with a valve lapper “3”.
   Valve clearance measuring sequence                                   Valve lapper
    Cylinder #1 → #2 → #4 → #3                                           90890-04101
                                                                        Valve lapping tool
                                                                         YM-A8998

                                                             NOTE:
                                                             • Cover the timing chain opening with a rag to
                                                               prevent the valve pad from falling into the
                                                               crankcase.
                                                             • Make a note of the position of each valve lifter
                                                               “1” and valve pad “2” so that they can be in-
                                                               stalled in the correct place.
 A. Front
d. To measure the valve clearances of the other
   cylinders, starting with cylinder #1 at TDC,
   turn the crankshaft clockwise as specified in
   the following table.

 A. Degrees that the crankshaft is turned
    clockwise
 B. Cylinder
 C. Combustion cycle

      Cylinder #2                   180°                     b. Calculate the difference between the speci-
                                                                fied valve clearance and the measured valve
      Cylinder #4                   360°                        clearance.
      Cylinder #3                   540°                        Example:
                                                                Specified valve clearance = 0.15–0.22 mm
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲                                (0.0059–0.0087 in)
6. Remove:                                                      Measured valve clearance = 0.25 mm
 • Camshafts                                                    (0.0098 in)
NOTE:                                                           0.25 mm (0.0098 in) - 0.22 mm (0.0087 in) =
• Refer to “CAMSHAFTS” on page 5-12.                            0.03 mm (0.001 in)
• When removing the timing chain and cam-                    c. Check the thickness of the current valve pad.
  shafts, fasten the timing chain with a wire to re-         NOTE:
  trieve it if it falls into the crankcase.                  The thickness “a” of each valve pad is marked in
7. Adjust:                                                   hundredths of millimeters on the side that touch-
 • Valve clearance                                           es the valve lifter.
